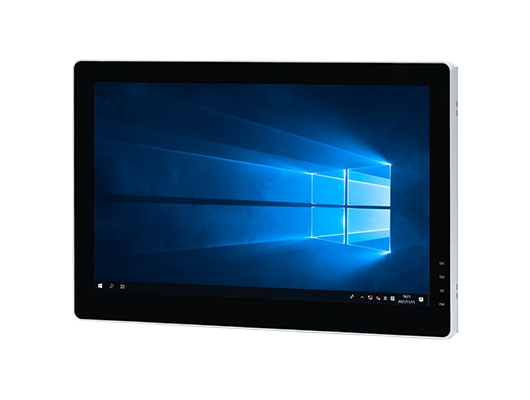

X151 Series
• Intel® Gen 8th Whiskey Lake-U Processor
• 4 x Intel i211-AT GbE LAN
• 4 x USB, 1x RS-232, 1 x DVI-I
• 12.1" industrial-grade LCD screen
• 10-point capacitive touch screen
• Front panel IP 65 protection
  • Intel Gen 8th Whiskey Lake-U Processor
  • 2x DDR4 SO-DIMM(Max.32GB)
  • 1 x DVI-I
  • 4 x Intel i211-AT GbE LAN
  • 4 x USB 3.0, 1 x RS-232
  • Windows 10 64 Bit, Linux
  • Product Details
  • Specification
  • Application
  • Download







规格 Specifications




Specs

Item

  X151 Series

Processor System

CPU

Intel® 8th Gen Whiskey Lake-U Celeron 4205U/i3 -8145U/i5 -8265U Processors

BIOS

AMI 8MB UEFI

Graphics

Intel UHD Graphics for 8th Generation Intel® Processors

Memory

Sockets

Dual channel 260-PIN DDR4  SO-DIMM

Capacity

4GB, Max. 32GB

Display

Size

15.6" TFT LCD

Resolution

1366 (H) x 768(V)

Screen aspect ratio

16:9

BacklightLED
Backlight Life50,000 Hrs

Touch Screen

Screen type

10-point projected capacitive screen

Interface type

USB

Interfaces

LAN

4 x Intel i21 1-AT GbE

USB

4 x USB3.0 、1 x internal USB2.0 TYPE A

Serial port

1 x RS-232

Display

1 x DVI-I

Reset1
Panel Indicator Light
Indicator Light
4 (LAN /Power/USER1/USER2)

Storage

M.2

1 x M/B Key-2280, support SATA SSD

eMMC

Optional, max. 256G

Expansion

Mini-PCIe

1 x full-size mini-PCIe, Support WLAN/WWAN module

USIM

1 x USIM, Support 3G/4G LTE

Watchdog

Output/Interval

Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec

Power Supply

DC Input

24V DC

OS

Microsoft Windows

Windows 10 64Bit, Linux

Physics characteristicMounting

Desktop/Wall Mounting

Dimensions

390 x 245 x 51 mm (LxWxH)

Weight

3.5 Kg

Environment

Operating Temperature

0°C~50°C, airflow 0.7m / s

Storage Temperature

-20°C~60°C

Relative Humidity

95% @ 40°C ( Non-Condensing )

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration,  5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

Front panel protection

IP 65

EMC

CE/FCC Class B

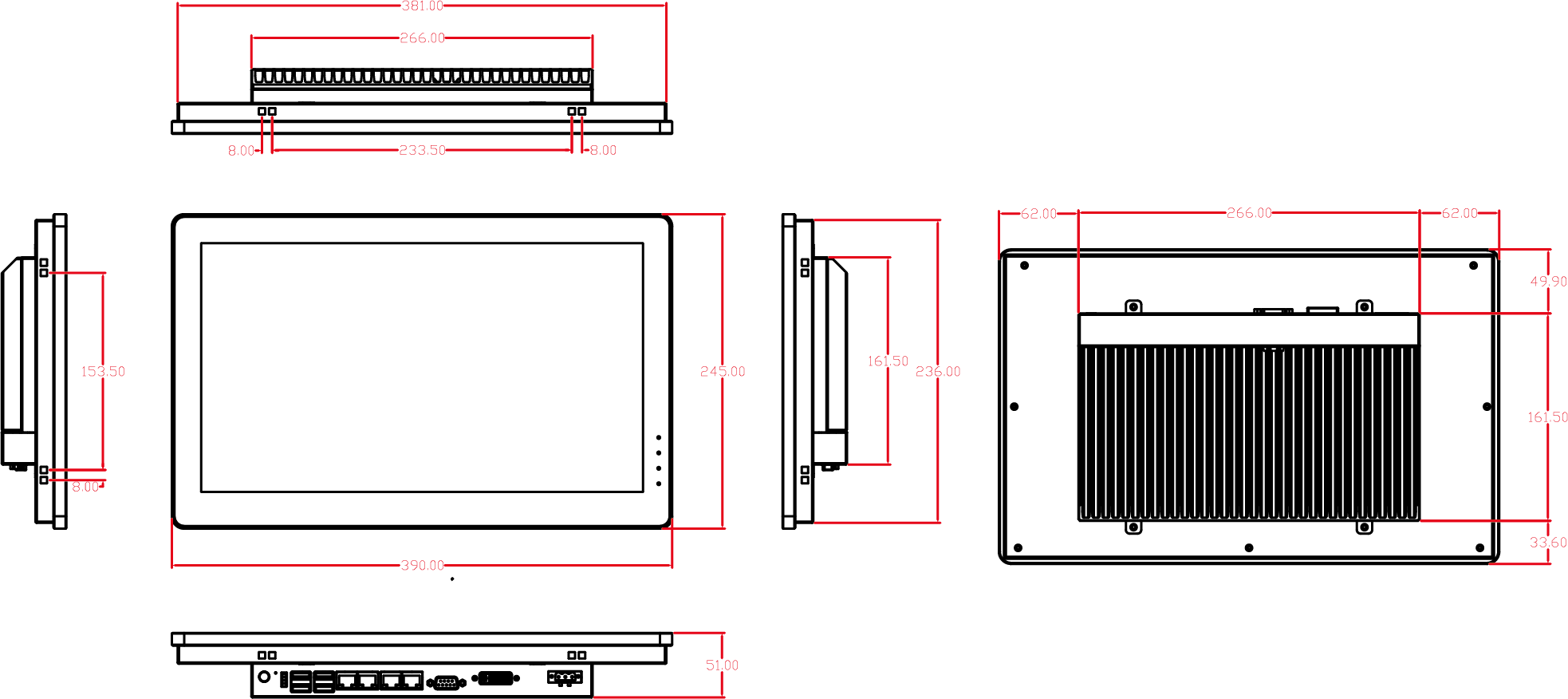

尺寸图 Demensions

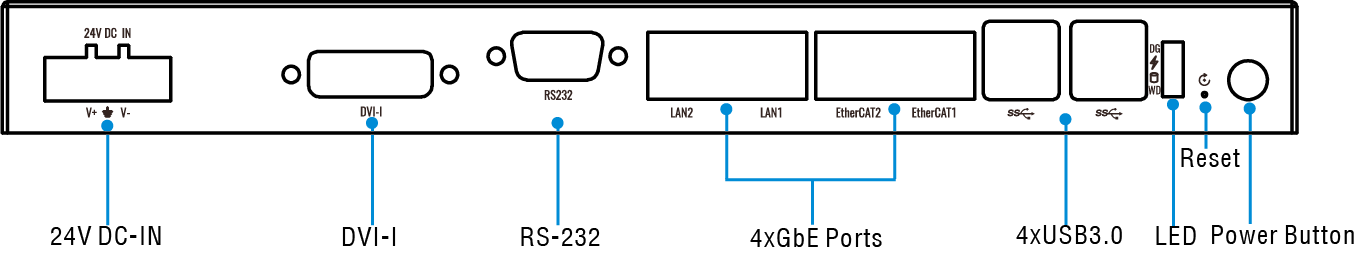

接口图 Interfaces
