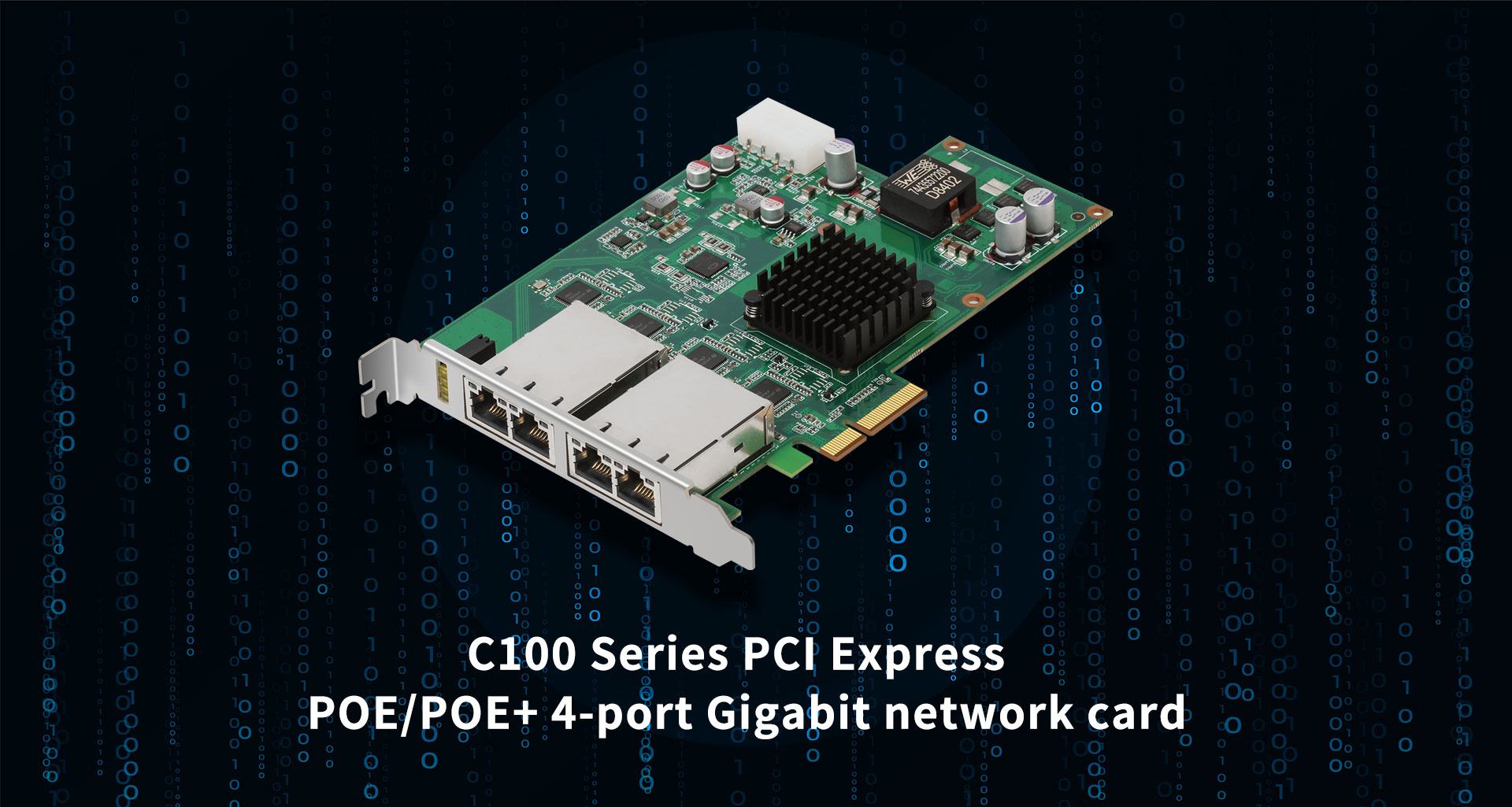

| C100 |
Specs | PCI Express x4 Gen2 |
Ethernet | Fully integrated Gigabit Ethernet media access control (MAC) and physical layer (PHY) interfaces |
Power over Ethernet, compatible with IEEE 802.3af/at |
Chip | Intel i210/i211-AT |
Function | Supports 9KB Jumbo Frames |
PoE power management |
Link Aggregation, IEEE 1588 (Precision Clock Synchronization Protocol Standard) |
Support multi-card multi-camera |
PoE protection |
Power requirement
| Using 4-pin power connector, maximum 100W PoE power supply (+12V@8A)
|
Using PCIe slot, max 20W PoE power supply (+12V@2.1A)
|
| Operation environment | 60W PoE: 0˚C ~ +70˚C (32˚F ~ 150˚F) |
| Humidity: 5%~90% relative humidity, non-condensing |
| Operation system | Windows 7/8/10, Linux |

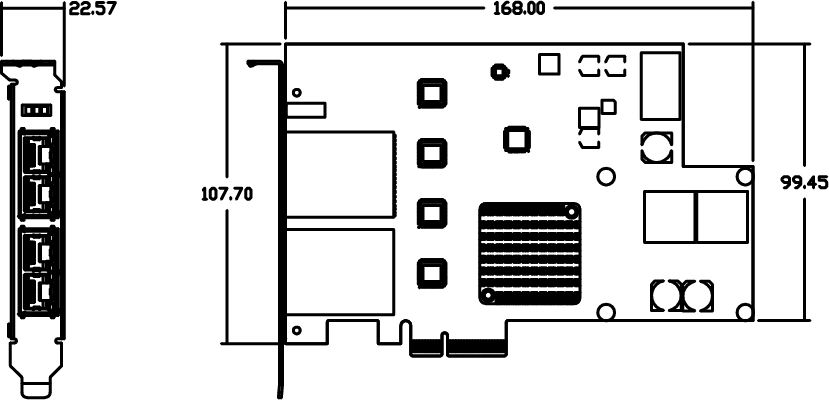

| Size | 168 mm x 112 mm (W x H) |
