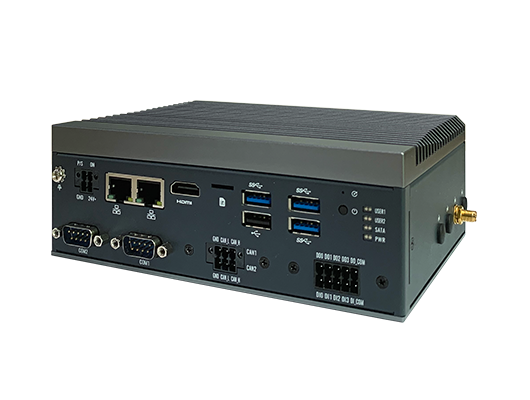

E201 Series
• Intel®Apollo Lake SoC Processor
• 2 x Intel i225-V GbE LAN
• 4 x USB, 2 x COM, 1 x HDMI
• 4 x DIO, 2 x CAN
• Compact mini size

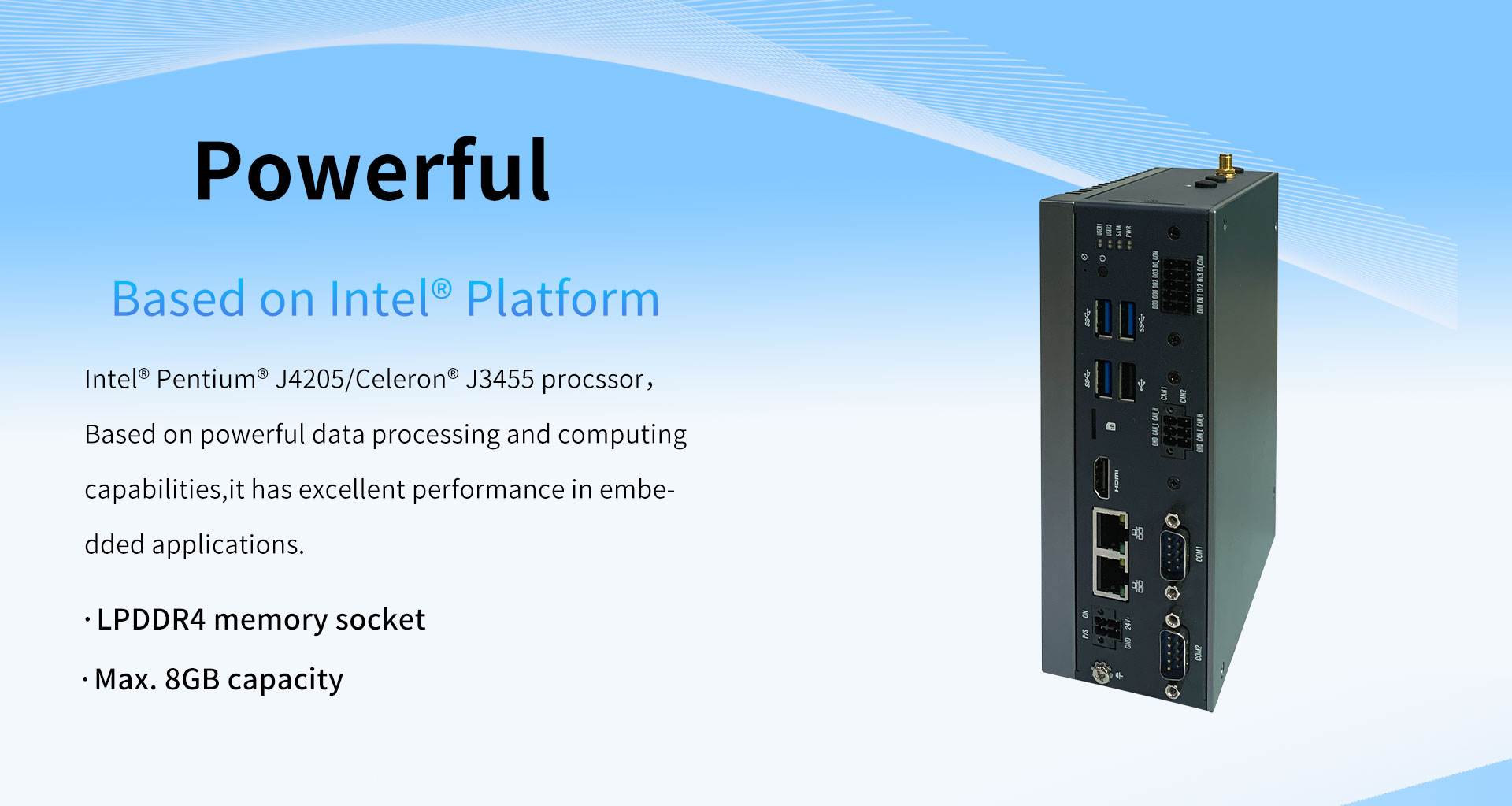

  • Intel Apollo Lake SoC Processor
  • LPDDR4（Max. 8GB）
  • 1 x HDMI
  • 2 x Intel i225-V GbE LAN

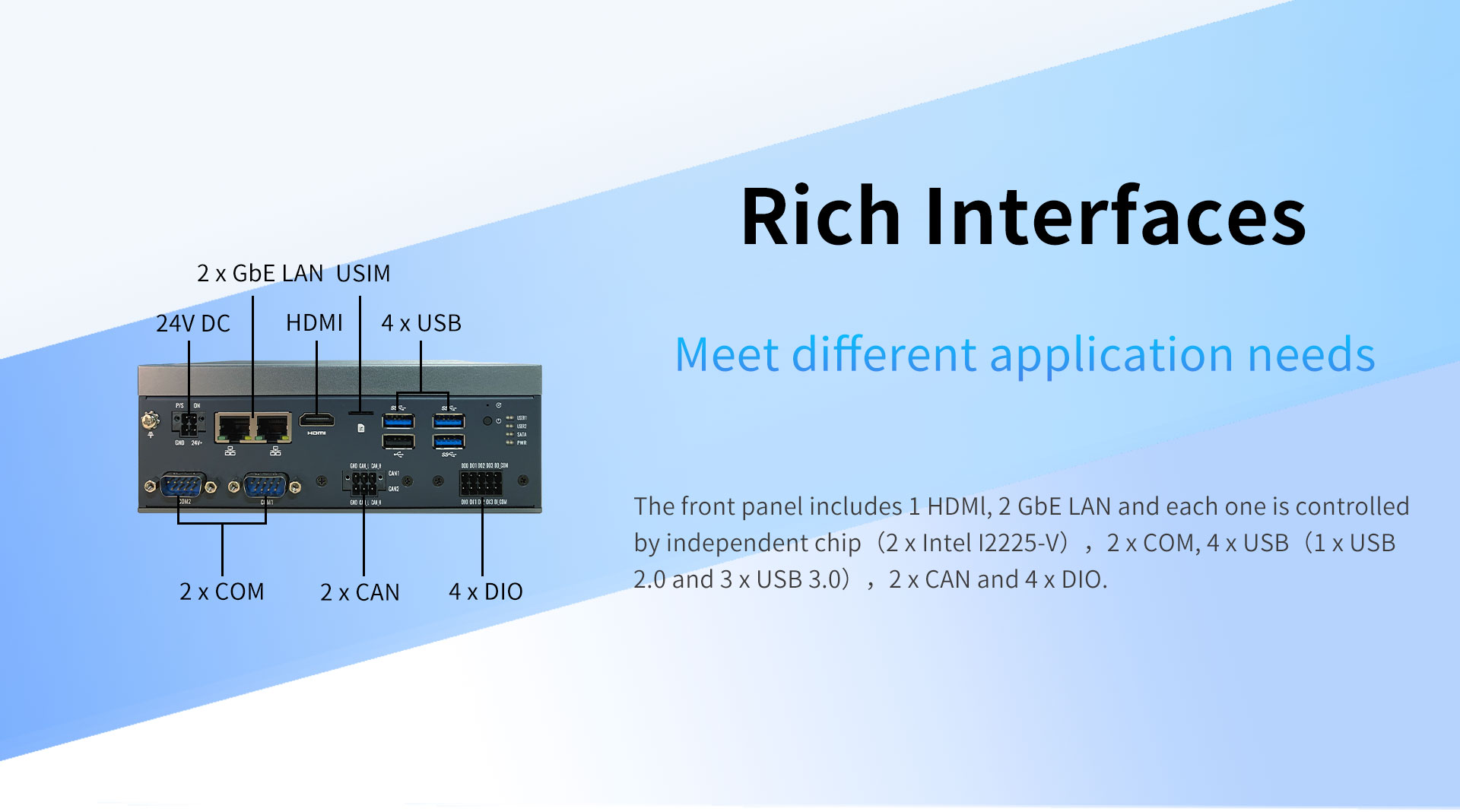

  • 3 x USB 3.0, 1 x USB 2.0 ,1 x RS-232, 1 x RS-485, 2 x CAN, 4 x DIO
  • Windows 10 64 Bit, Linux
  • Product Details
  • Specification
  • Application
  • Download






规格 Specifications


Specs

Item

E201 Series

Processor System

CPU

Intel® 6th/7th/8th/9th Gen Processors with LGA1151

BIOS

AMI EFI BIOS

Memory

Sockets

LPDDR4

Capacity

Max. 8 GB

Display

Controller

Intel Gen9 Graphic engine

HDMI

Max. 3840 x 2160@30Hz

Audio

HAD

1

Ethernet

Controller

2 x Intel I225-V

StorageM.21 x M.2 B/M- Key 2280 support SATA 3.0
MSATA 1(internal interface)
SATA 3.0 1

I/O Interface

USB 3.0

3

USB 2.0

1

COM

2

CAN

2

DIO4 x DI, 4 x DO

USIM

1

Power Supply

DC Input

24V DC

OS

Microsoft Windows

Windows 10 64 Bit

Linux

Yes

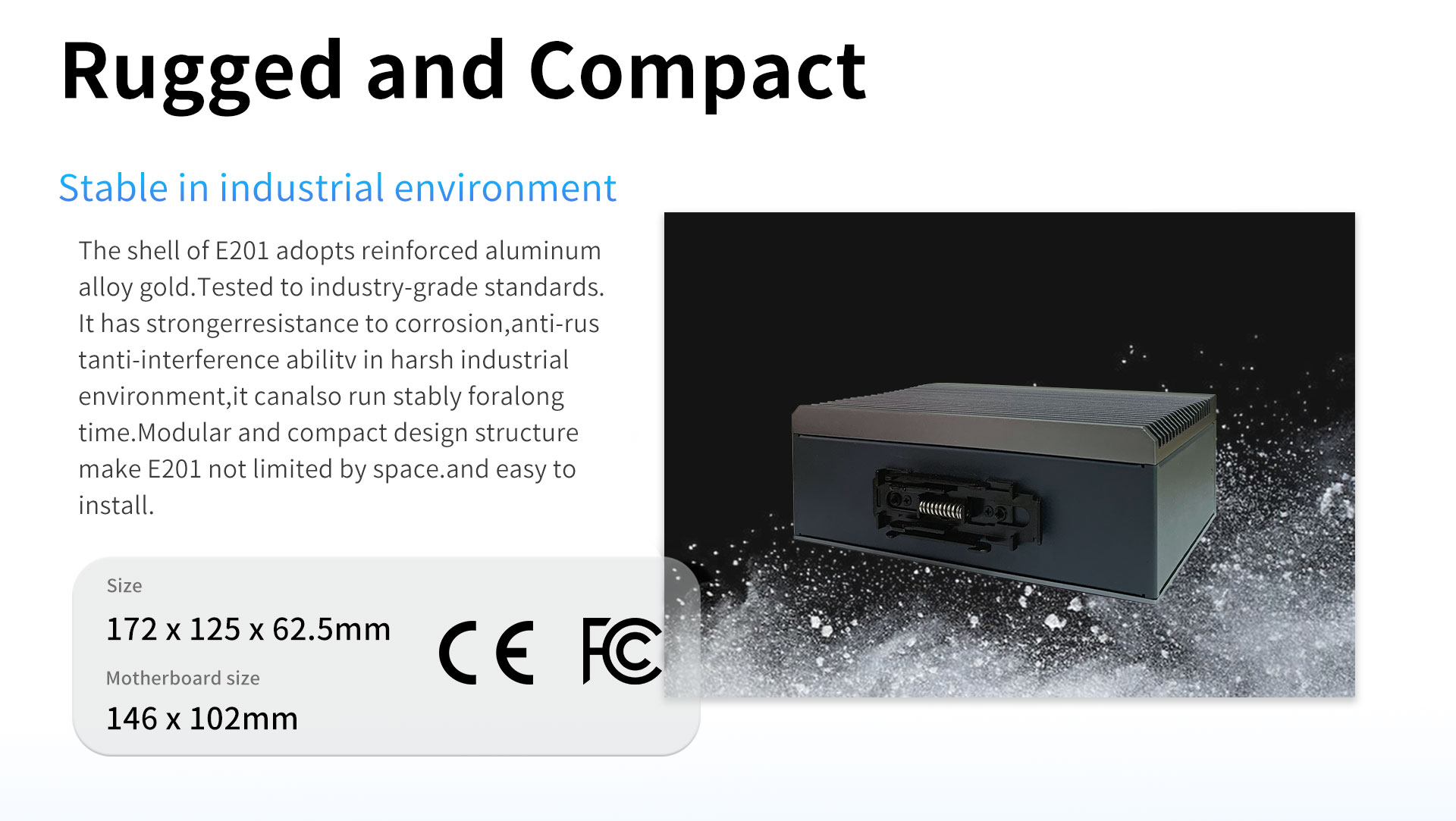

SizeMotherboard size

146 x 102 mm (LxWxH)

Machine demension

172 x 125 x 62.5 mm

Environment

Operating Temperature

0°C~60°C, airflow 0.7m / s

Storage Temperature

-40°C~85°C

Relative Humidity

5~95% @ 40°C ( Non-Condensing )

EMC

CE/FCC





尺寸图 Demensions







  • E201 Series Embedded Industrial Computer Datasheet
    Size：310KB
    Download
