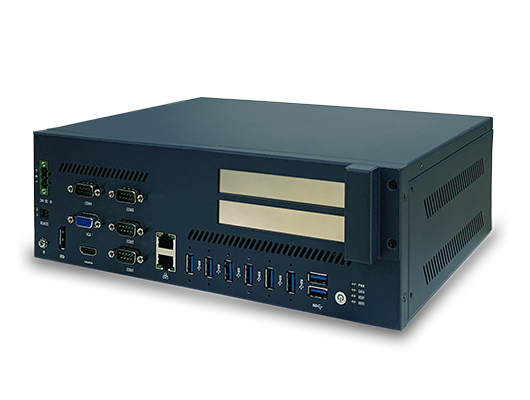

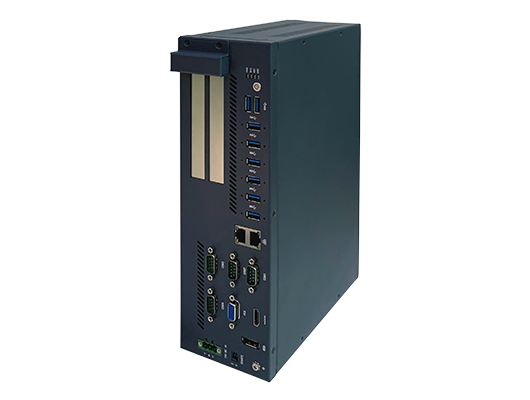

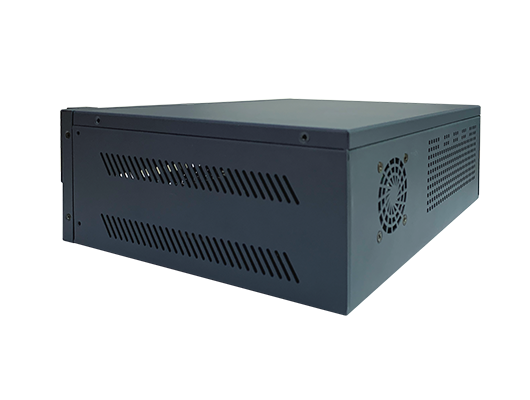

E800 Series
• Intel® Gen10th Comet Lake-S processor

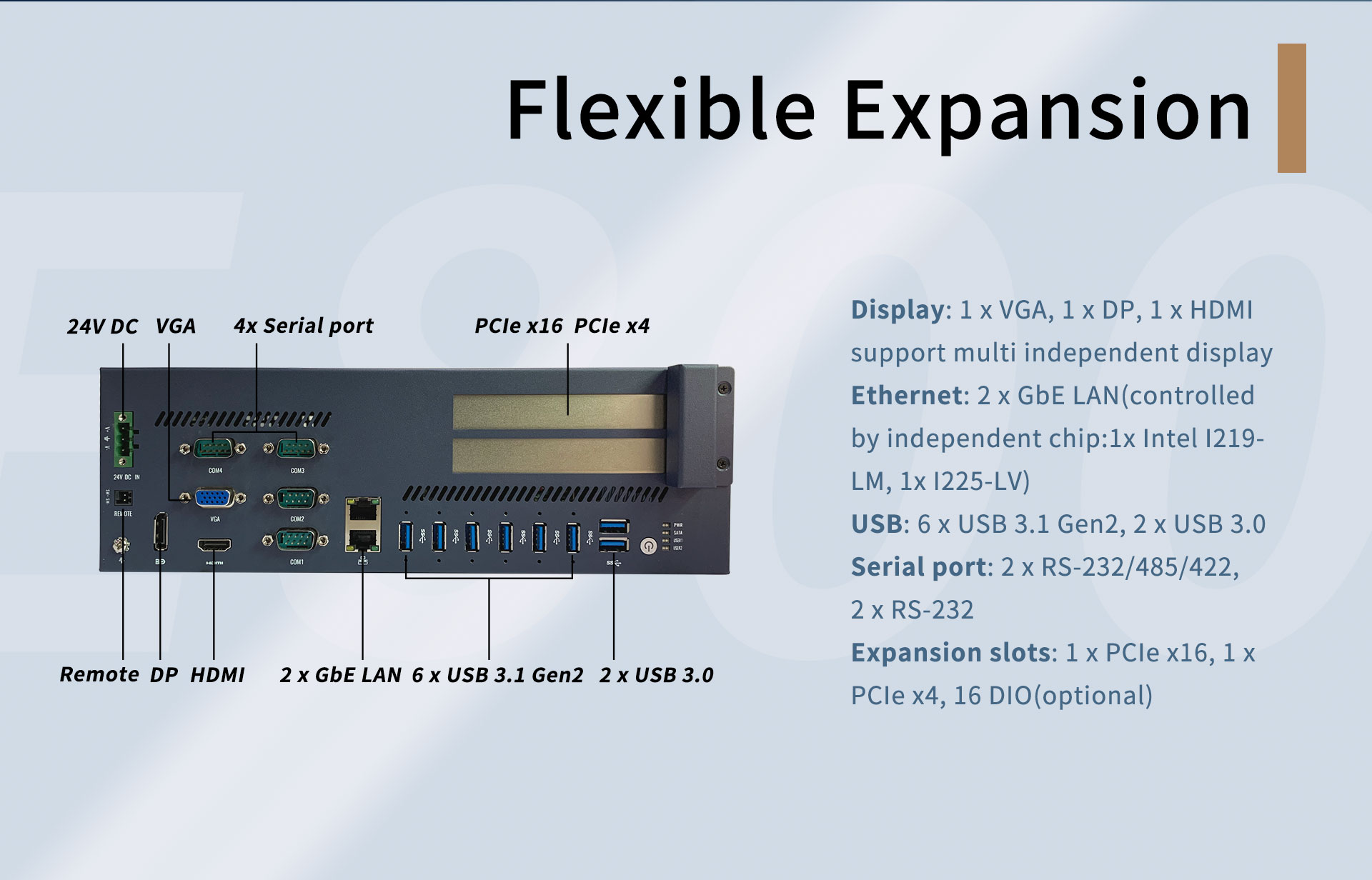

• 1 DP, 1 HDMI and 1 VGA
• 2 GbE LANs(1 x Intel i219-LM,1 x Intel i225-LV)
• 4x serial port,8 x USB 3.0
• 16 DIO(optional)
• 1PCIe Gen3 x16 Slot, 1PCIe Gen2 x4 Slot

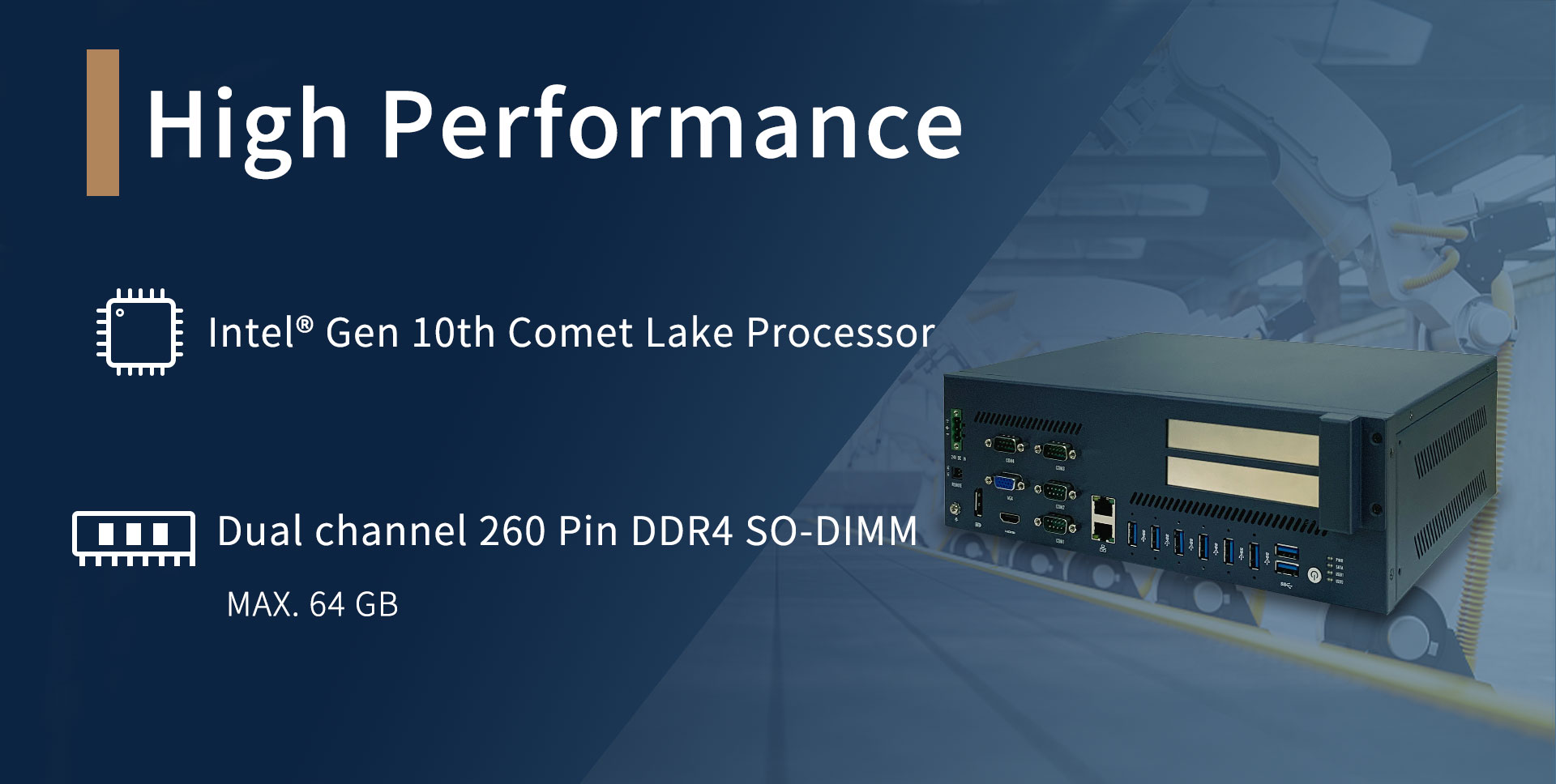

  • Intel Gen 10th Comet Lake Processor
  • 2x DDR4 SO-DIMM(Max.64GB)
  • 1 x HDMI, 1 x DP, 1 x VGA
  • 2(1 x Intel i219-LM, 1 x Intel i225-LV)
  • 8 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232, 16 x DIO(optional)
  • Windows 10 64 Bit, Linux
  • Product Details
  • Specification
  • Application
  • Download






规格 Specifications


Specs

Item

E800 Series

Processor system

CPU

Intel® Gen10th Comet Lake-S processor

TDP

65W MAX

Socket

LGA1200

Chipset

H420E/Q470

BIOS

AMI 128Mbit SPI Flash

Memory

Socket

2x 260PIN DDR4 SO-DIMM

Capacity

Max. 64GB

Ethernet

Tranmission rate

10/100/1000 Mbps

Controller

GbE LAN1: Intel I219-LM, GbE LAN2 Intel I225-LV

Connector
2 x RJ-45
SATAMax. tranmission rate600 MB/s
Channel
2
RAID0,1,5(optional,only Q470)

I/O Interfaces

DP

1, resolution up to 4096 x 2304 @ 60 Hz

HDMI1 HDMI1.4, resolution up to 4096x2160@30Hz
VGA1, resolution up to 1920 x 1200@60Hz
Ethernet2
USB
6 x USB3.0 Type A (USB 3.1 Gen 2)PCH Primary, 2 x USB3.0 Type A

Serial port

2 x RS-232/RS-485/RS-422, 2 x RS-232

DIO

16

Internal Interfaces

Serial port

2 x RS-232 PIN Header

SATA

2, support 7PIN +15PIN 2.5 inch HD

USB 2.0
1 x USB2.0 Type A, 1 x USB2.0 PIN Header (9PIN)

Expansion

M.2 E-Key

1 x M.2 2230 support Wi-Fi

M.2 B-Key

1 x M.2 3052 support 4G/5G (USB3.0)

M.2 M-Key1 x M.2 2280 Sata3.0、1 x M.2 2280 NVME(optional,only Q470)
Expansion slotsPCIe x16(Gen3)1
PCIe x4(Gen2)1

Watchdog

Output/Interval

Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec

Power supplyDC input
24V DC IN

Environment

Operating Temperature

0°C~60°C(32 ~ 140 °F)

Non-operating Temperature

-40°C~80°C(-40 ~ 185 °F)

Operating relative humidity

95%@40°C RH (Non-condensing)

Non-operating relative humidity

60°C@95% RH(Non-condensing)

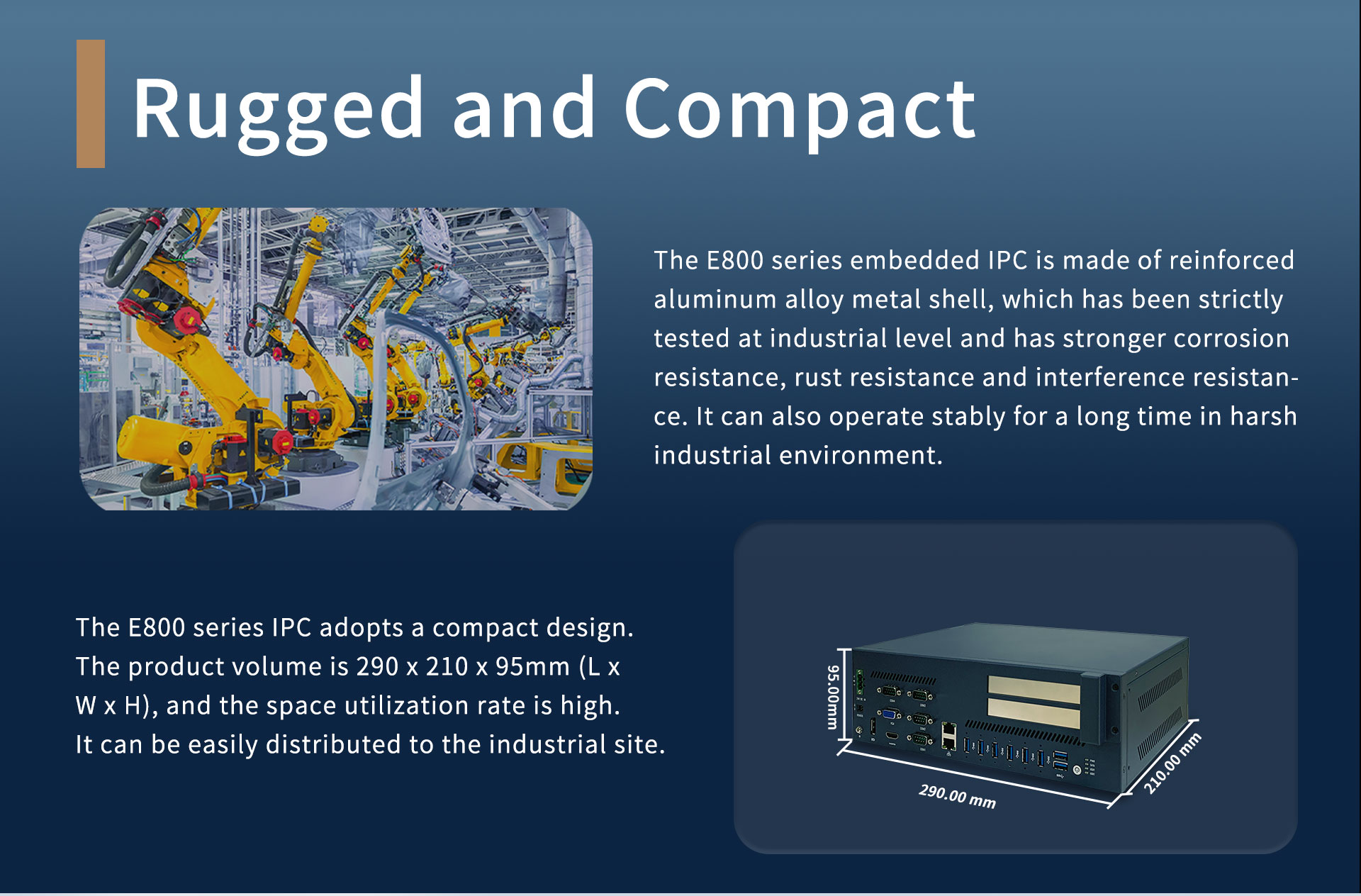

Physical characteristicsSize (Lx W x H)290x210x95mm




尺寸图 Demensions

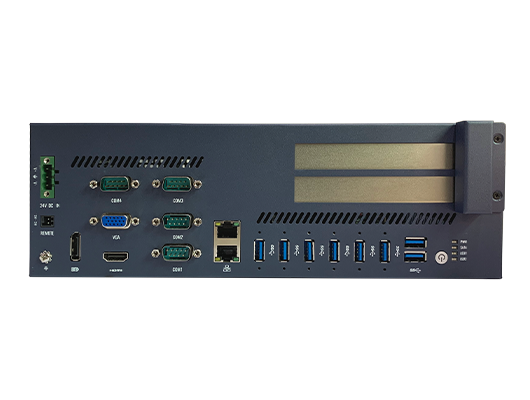

接口图 Interfaces




  • E800 Series Industrial PC Datasheet
    Size:703KB
    Download
