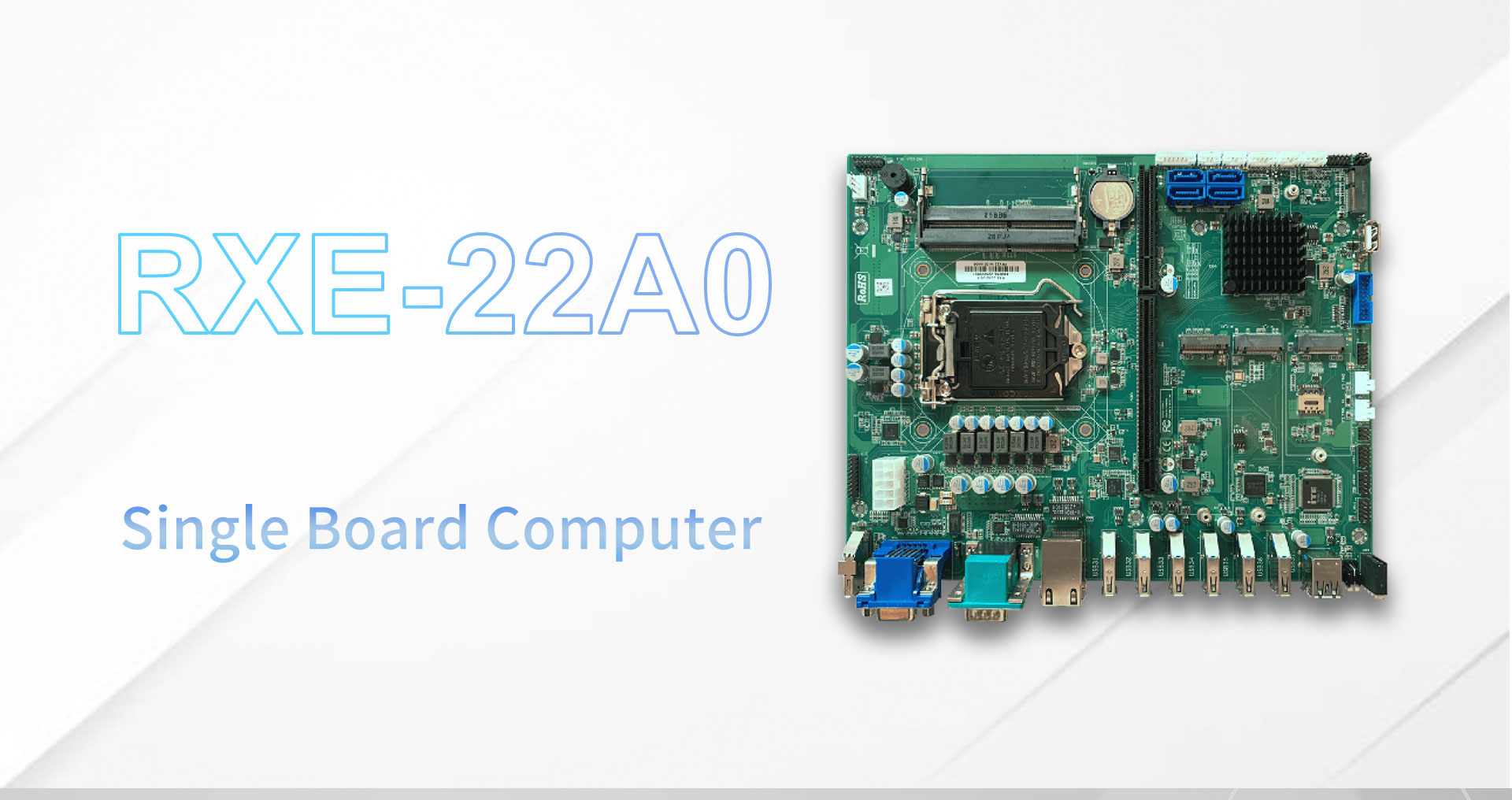

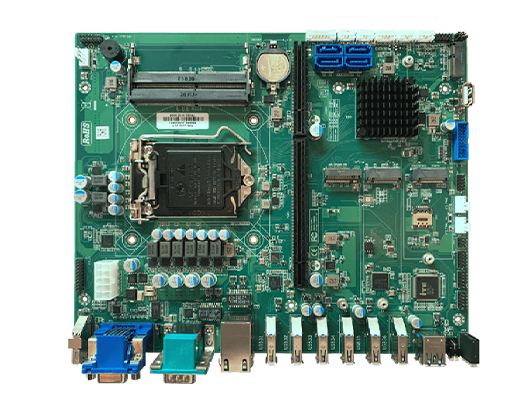

RXE-22A0 Series

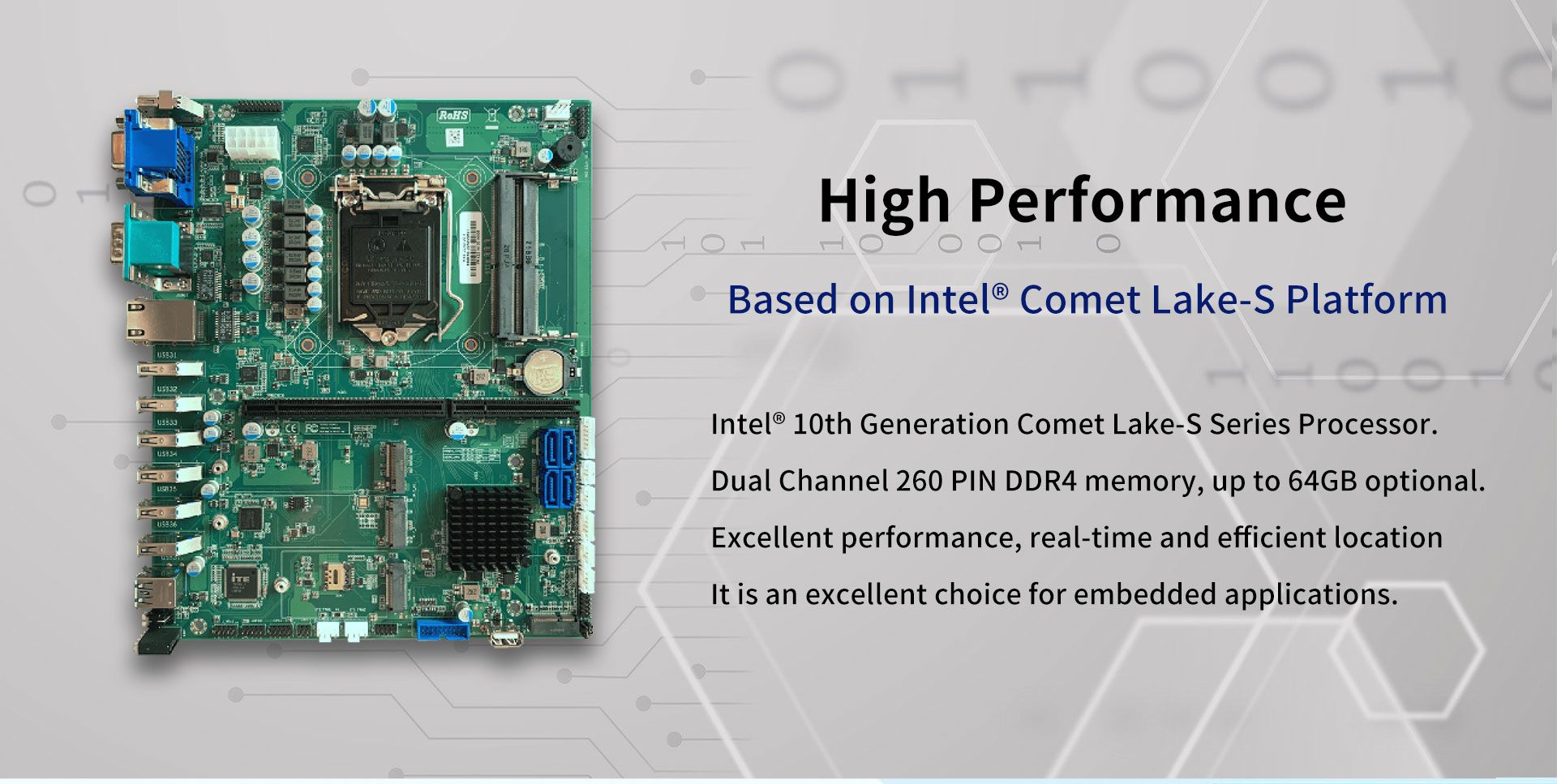

• Intel® Gen 10th Comet Lake-S Processors
• 1 DP, 1 HDMI, 1 x VGA
• 2 GbE LAN
• 8 x USB 3.0
• 2 x RS-232/422/485
• 1PCIe Gen3 x16 Slot, 1PCIe Gen2 x4 Slot
  • Intel Gen 10th Comet Lake SoC Processor
  • 2x DDR4 SO-DIMM(Max.64GB)
  • 1 x HDMI, 1 x DP, 1 x VGA
  • 2 x GbE LAN
  • 8 x USB 3.0, 2 x RS-232/422/485, 16 x DIO
  • Windows 10/Linux
  • Product Details
  • Specification
  • Application
  • Download






规格 Specifications


Item

Sub-Item

Description

Processor System

CPU

Intel Comet Lake-S

TDP

65W MAX

Socket

Chipset

BIOS

AMI 128 Mbit SPI Flash

Memory

Technology

Dual channel DDR4

Capacity

64GB

Socket2 x 260 PIN SO-DIMM
Ethernet
Interface10/100/1000 Mbps
ControllerGbE LAN1: Intel I219-LM, GbE LAN2 Intel I225-LV
Connector2 x RJ-45
SATAMax Data Transfer600 MB/s
Channel2
RAID
0,1,5(Option,only Q470)

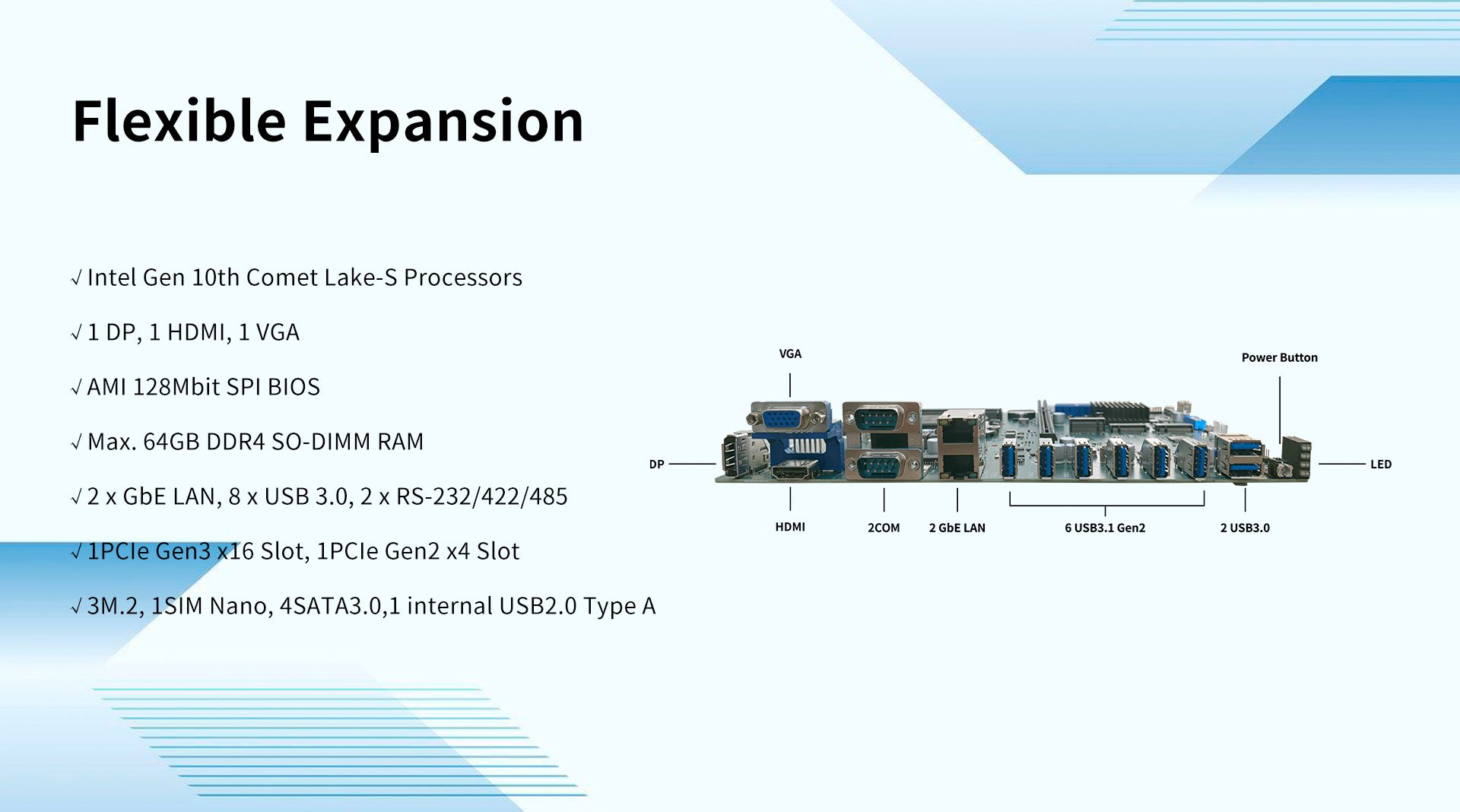

Rear I/O

DP

1(Resolution up to 4096 x 2304 @ 60 Hz)

HDMI1 HDMI1.4 up to 4096x2160@30Hz
VGA1 Max Resolution up to 1920 x 1200@60Hz
Ethernet
2
Serial port2*RS-232/RS-485/RS-422/2*RS-232
USB6 x USB3.0 Type A (USB 3.1 Gen 2)PCH Primary
2 x USB3.0 Type A
DIO16xDI, 16 DO

Internal Connectors

Serial

2*RS-232 PIN Header

USB2.0

1 x USB2.0 Type A、 1 x USB2.0 PIN Header (9PIN)

SATA

2, Support 7PIN +15PIN 2.5 Inch HD

ExpansionM.2 E-Key1 x M.2 E-Key 2230 support Wifi
M.2 B-Key1 x M.2 B-Key 3052 support 4G/5G
M.2 M-Key1 x M.2 B/M-Key 2280 support SSD(PCIe x4)
Expansion slotPCIe x16(Gen3)
1
PCIe x4(Gen2)1
Watchdog TimerOutputSystem reset
IntervalProgrammable 1 ~ 255 sec

OS

OS

Windows 10 /Linux

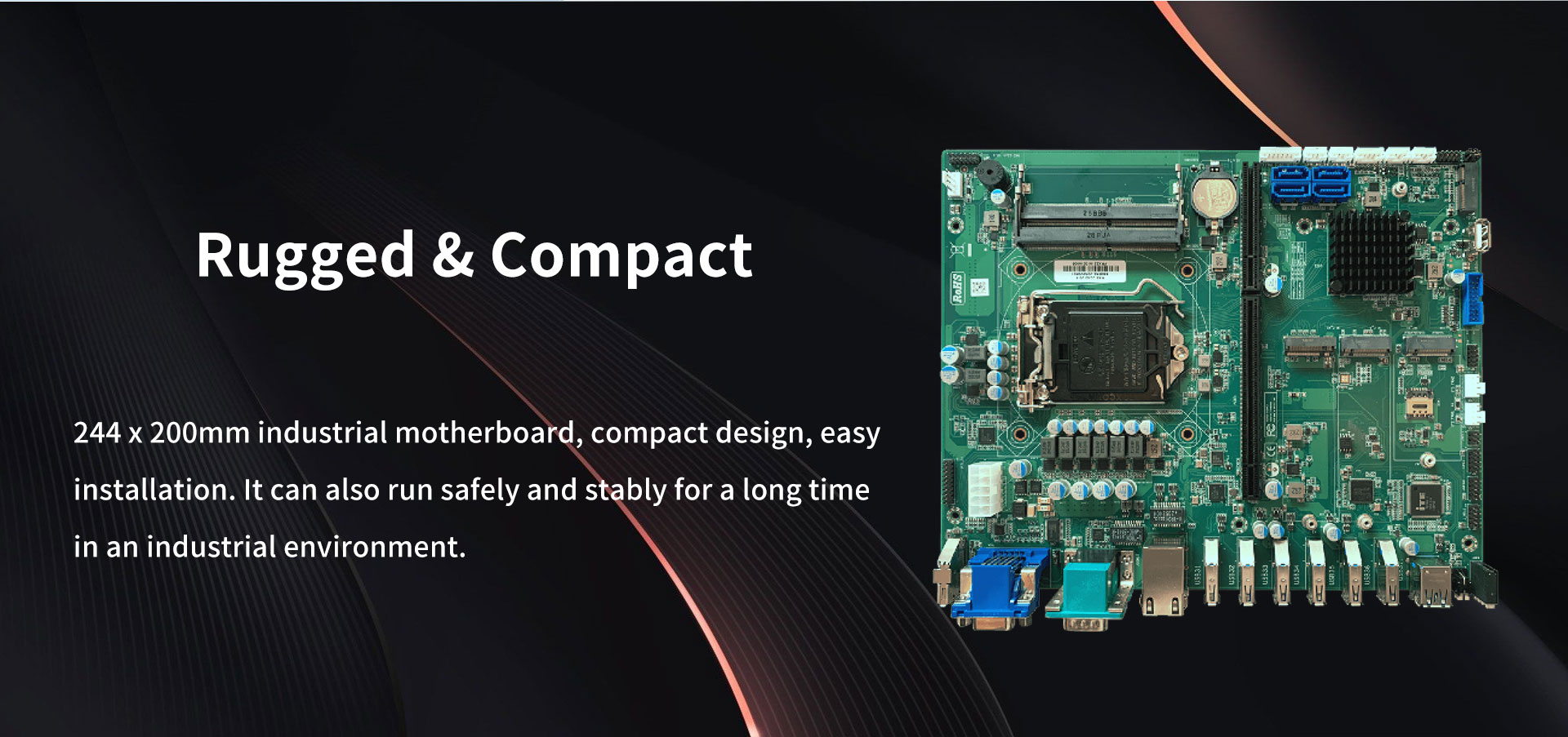

Physical charateristicDimension244 x 200 mm
Power requirmentTest EnvironmentIntel Core i7-10700 DDR4 16GB X2

Environment

Temperature

Operating 0 ~ 60 °C (32 ~ 140 °F)

Non-Operating -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating 40 °C @ 95% RH Non-condensing

Non-Operating 60 °C @ 95% RH Non-condensing
