Specifications
Specs | Item | E700 |
Processor System | CPU | Intel Alder Lake-P platform CPU(i3-1220P/i7-1270P) |
| TDP | 45W MAX | |
| BIOS | AMI 128Mbit SPI Flash | |
Memory | Technology | Dual channel DDR4 SO-DIMM 4800MT/s |
Capacity | Max. 64GB | |
| Graphics | Controller | Intel® Iris Xe Graphics architecture with up to 96 execution units(EU) |
| Graphic Features | 8K60 12b 4:2:0 HEVC/VP9/SCC, 8K30 10b 4:2:0 AV1, 5K60 10b 4:4:4 HEVC/VP9/SCC, 4K60 8b 4:2:0 AVC | |
External IO | DP | 1 |
HDMI | 1 x HDMI 2.0b up to 4096 x 2304 x 24 bpp @60 Hz | |
| VGA | 1 x VGA, max. 1920 x 1080@60Hz | |
| Audio | Realtek ALC662, high definition audio. Line-out and Mic-in | |
Ethernet | 2 x Intel i226-V GbE LAN | |
Serial Ports | 3 x RS-485, 1 x RS-232/422/485 | |
USB | 6 x USB3.0 | |
| DIO | 32 DI, 32 DO | |
Expansion | M.2 E-Key | 1 x M.2 E-Key 2230 supports WiFi |
| M.2 B-Key | 1 x M.2 B-Key 3052 supports 4G/5G | |
Storage | M.2 | 1 x M.2 B/M-Key 2280 SATA 3.0 support SSD, >1TB |
SATA3.0 | 1 | |
SIM | 1 x SIM | |
| Power Requirement | Supply voltage | 9~36V DC IN |
OS | Operation system | Windows 10 64Bit, Linux |
Physical Characteristics | Construction | Aluminum alloy |
Mounting | Wall Mounting | |
Dimensions | 180x165x67 mm(LxWxH) | |
| Others | Watchdog | 65536 level, 0~65535 sec |
| TPM | TPM 2.0 | |
Environment | Operating Temperature | 0°C~50°C |
| Storage Temperature | -40°C~85°C | |
Relative Humidity | Operating95%@40°C(Non-Condensing), Non-operating 95%@60℃（Non-Condensing） | |
EMC | CE, FCC |

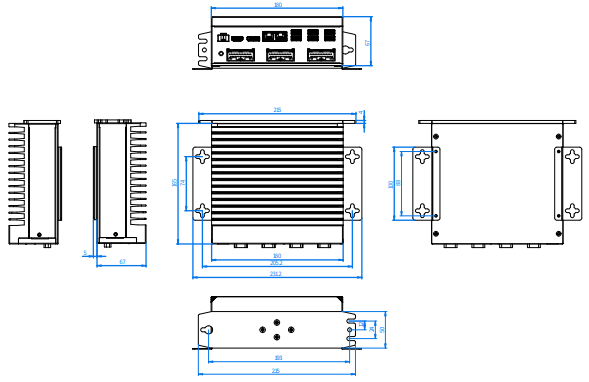

尺寸图 Dimensions

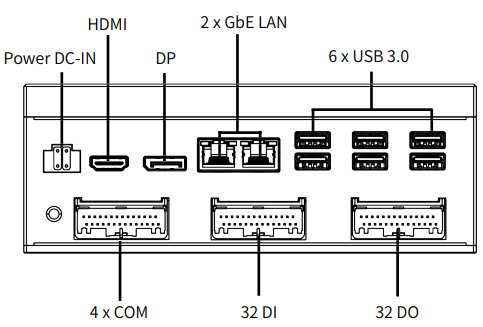

接口图 Interfaces
