RXE-5100 Series
• Intel® Apollo Lake SoC Processor
• 2 x DP, 1 x VGA
• 4 GbE LAN（3 x Intel i211/i210-AT, 1 x Intel i219-LM）
• 1 x RS232，4 x USB
• 1 x PCIe x2, 1 x PCIe x4
  • Intel Apollo Lake SoC Processor
  • 2x DDR4 SO-DIMM(Max.32GB)
  • 2 x DP(4K2K resolution)、1 x VGA. Support DP+DP/DP+VGA dual independent display
  • 4(3 x Intel i211/i210-AT GbE LAN,1 x Intel i219-LM GbE LAN)
  • 2 x USB 3.1 Gen 2, 2 x USB 3.1 Gen 1, 1 x RS-232
  • Windows 10/Linux
  • Product Details
  • Specification
  • Application
  • Download







规格 Specifications


Item

Sub-Item

Description

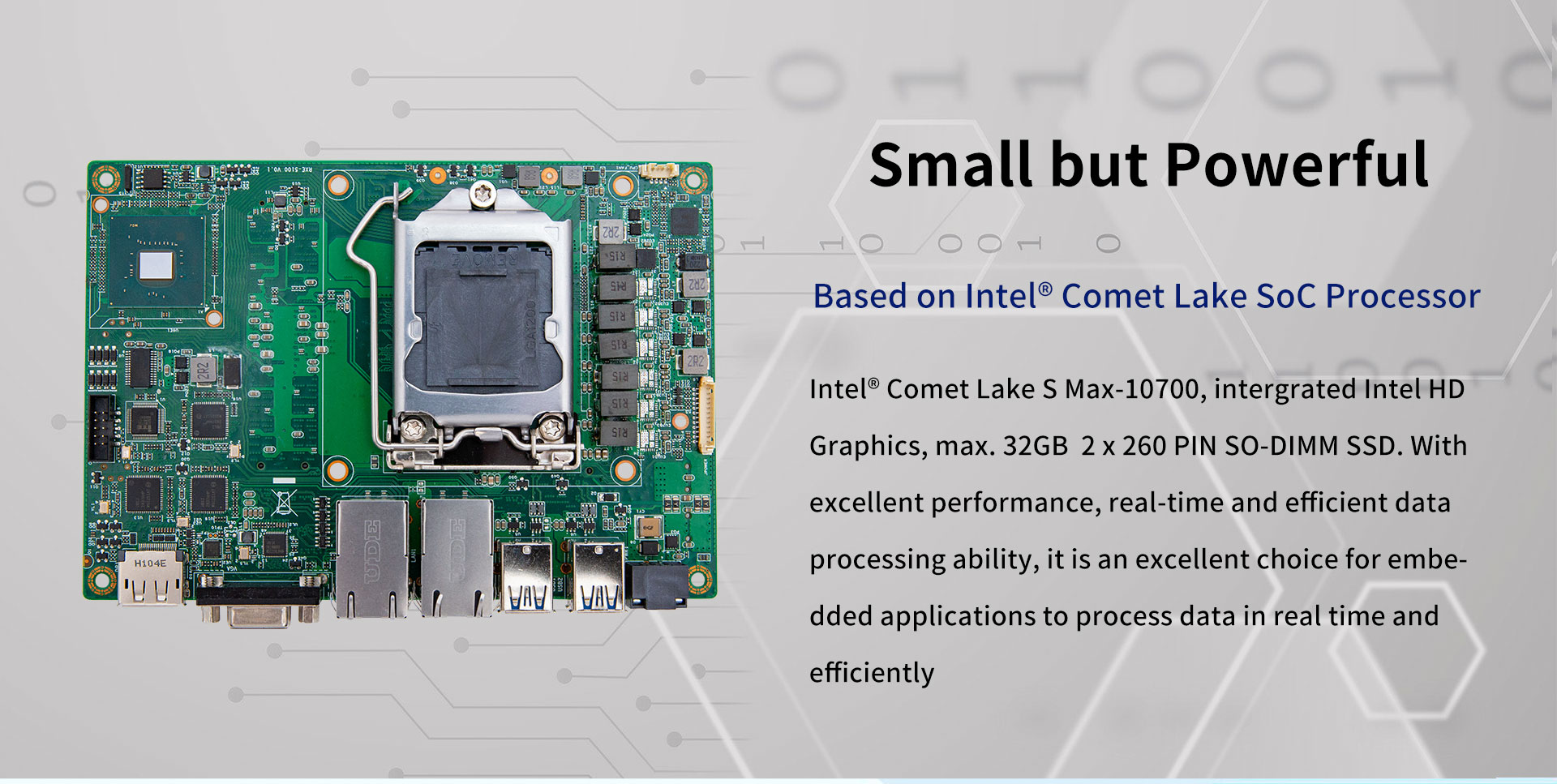

Processor System

CPU

Intel Comet Lake-S Max i7-10700

TDP

MAX. 65W

BIOS

AMI UEFI BIOS at 64 Mbit SPI

Memory

Technology

Dual Channel (Non-ECC) DDR4 2x260 PIN 2400/2666/2933

Capacity

32 GB

Graphics

Controller

Intel HD Graphics

VRAM
1 GB maximum shared memory with 2 GB and above system memory installed

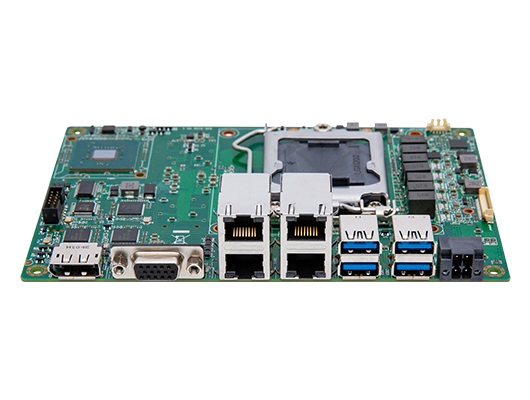

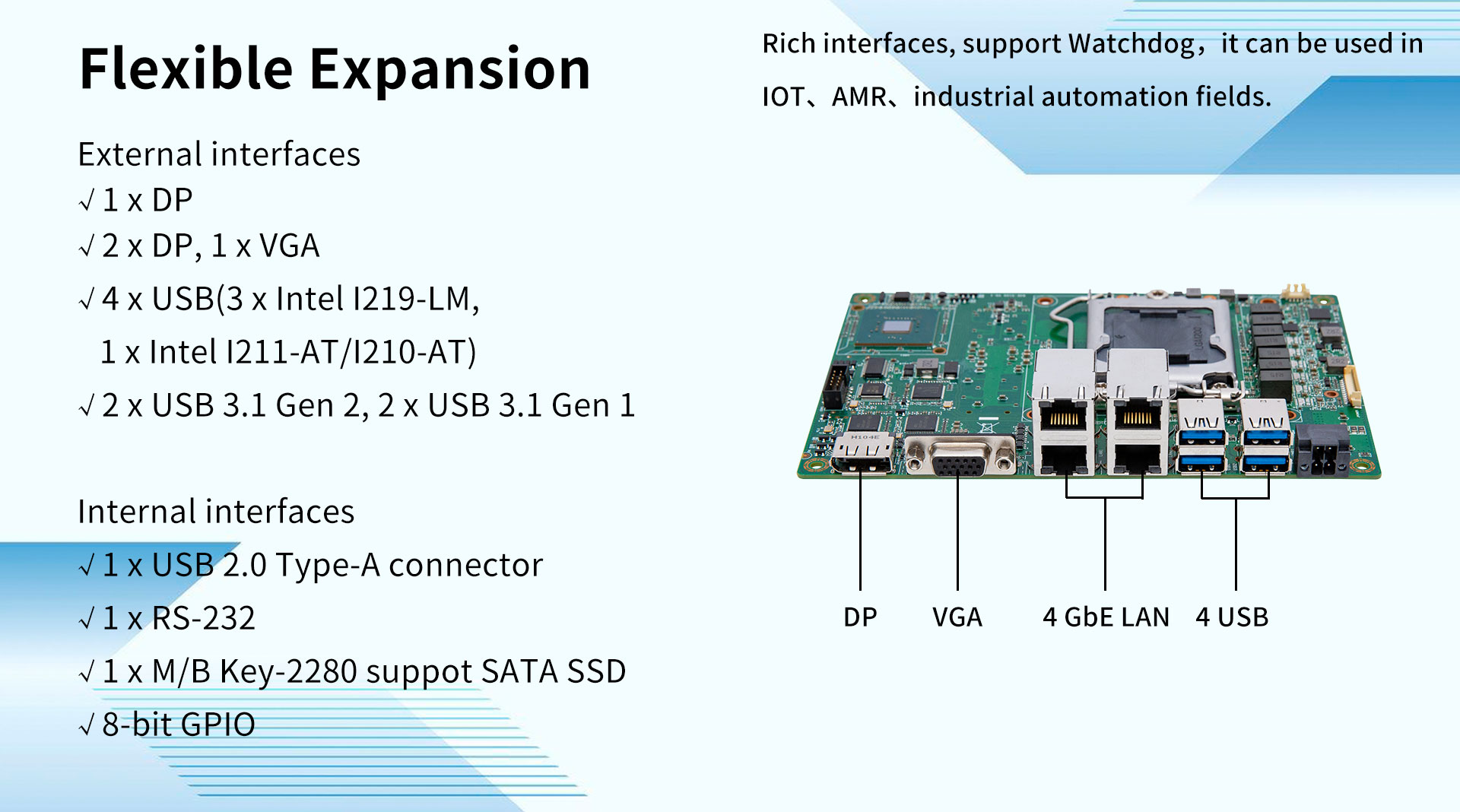

Rear I/O

DP

1 (Resolution up to 4096 x 2304 @ 60 Hz)

VGA

1 (Resolution up to 1920 x 1200 @ 60 Hz)

LAN

3 x Intel I211-AT or I210-AT GbE(iBMC supported), 1 x Intel I219-LM GbE

USB2 x USB 3.1 Gen 2, 2 x USB 3.1 Gen 1
Internal Connectors
USB1 x USB 2.0 Type-A connector
COM1 x RS232
M.21

Storage

M.2

2 x M/B Key 2280，support SATA SSD

Expansion

USB3.0/PCIE x2

1

PCIe x4(Gen3)

1

+12V

1

DP++X1

1

OS

OS

Windows 10 /Linux

Environment

Temperature

Operating 0 ~ 60 °C (32 ~ 140 °F)

Non-Operating -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating 40 °C @ 95% RH Non-condensing

Non-Operating 60 °C @ 95% RH Non-condensing
