IEM-3160 Series

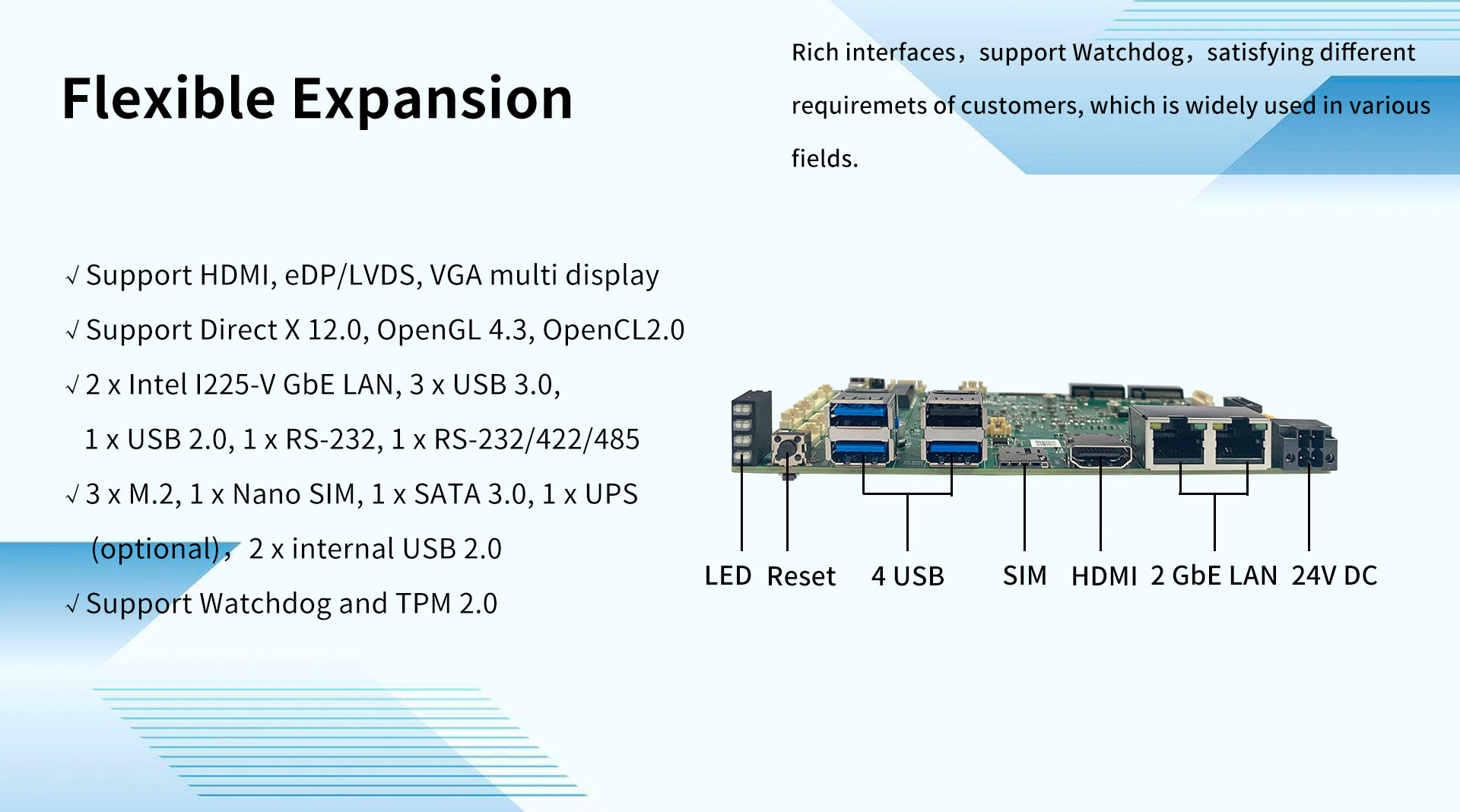

• Intel® Apollo Lake SoC Processor
• Support HDMI, eDP/LVDS和 VGA
• 2 GbE LAN(Intel i225-V)
• 2 x Serial port,4 x USB
• 3 x M.2, 1 x SATA3.0, 1 x UPS(optional)
  • Intel Apollo Lake SoC Processor
  • LPDDR4(Max. 8GB)
  • Support HDMI, eDP/LVDS, VGA
  • 2 x Intel i225-V GbE LAN
  • 3 x USB 3.0,1 x USB 2.0,1 x RS-232,1 x RS-232/422/485
  • Windows 10/Linux
  • Product Details
  • Specification
  • Application
  • Download






规格 Specifications


Item

Sub-Item

Description

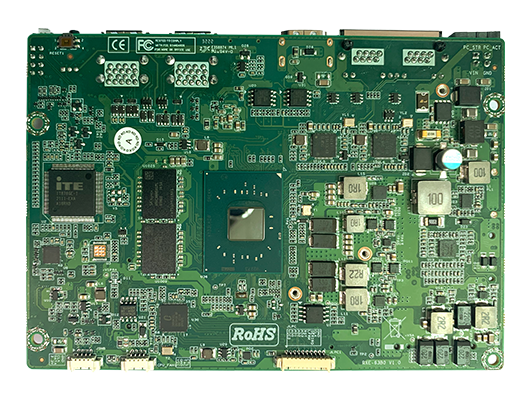

Processor System

CPU

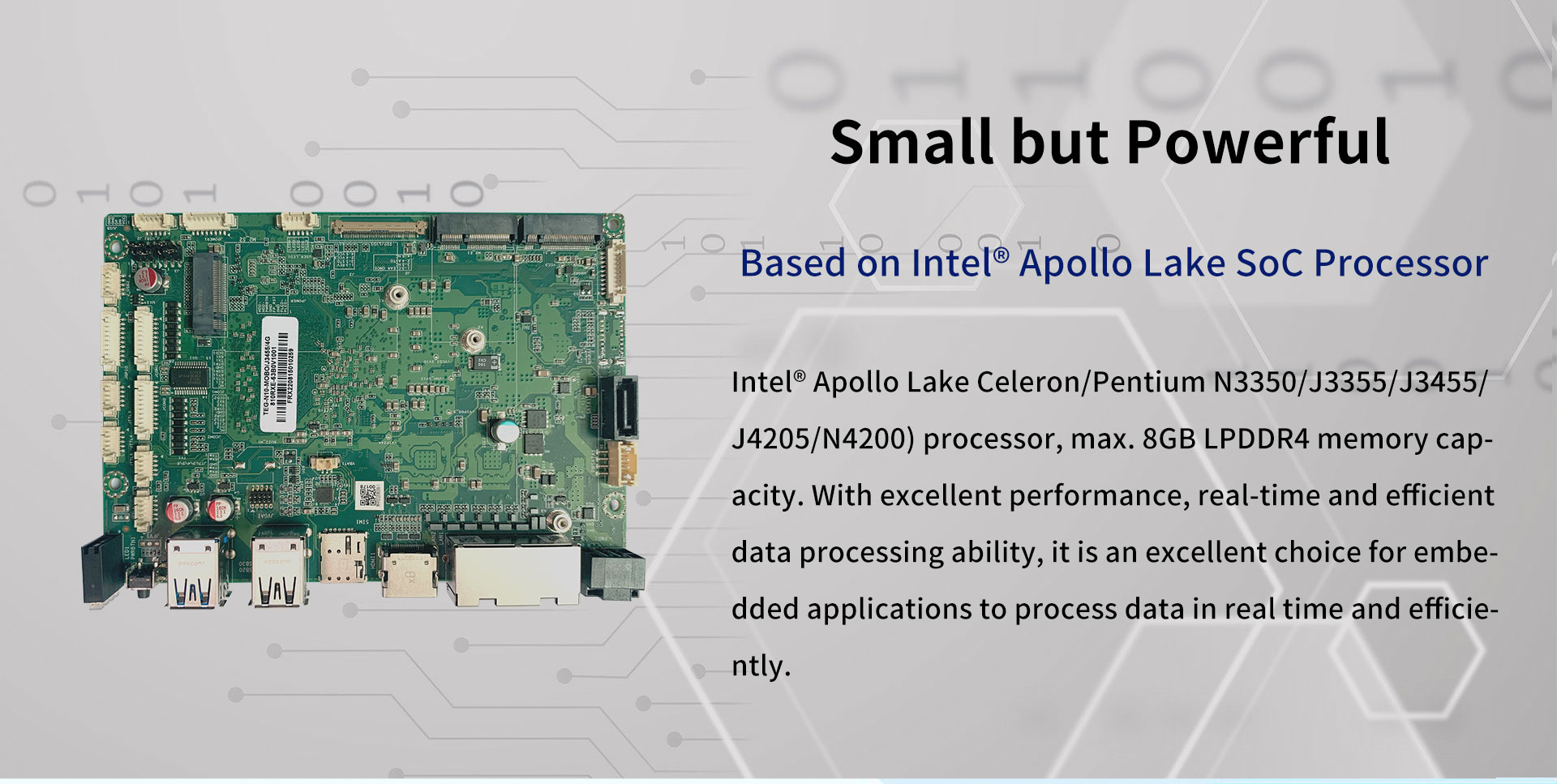

Intel Apollo Lake Celeron/Pentium N3350/N4200/J3355/J3455/J4205

TDP

10W MAX

BIOS

AMI UEFI BIOS at 64 Mbit

Memory

Technology

LPDDR4

Capacity

8GB

Graphics

Controller

Intel Gen9 Graphic Engine

Display

HDMI

1 (Resolution up to 3840 x 2160 @ 30 Hz)

LCD1

1 x eDP/LVDS (Resolution up to 1920 x 1200 @ 60 Hz)

VGA

1 (Resolution up to 1920 x 1200 @ 60 Hz)

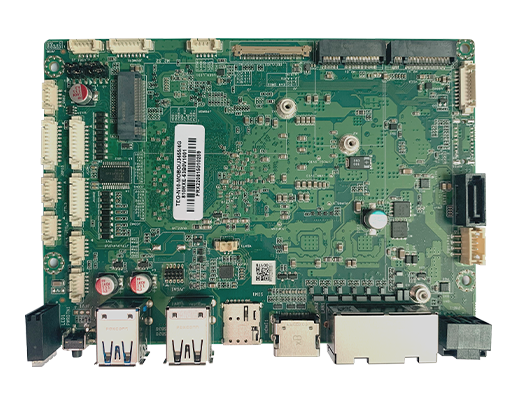

External I/O

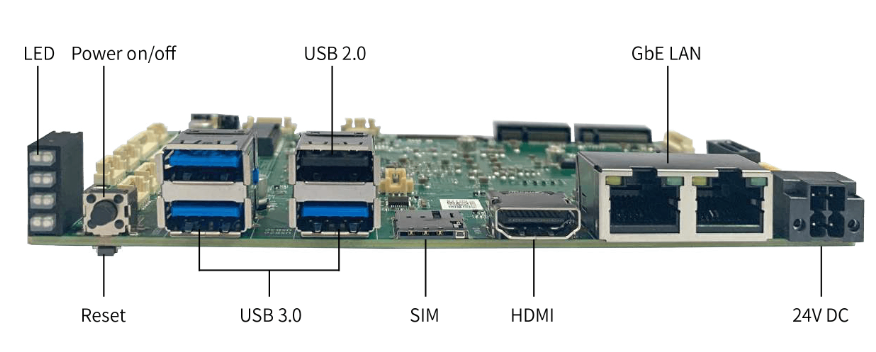

USB 3.0

3

USB 2.0

1

HDMI1
LEDPower status,HDD R/W,USER1,USER2
SIM
1 x Nano SIM
Ethernet2 x GbE Intel i225-V

Internal Connectors

USB 2.0

2

VGA

1

SATA 3.0

1

Serial Port

1 x RS-232/422/485,1 x RS-232

GPIO

8

Audio1 X HDA
SMBus1
LPC1
CPU FAN
1 x 4-Wire Smart Fan,12V@2A
Front Panel ControlPower LED,HD LED,Reset,Power Switch
User LED
4
UPS1(Optional)
ExpansionM.2 E-Key1 x M.2 E-Key 2242 support Wifi
M.2 B-Key1 x M.2 B-Key 3052 support 4G USB3.0
M.2 M-Key1 x M.2 B/M-Key 2280 SATA 3.0
Board FeatureWatchdog Timer65536 lever, 0~65535 sec
TPMTPM 2.0

OS

OS

Windows 10 /Linux

Power

Requirement

Supply Voltage

DC 24V±5%

Power Management
AT/ATX
Max. Consumption35W
Test EnvironmentIntel J4205 4G

Environment

Temperature

Operating 0 ~ 60 °C (32 ~ 140 °F)

Non-Operating -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating 40 °C @ 95% RH Non-condensing

Non-Operating 60 °C @ 95% RH Non-condensing

Physical

Characteristics

Dimensions (L x H)

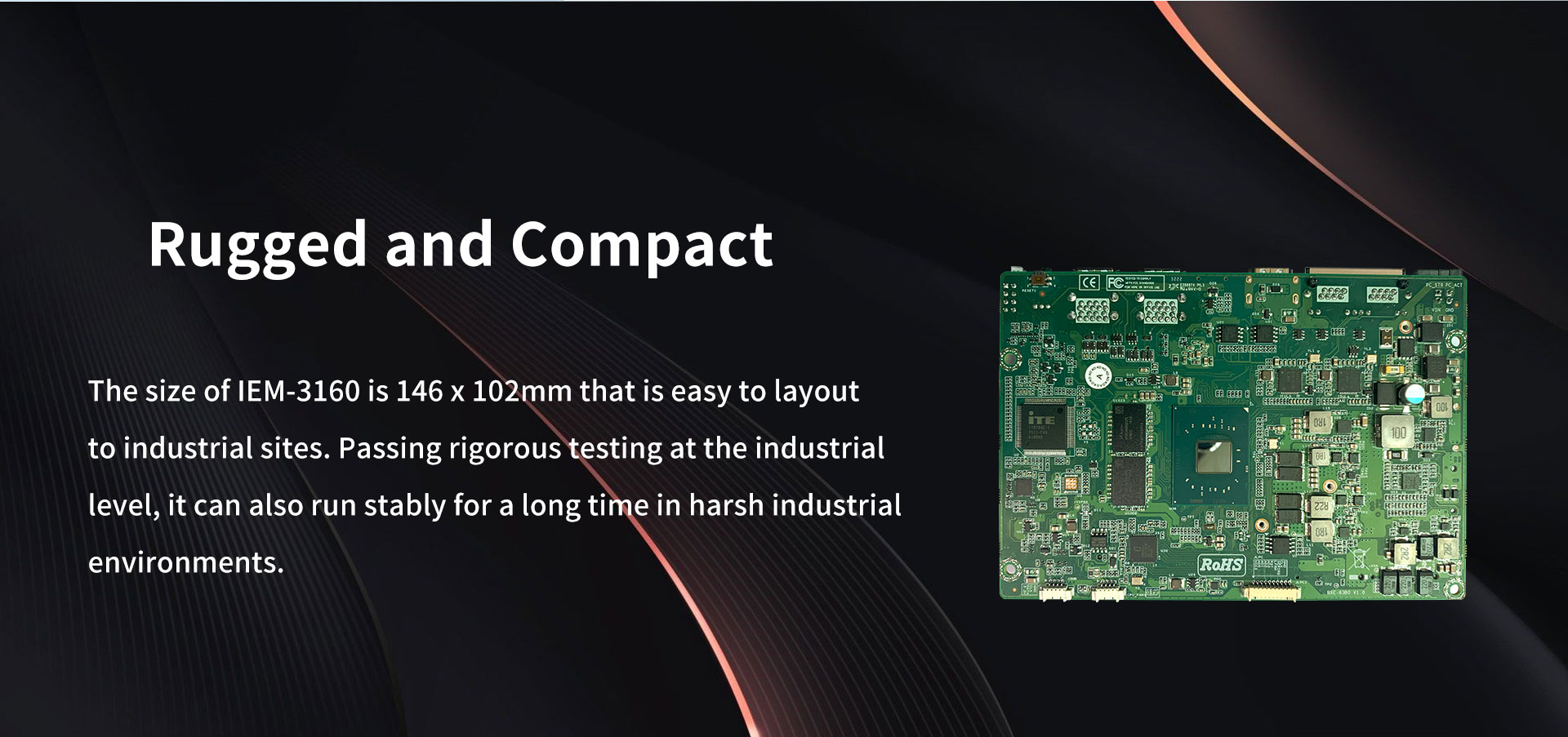

146 x 102 mm




尺寸图 Demensions






接口图 Demensions





  • IEM-3160 Series Single Board Computer Datasheet
    Size:1.53MB
    Download
