规格 Specifications
| C110 -100 | C110 -200 | C110 -300 | |
Specs | PCI Express x4 | ||

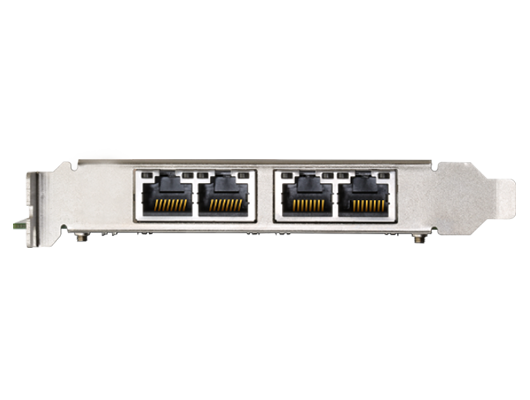

Ethernet | 4 x 10/100/1000M/2.5G bps RJ45 Ethernet port | 4 x 10/100/1000M/2.5G bps RJ45 Ethernet port | |
Full-duplex, half-duplex intelligent detection self-adaption | |||
Chip | Intel I210-AT | Intel I211-AT | Intel I225-V |
Standard | Compatible with IEEE 802.1P/ 802.1Q/802.3 10Base-T/802.3u 100Base-TX/802.3ab 1000Base-T | ||
Compatible socket | PCI-E 16x/8x/4x (PCIe x2/x1 requires connector rear opening) | ||
Nerwork environment | Gigabit and below network | 2.5G and below network | |
Indicator light | ACT：The indicator light is flashing, the port has data sending and receiving | ||
LINK: When the indicator light is on, it indicates that the link is normal | |||
| Operation environment | Operation temperature： 0˚C ~ +70˚C | ||
Storage temperature：－40˚C~ +70˚C | |||
| Humidity: 5%~90% relative humidity, non-condensing | |||
| Operation system | Windows 7/8/10, Linux | ||

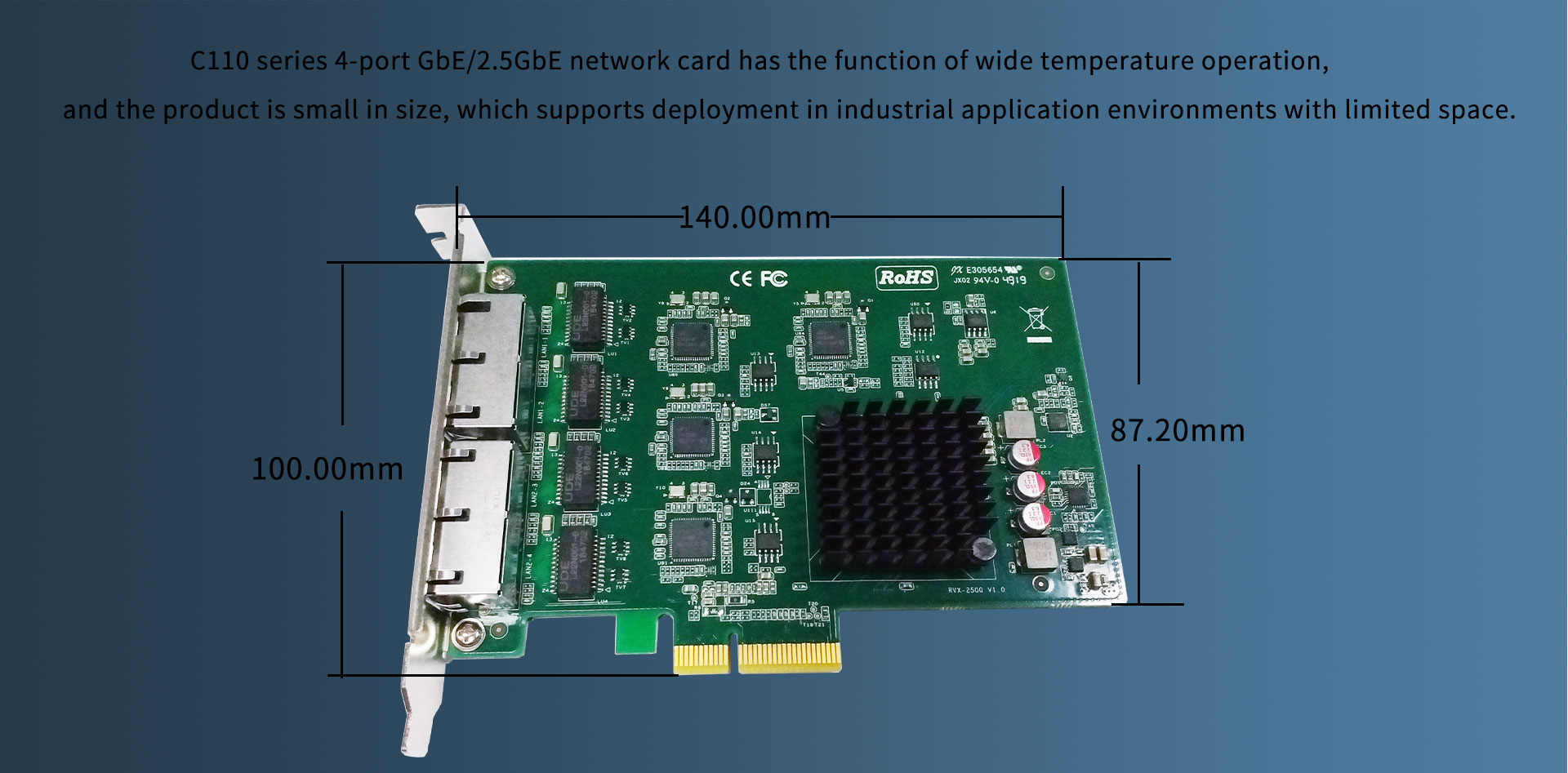

| Size | 140 mm x 100 mm (W x H) | ||
尺寸图 Demensions
