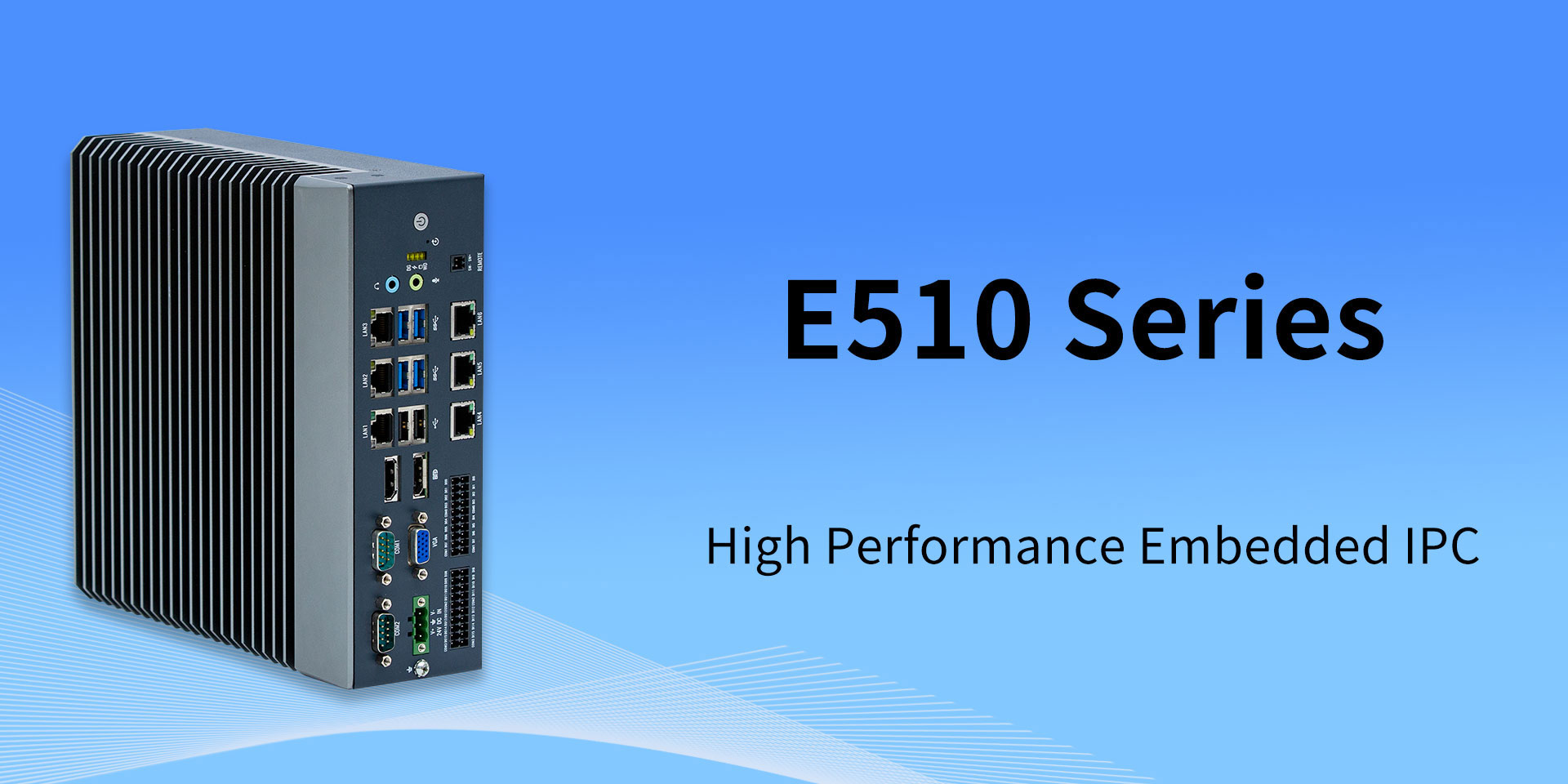

E510 Series
• Intel®Gen 6th to 9th processor
• 2 DP和1 VGA

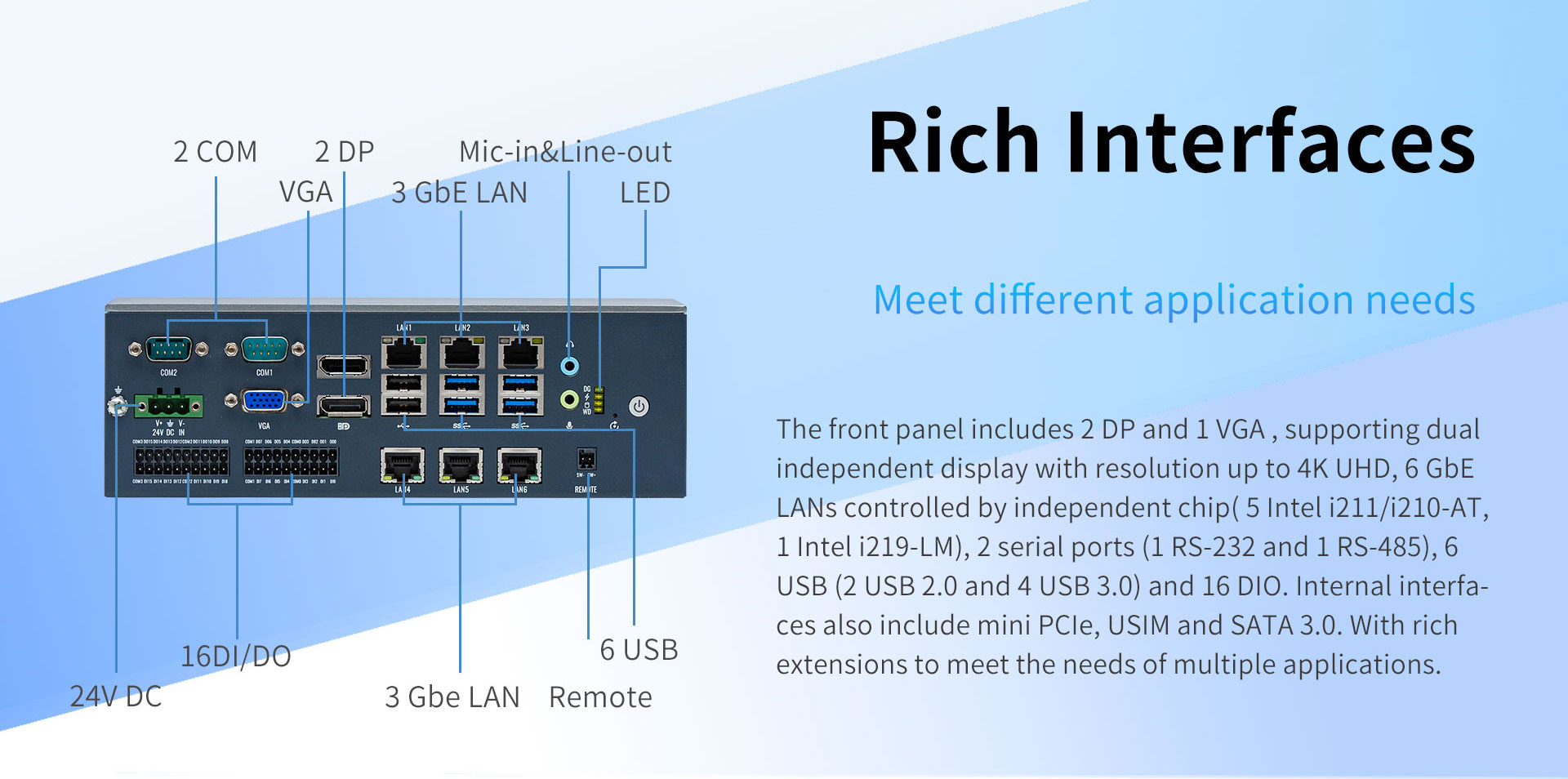

• 6 GbE LANs(5 x Intel i211/i210-AT, 2 x Intel i219-LM)
• 2 x Serial Port,6 x USB
• 16DI,16DO

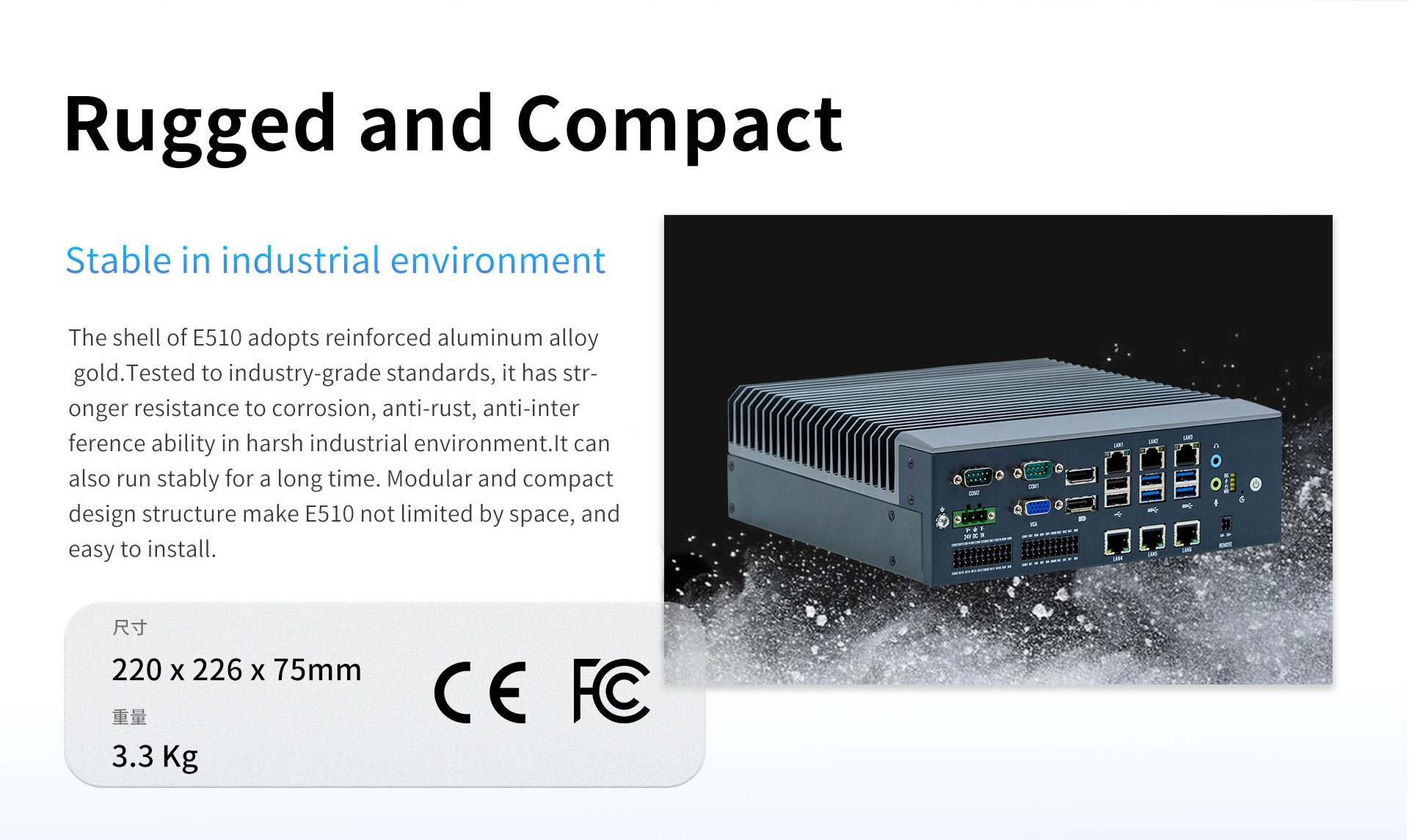

• Rugged and Compact

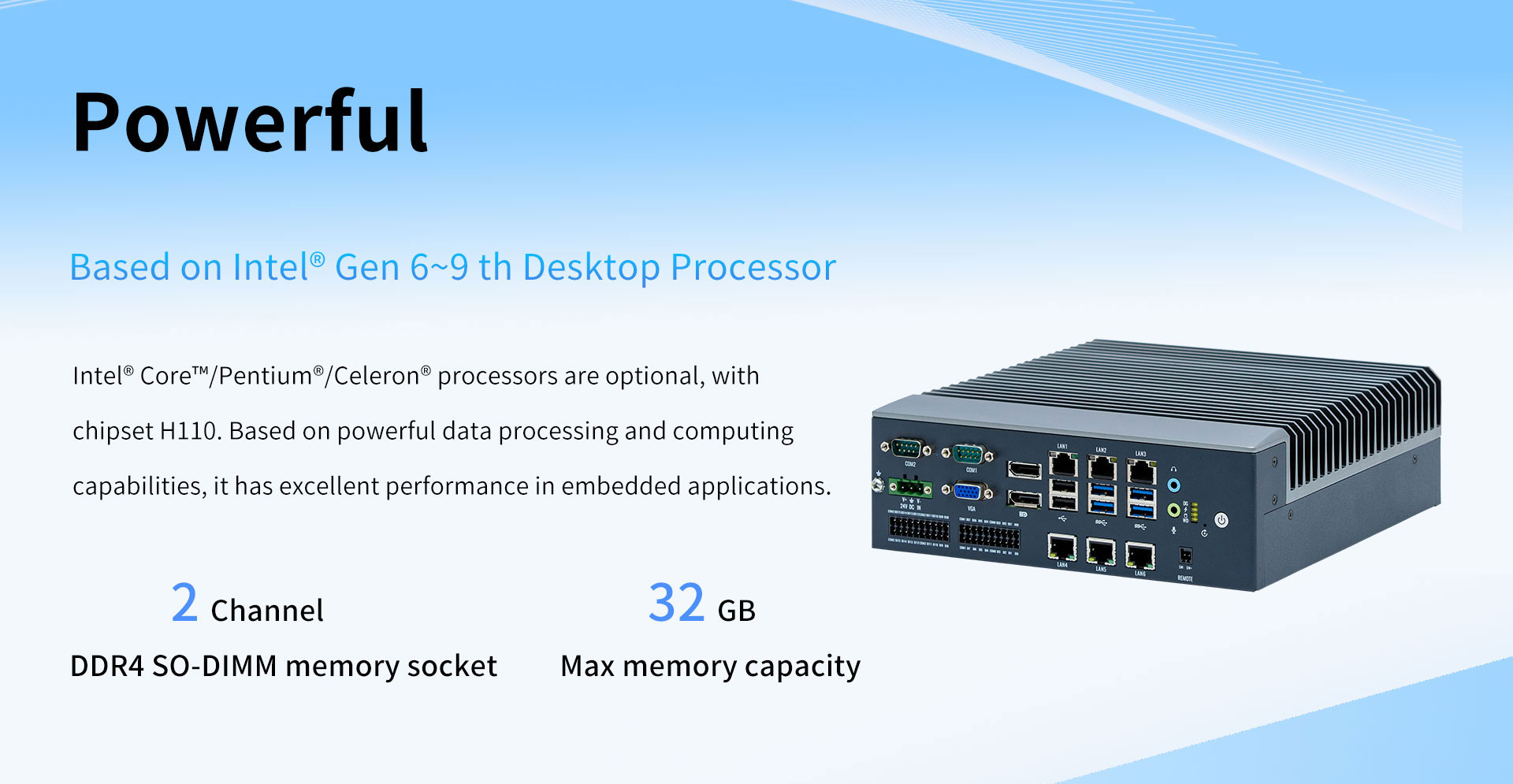

  • Intel Gen 6th to 9th Processor(LGA1151)
  • 2x DDR4 SO-DIMM(Max.32GB)
  • 2 x DP(4K2K resolution)、1 x VGA. Support DP+DP/DP+VGA dual independent display
  • 6(5 x Intel i211-AT/ i210-AT, 2 x Intel i219-LM)
  • 4 x USB 3.0, 2 x USB 2.0,1 x RS-232,1 x RS-485, 16DI/DO
  • Windows 7(Only Gen 6th),Windows 10 64 Bit, Linux
  • Product Details
  • Specification
  • Application
  • Download






规格 Specifications



Specs

Item

E510

Processor System

CPU

Intel® 6th/7th/8th/9th Gen Processors with LGA1151

Chipset

H110

BIOS

AMI 8MB UEFI

Memory

Sockets

2xDDR4 SO-DIMM

Capacity

4GB (Max. 32GB)

Display

DP

2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz

VGA

1 x VGA, Max. 1920 x 1080@60Hz

Dual Display

Yes, DP + DP or DP + VGA

Audio

I/O

1xMic-in, 1xLine-out

Ethernet

LAN

5 x Intel® i211-AT / i210-AT GbE

LAN

 1 x Intel®  i219-LM GbE

I/O Interface

USB

4xUSB3.0,  2 x USB2.0

COM

1 x RS232, 1 x RS485

DIO

16 DI, 16 DO

RemoteSupport remote switch 2-pin connector

Expansion

Mini-PCIe

1 x full-size mini-PCIe, Support WLAN/WWAN module

USIM

1xUSIM, Support 3G/4G LTE

Storage

M.2

1 x M.2

SATA3.0

1 x SATA3.0, For 2.5" SATA storage device

Watchdog

Output/Interval

Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec

Power SupplyDC input
24V DC IN

OS

MicrosoftWindows

Windows 7(Intel® 6th Gen CPU only), Windows 10 64Bit

Linux

Yes

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Wall Mounting

Dimensions

220x226x75mm(LxWxH)

Weight

3.4Kg

Environment

Operating Temperature

0°C~50°C, Airflow 0.7m / s

Storage Temperature

-40°C~80°C

Relative Humidity

95%@40°C(Non-Condensing)

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCCClassB



尺寸图 Demension







接口图 Interfaces











  • E510 Series Industrial Computer Datasheet
    Size:353KB
    Download
