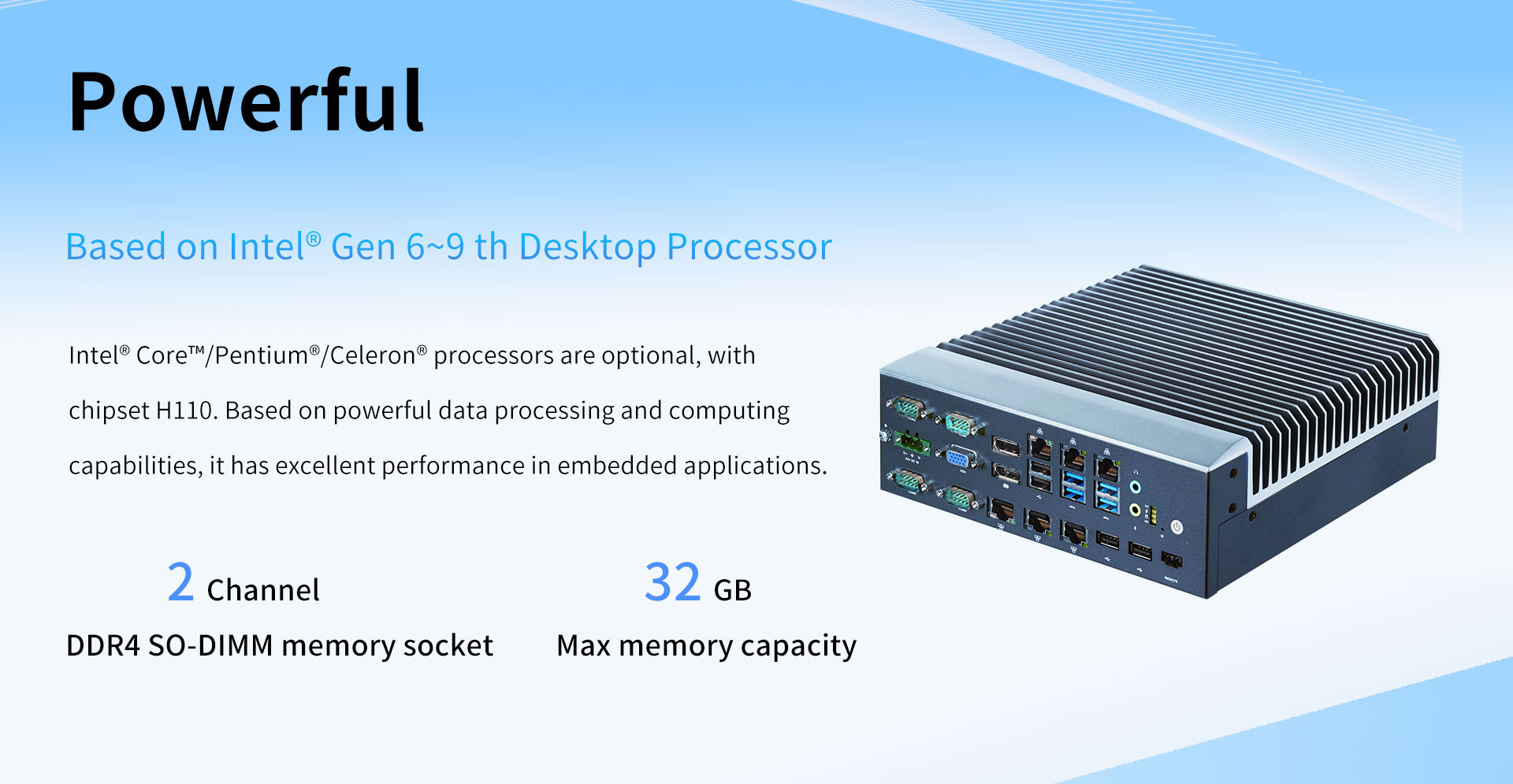

Processor System

CPU

Intel® 6th/7th/8th/9th Gen Processors with LGA1151

Chipset

H110

AMI 8MB UEFI

Memory

Sockets

2xDDR4 SO-DIMM

Capacity

4GB (Max. 32GB)

Display

DP

2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz

VGA

1 x VGA, Max. 1920 x 1080@60Hz

Dual Display

Audio

I/O

1xMic-in, 1xLine-out

Ethernet

LAN

5 x Intel® i211-AT / i210-AT GbE

LAN

 1 x Intel®  i219-LM GbE

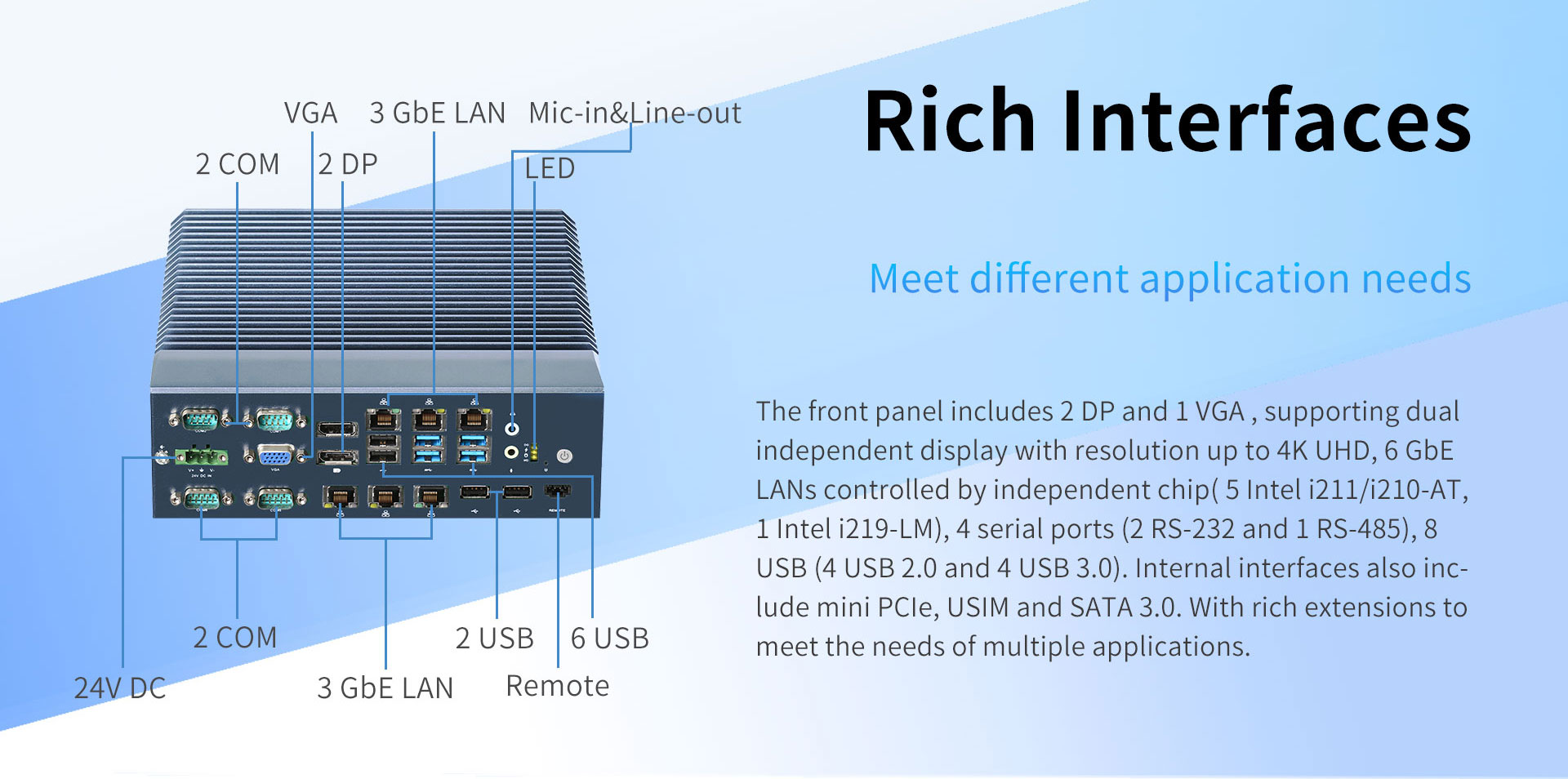

I/O Interface

USB

4xUSB2.0, 4xUSB3.0

COM

2 x RS232, 2 x RS485

Remote

4-pin remote power on/off switch and LED on the front

Expansion

Mini-PCIe

1 x full-size mini-PCIe, Support WLAN/WWAN module

USIM

1xUSIM, Support 3G/4G LTE

Storage

M.2

1 x M.2

SATA3.0

1 x SATA3.0, For 2.5" SATA storage device

Watchdog

Output/Interval

Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec

OS

MicrosoftWindows

Windows 7(Intel® 6th Gen CPU only), Windows 10 64Bit

Linux

Yes

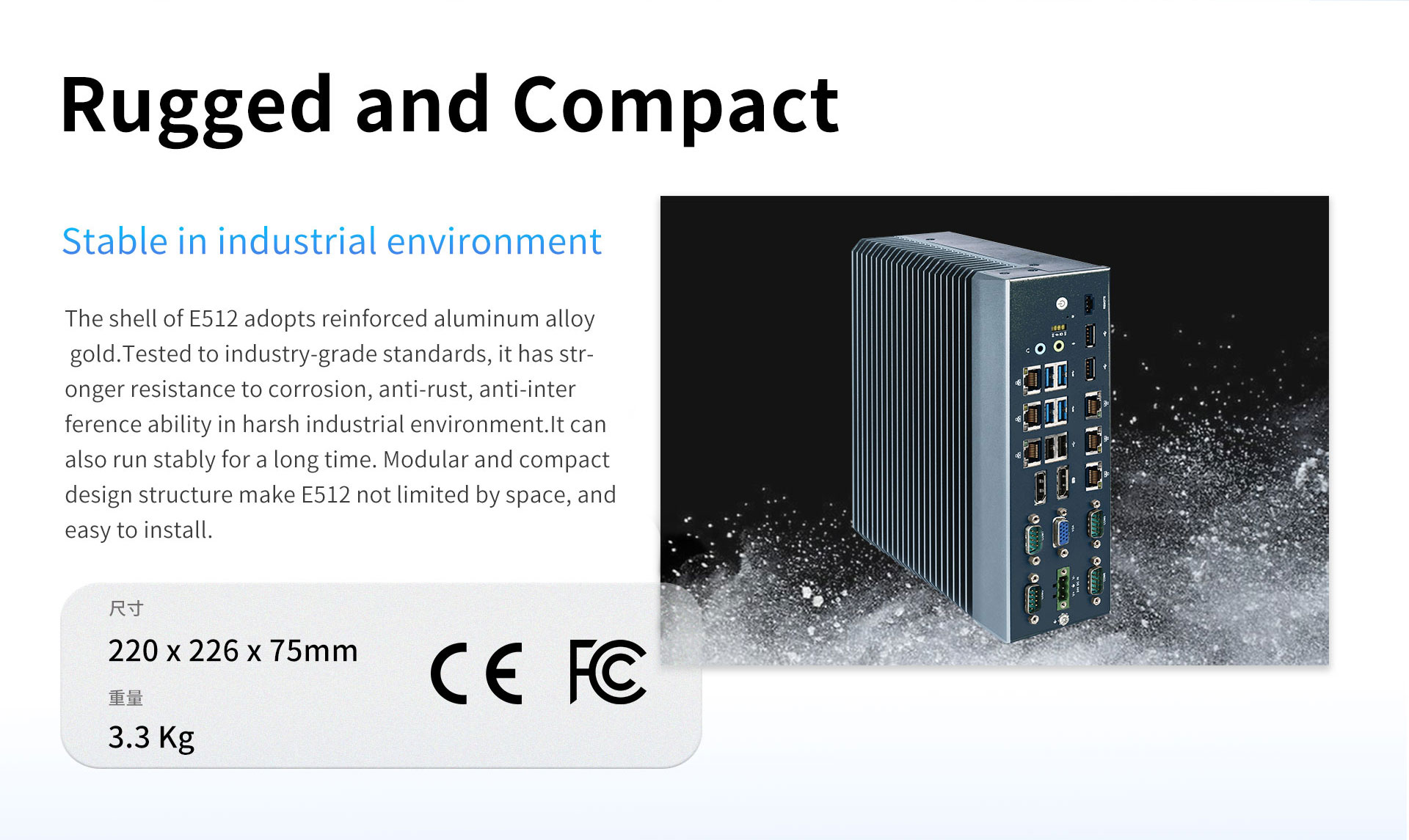

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Wall Mounting

Dimensions

220x226x75mm(LxWxH)

Weight

3.3Kg

Environment

Operating Temperature

0°C~50°C, Airflow 0.7m / s

-40°C~80°C

Relative Humidity

95%@40°C(Non-Condensing)

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCCClassB
