规格 Specifications
Specs | Item | E300 |

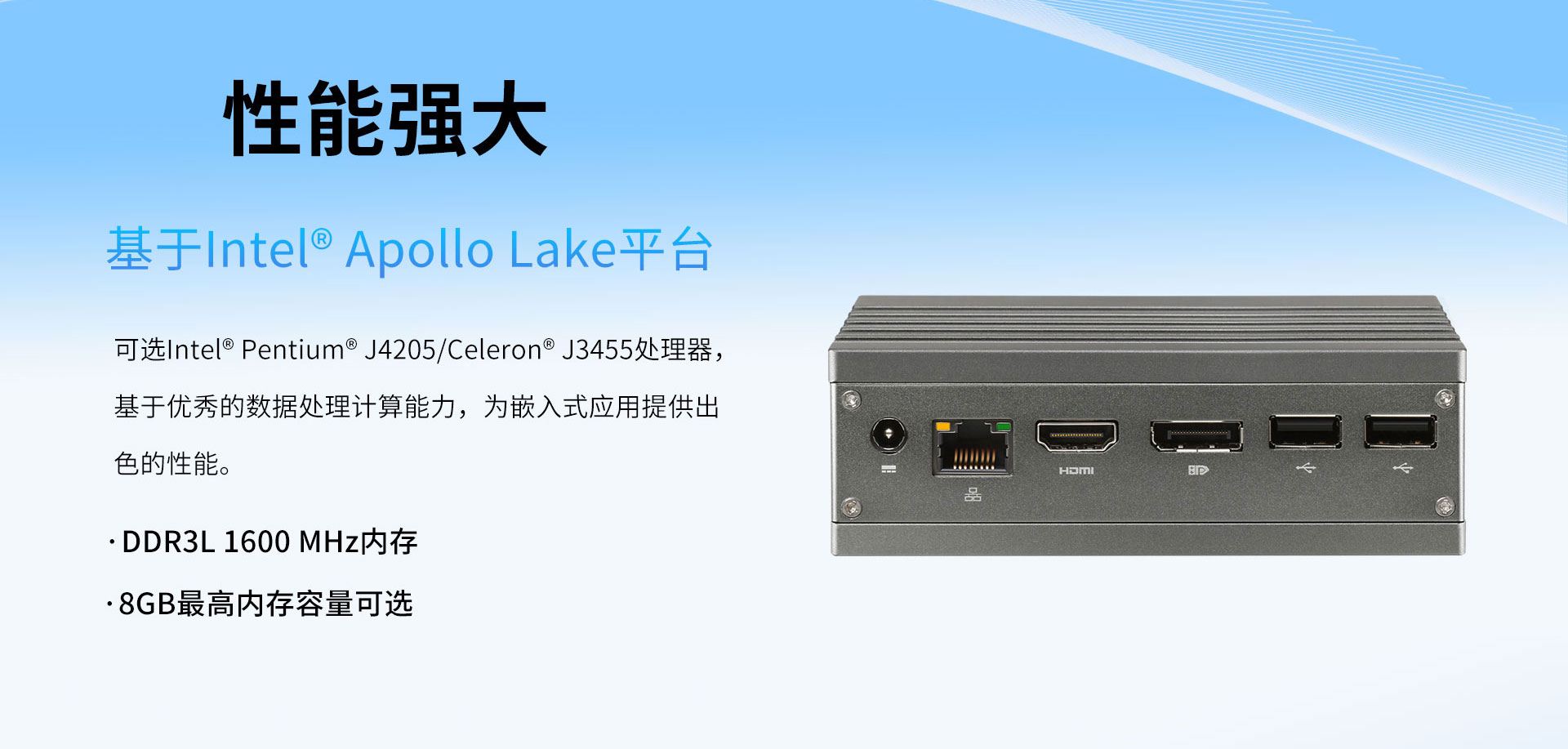

Processor System | CPU | Intel® Apollo Lake N3350/J3355/J3455/N4200 系列处理器 |
| BIOS | AMI 8MB UEFI | |
Memory | Sockets | DDR3L 1600 MHz |
Capacity | 2GB (Max. 8GB) | |
Display | Chipset | Intel HD Graphics 500/505 |
| Graphics engine | 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP9 | |
DP | 1, Max. resolution 4096 x 2160@60Hz | |
HDMI | 1, Max. resolution 3840 x 2160@60Hz | |
Dual Display | HDMI+DP | |
Audio | I/O | Realtek ALC662, High Definition Audio, Line Out & Line In |
Ethernet | LAN | 1 x RTL8111H GbE, support wake-on-LAN |
I/O Interface | USB | 2 x USB2.0, 2 x USB3.0 |
COM | 1xRS232(optional) | |
Expansion | M.2 E Key | 1 x M.2 E Key, support WLAN module |
Storage | M.2 | 1 x 2242 SSD |
eMMC | 8GB, MAX. 256GB | |
| TF Card | 1 | |
| Power Supply | DC input | 24V DC IN |
OS | Microsoft Windows | Windows 10 64Bit |
Linux | Yes | |

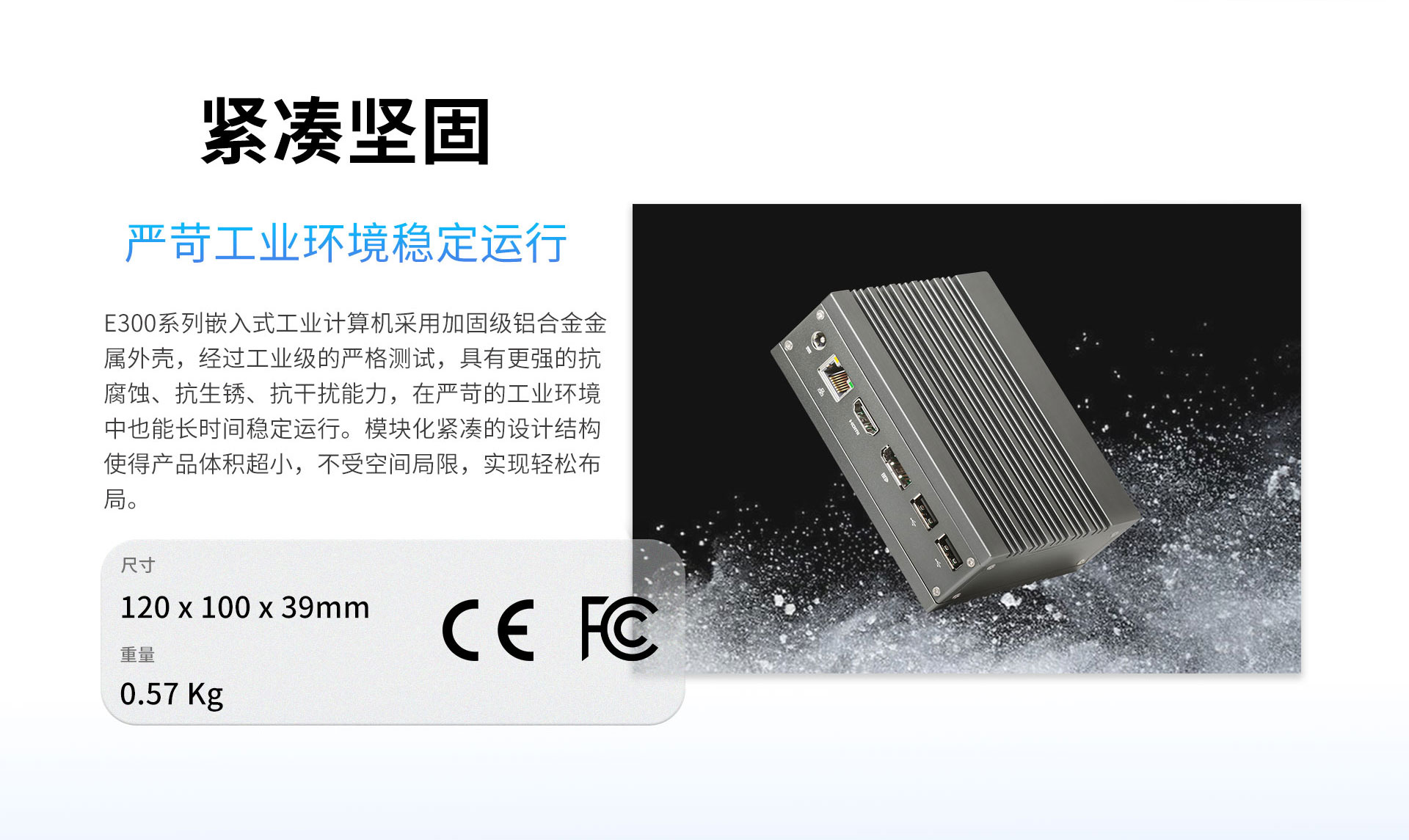

Physical Characteristics | Construction | Aluminium Alloy |
Mounting | Wall Mounting | |
Dimensions | 120x100x39 mm(LxWxH) | |
Weight | 0.57 Kg | |
Environment | Operating Temperature | -20°C~60°C, Airflow 0.7m / s |
| Storage Temperature | -40°C~80°C | |
Relative Humidity | 95%@40°C(Non-Condensing) | |
Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
ESD | Contact +/-4 KV, Air +/-8 KV | |
EMC | CE/FCCClassB |

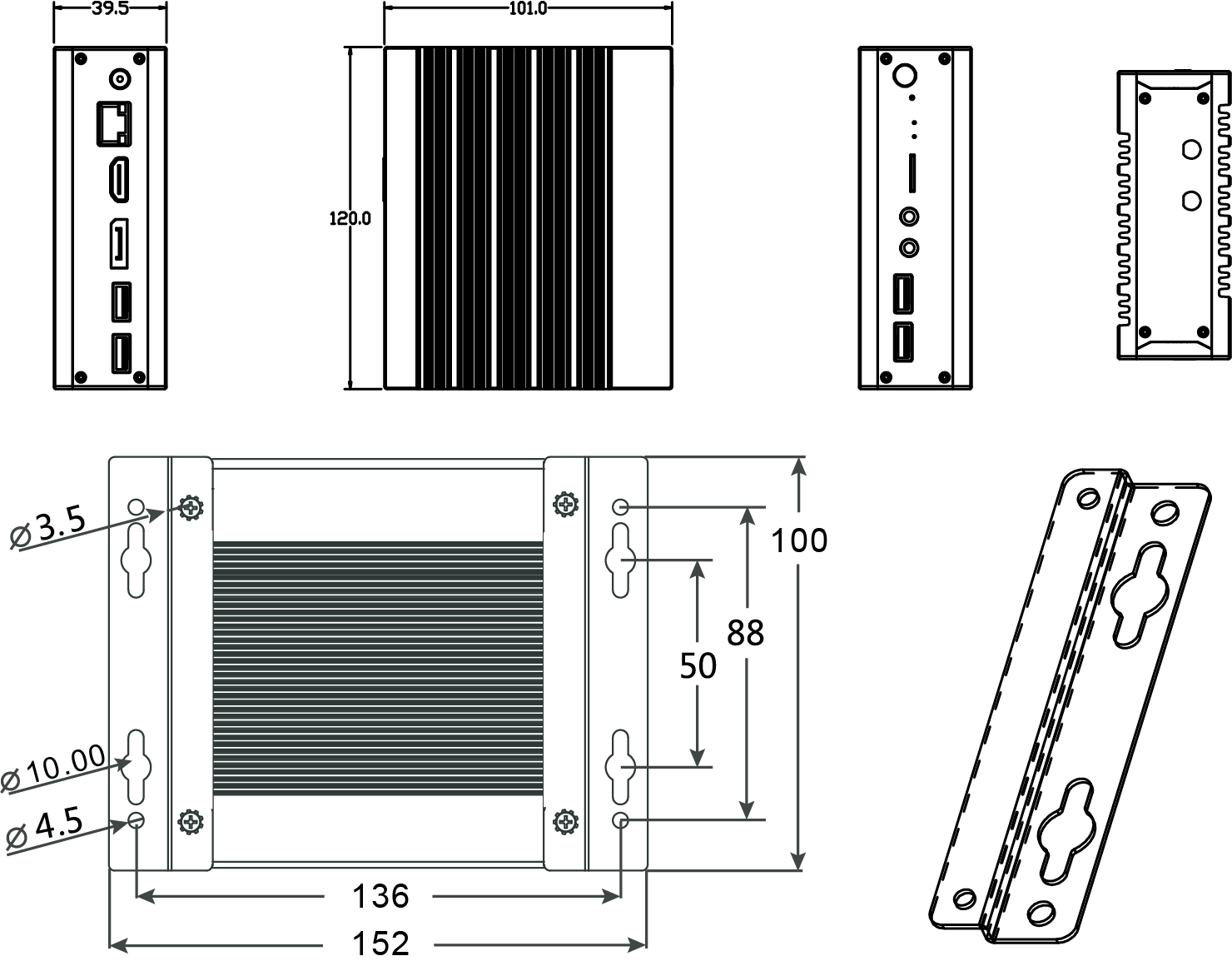

尺寸图 Dimensions

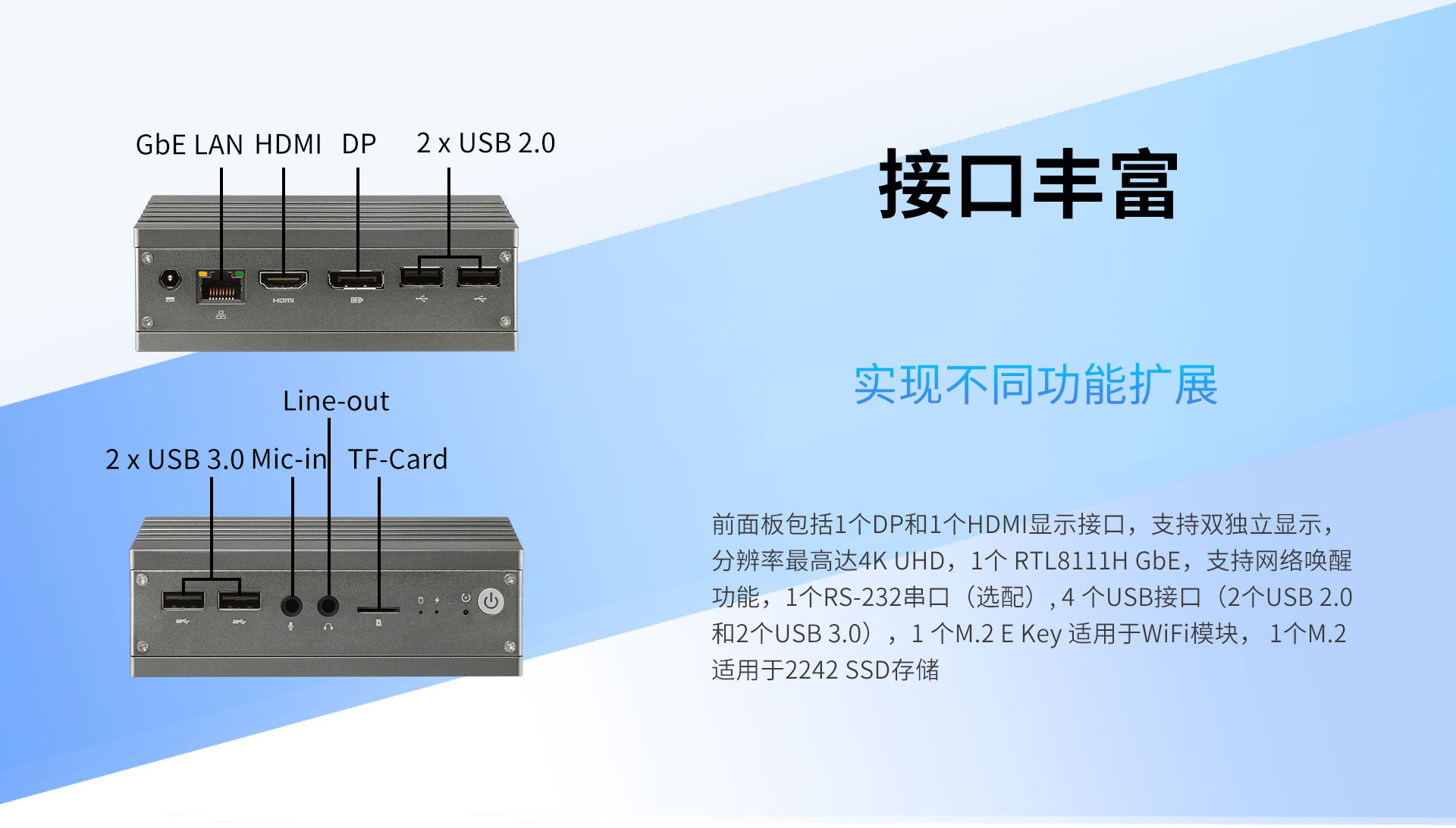

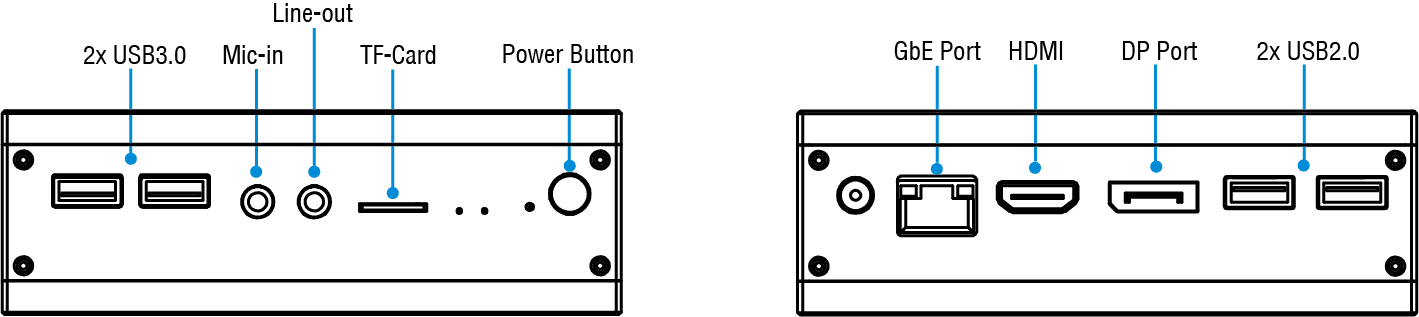

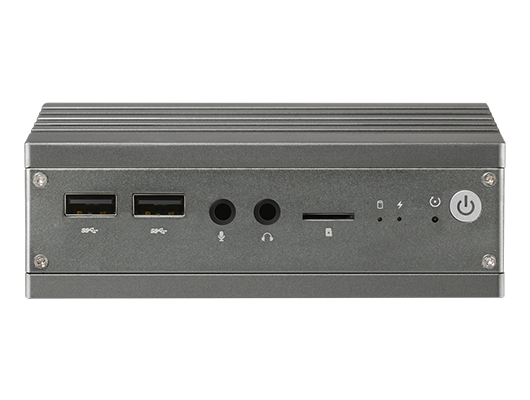

接口图 Interfaces
