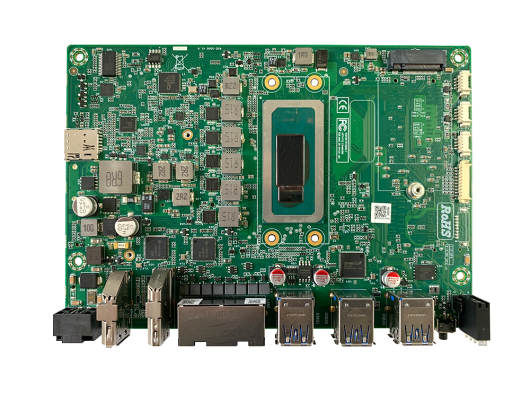

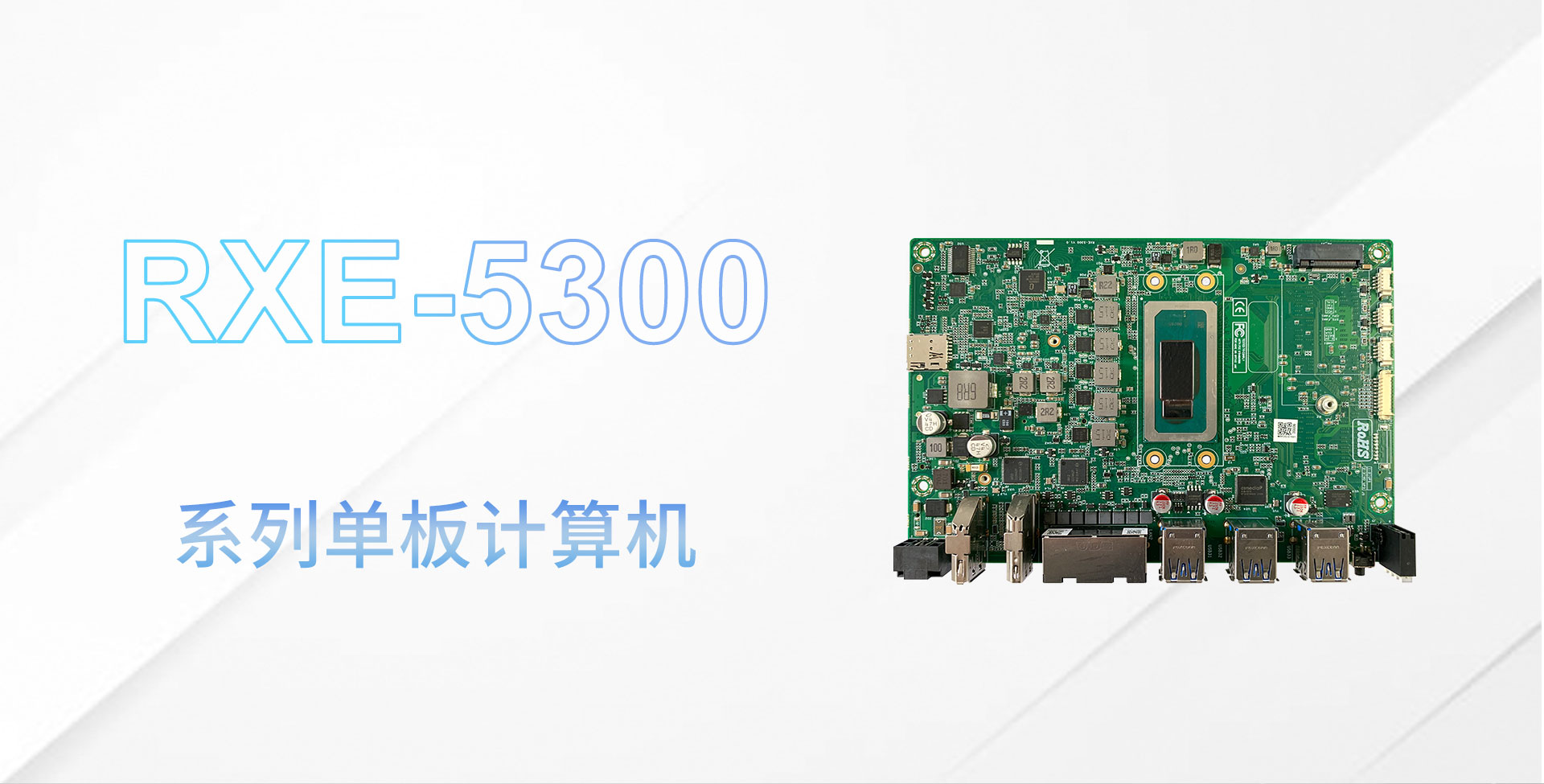

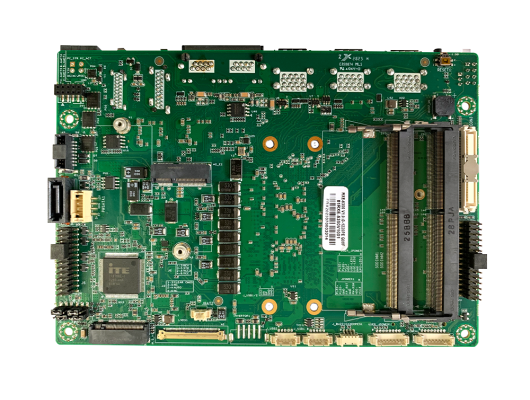

RXE-5300系列
• Intel® Alder Lake-P系列处理器
• 1 DP, 1 HDMI
• 2 x Intel i210-AT GbE LAN (可支持POE)
• 6 x USB 3.0
• 3 x M.2, 1 x SATA3.0, 1 x Nano SIM, 1 x BTB
• 支持Watchdog和TPM 2.0

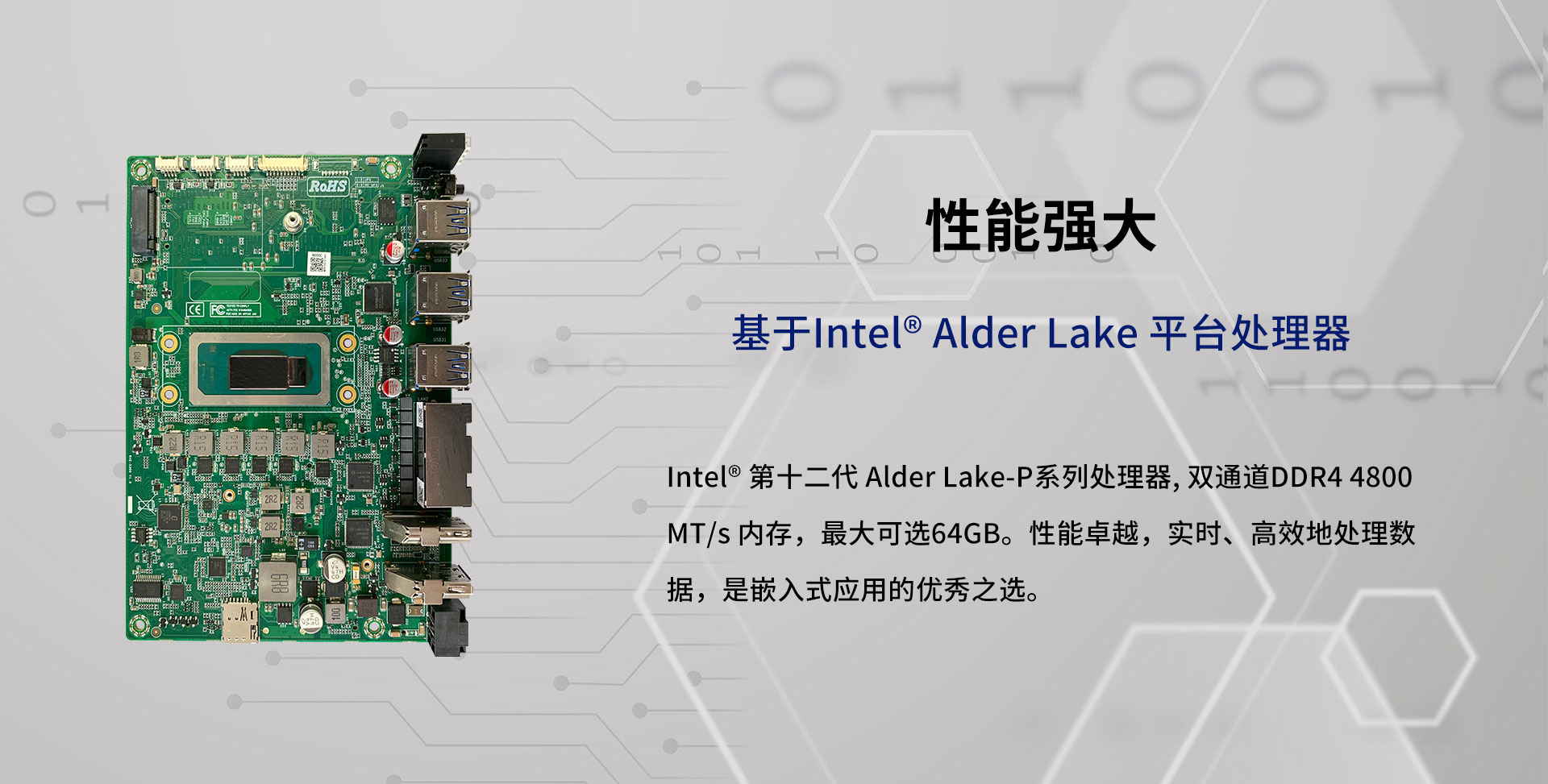

  • Intel第十二代Alder Lake-P系列处理器
  • 2x DDR4 SO-DIMM(Max.64GB)
  • 1 x HDMI, 1 x DP
  • 2 x Intel i210-AT GbE LAN (可支持POE)
  • 6 x USB 3.0
  • Windows 10/Linux
  • 产品详情
  • 规格
  • 应用
  • 下载






规格 Specifications


Item

Sub-Item

Description

Processor System

CPU

Intel Alder Lake-P

TDP

45W MAX

BIOS

AMI 128 Mbit SPI Flash

Memory

Technology

Dual channel DDR4 4800

Capacity

64GB

Socket2 x SO-DIMM

Graphics

Controller

Intel® Iris XeGraphics architecture with up to 96 Eus

Graphic features
5K60 10b 4:4:4 HEVC/VP9/SCC, 8K60 12b 4:2:0 HEVC/VP9/SCC, 8K30 10b 4:2:0 AV1, 4K60 8b 4:2:0 AVC

Display

DP

1 x DP1.4a up to 4096x2304x36bpp@60Hz,or 5120x3200x24bpp@60Hz

HDMI

1 x HDMI2.0b up to 4096x2304x24bpp@60Hz

LCD1

1 x eDP/LVDS dual channel 18/24 bit, up to 1920 x 1200

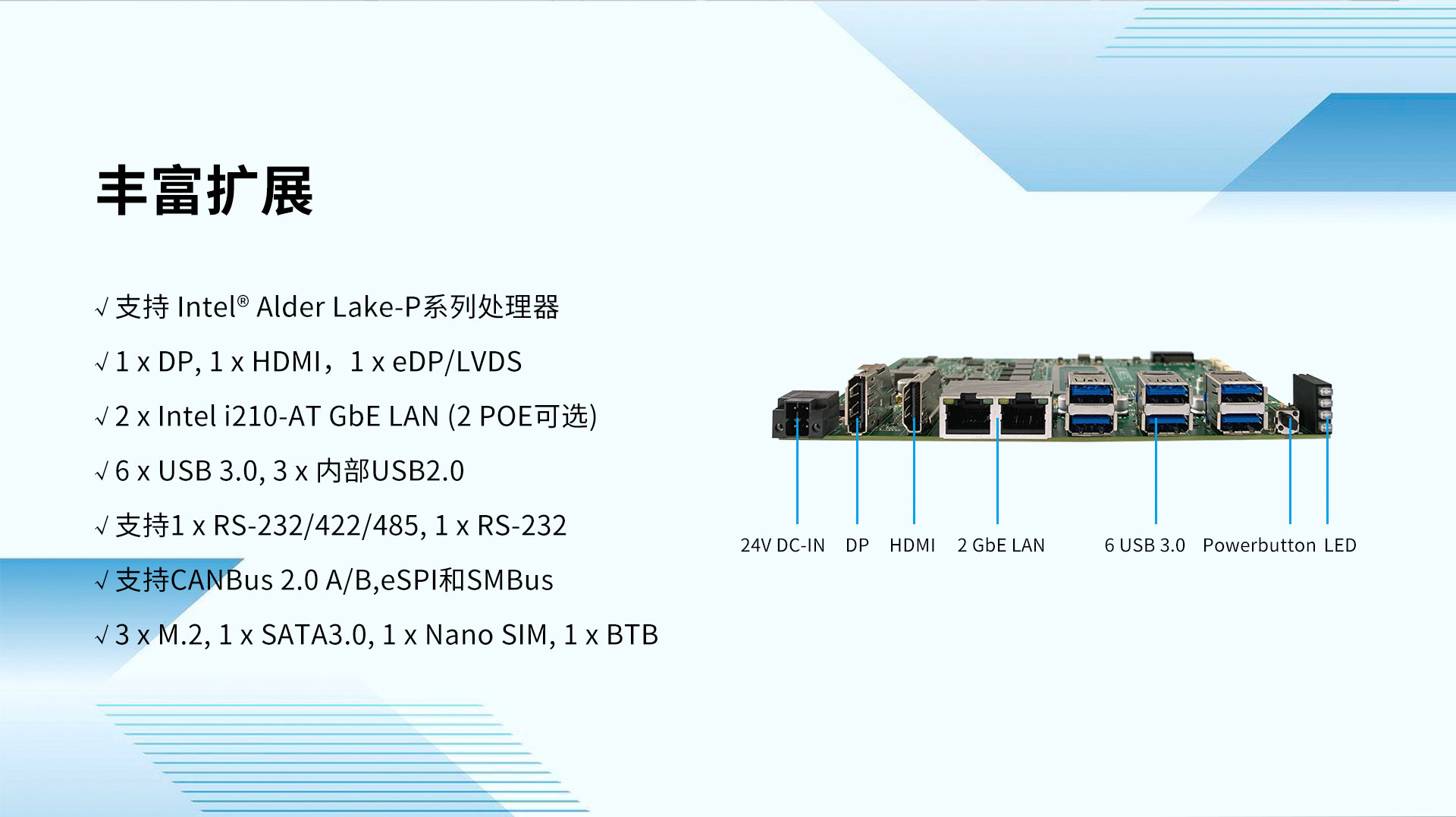

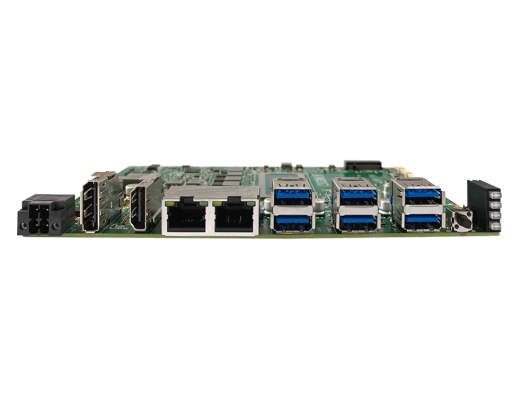

External I/O

HDMI

1

DP1
Ethernet
2 x Intel i210-AT (Support POE)
USB 3.06
Reset
1
LED4
Power button1

Internal Connectors

USB 2.0

3

LCD1

1 x eDP or LVDS Dual Channel 18/24-bit,up to 1920x1200

SATA 3.0

1

SATA Power1
Serial Port
1 x RS-232/422/485, 1 x RS-232
GPIO

8-bit general purpose input/output

GPIO1-bit general purpose input/output (watchdog)
SIM1 x Nano SIM
Audio1 x HDA
eSPI Bus1
SMBus1
Invertor
1
CPU FAN1
SYS FAN
1
Front Panel ControlPower, SATA, User1, User2
Buzzer
1
User LED4 (User1/User2/User3/User4)
RTC Battery1
UPS1 (Optional)
Jumps or DIPeDP Power&Backlight ADJ1
Auto Power on/Load BIOS1
ExpansionM.2 E-Key1 x M.2 E-Key 2230 support Wifi
M.2 B-Key1 x M.2 B-Key 3052 support 4G/5G
M.2 M-Key1 x M.2 B/M-Key 2280 support SSD(PCIe x4)
Board to Board1 x 4PCIe x 1/2USB2.0/1I2C/1eSPI/4TTL (TX/RX/CTS/RTS/GND)
Board FeatureWatchdog Timer65536 lever, 0~65535 sec
TPMTPM 2.0

OS

OS

Windows 10 64-bit, Linux

Power

Requirement

Supply Voltage

DC 9-36V ± 5%

Power Management
AT/ATX
Max. Consumption90W
Test EnvironmentIntel Core i7-1270P DDR5 32GB X2

Environment

Temperature

Operating -25 ~ 60 °C,Extend -40~85℃

Non-Operating -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating 40 °C @ 95% RH Non-condensing

Non-Operating 60 °C @ 95% RH Non-condensing

Physical characteristic

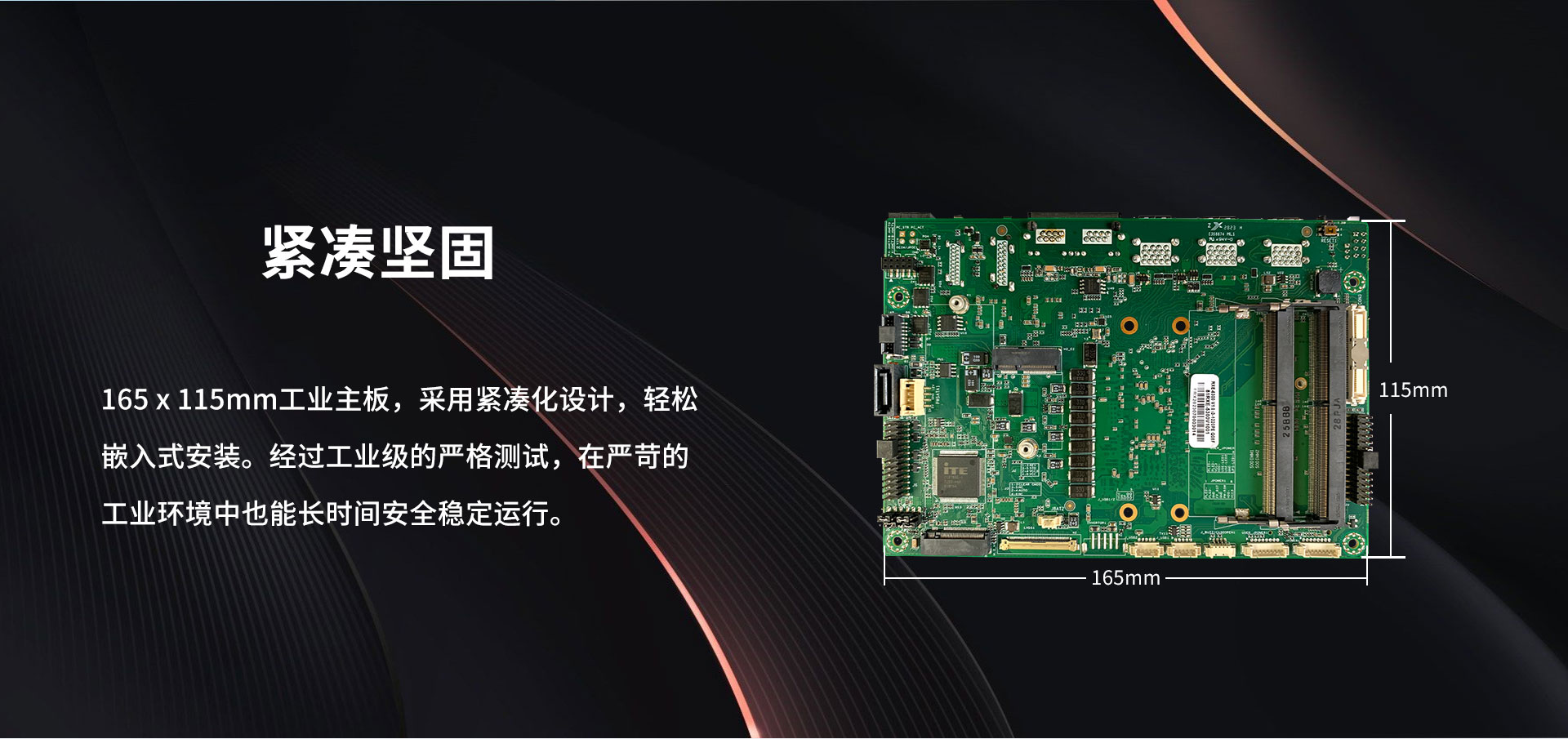

Dimensions165 x 115mm

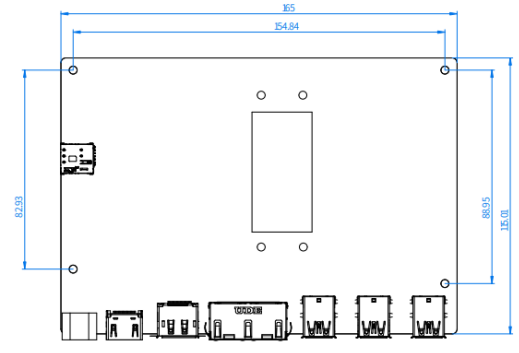

尺寸图 Dimensions

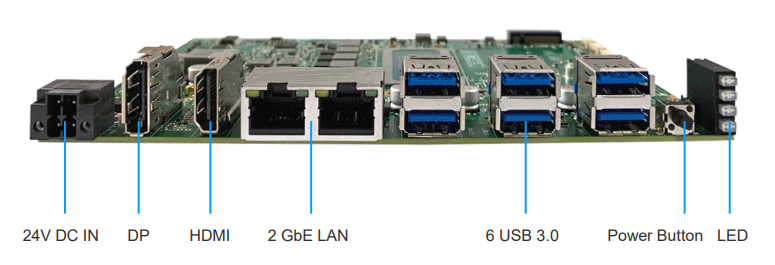

接口图 Interfaces
