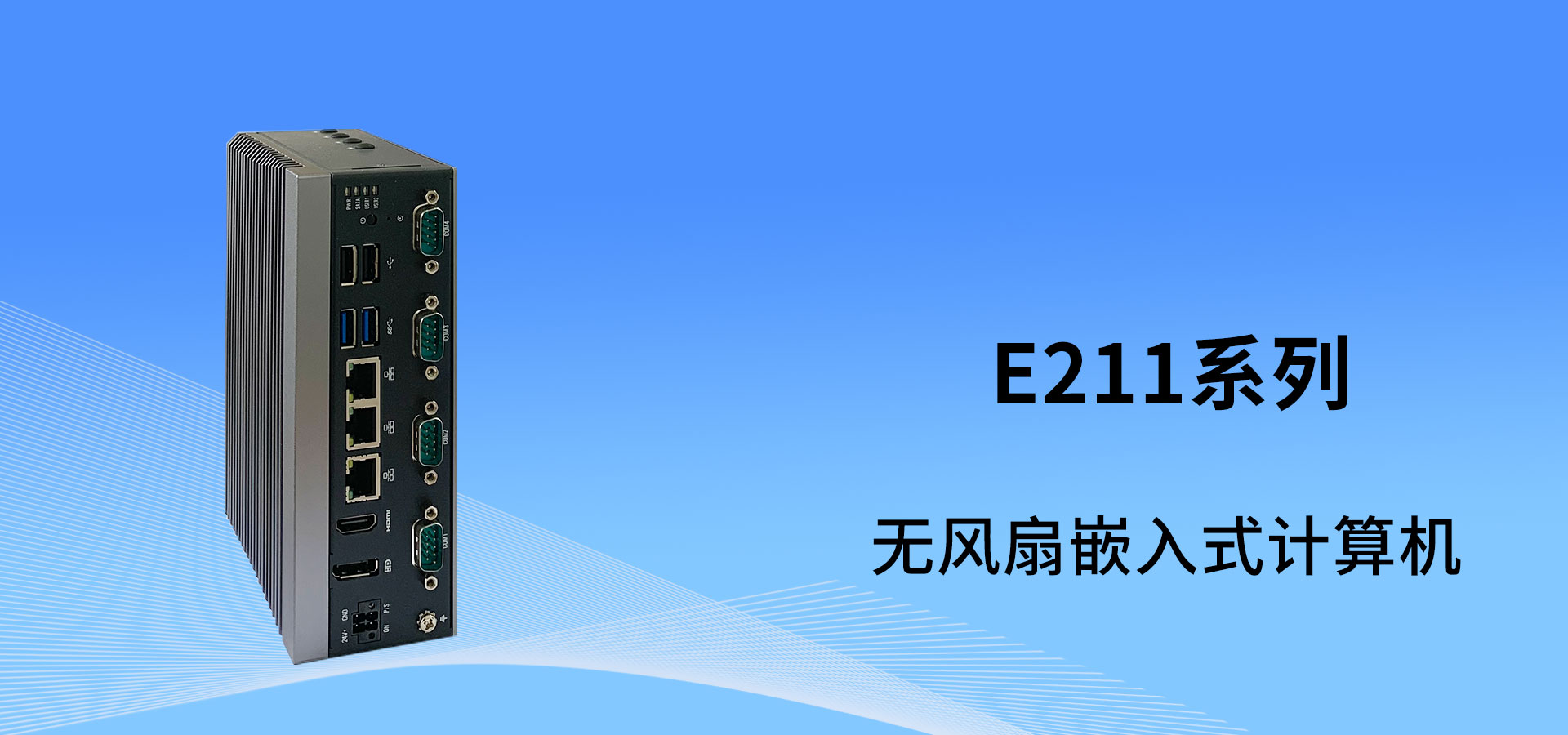

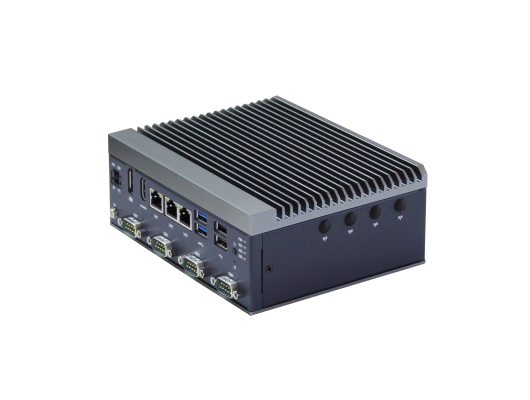

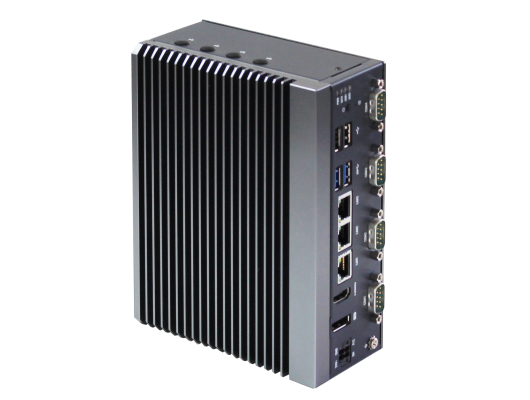

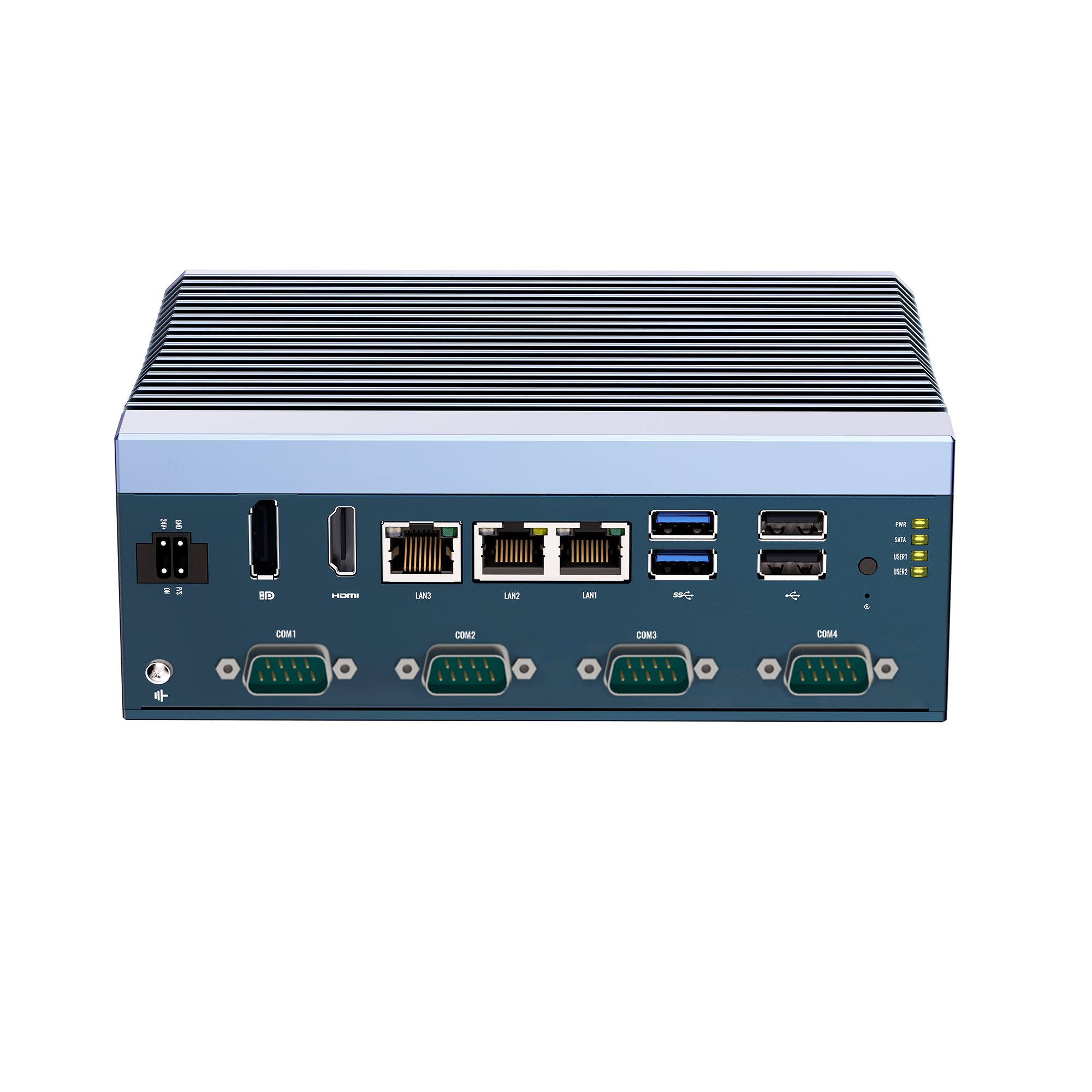

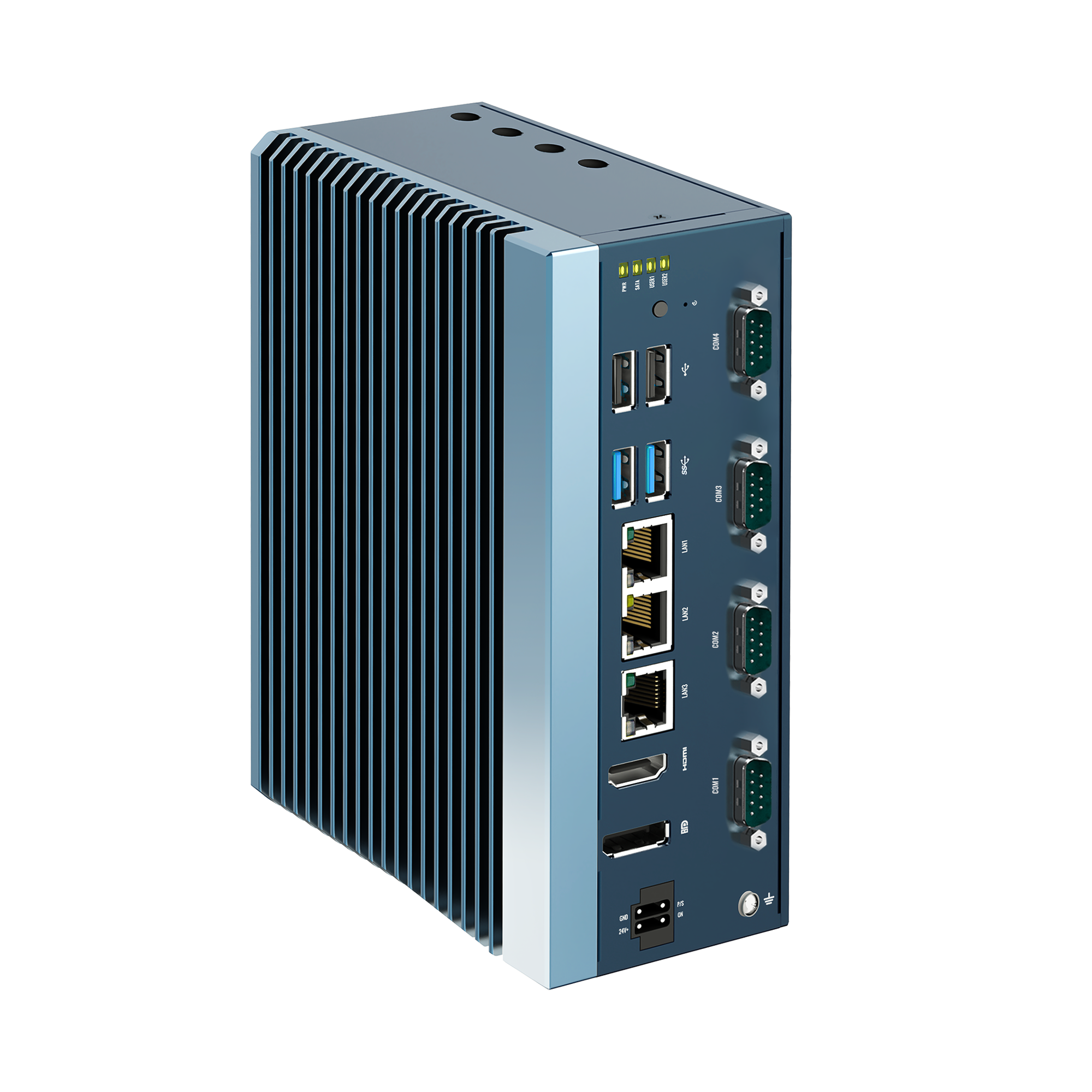

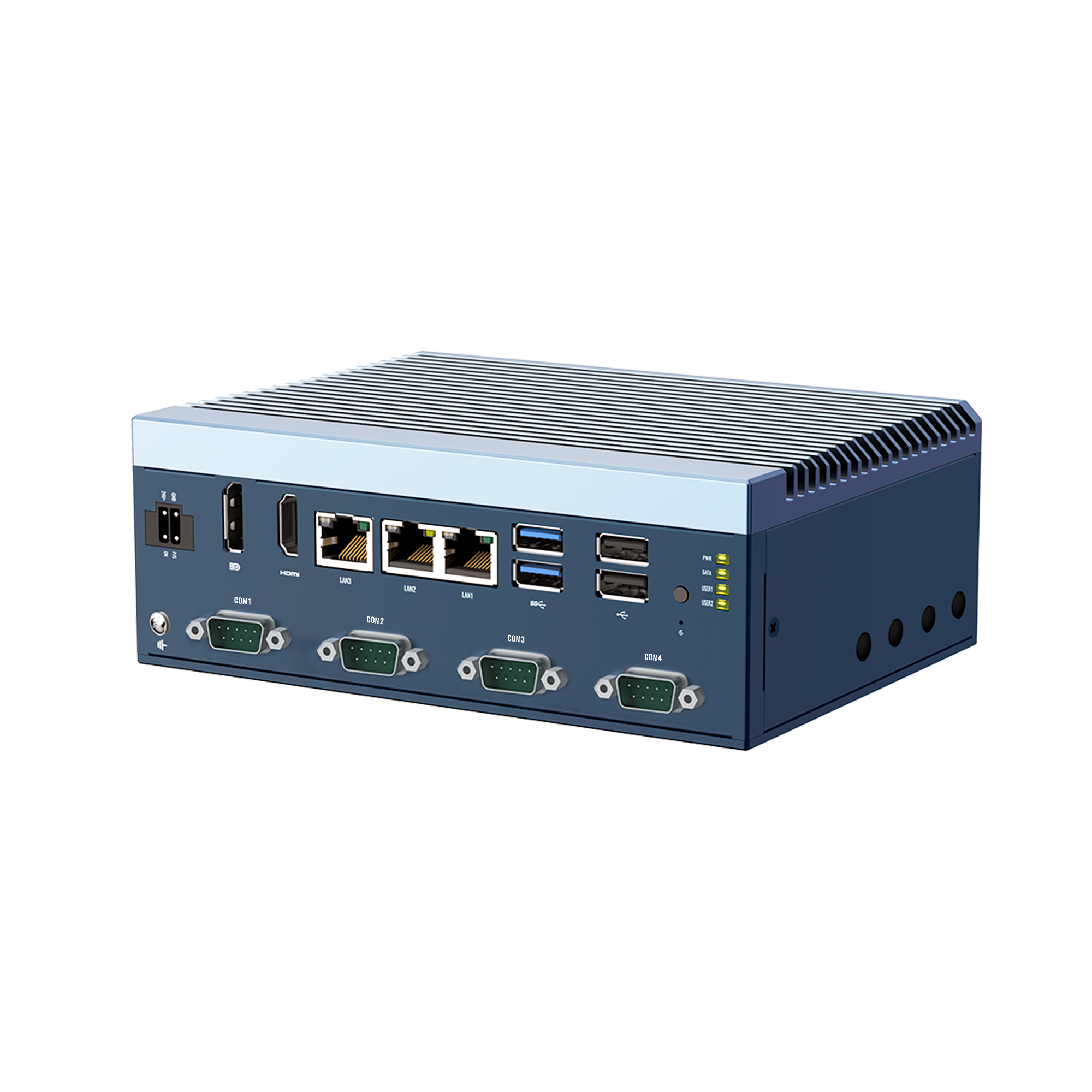

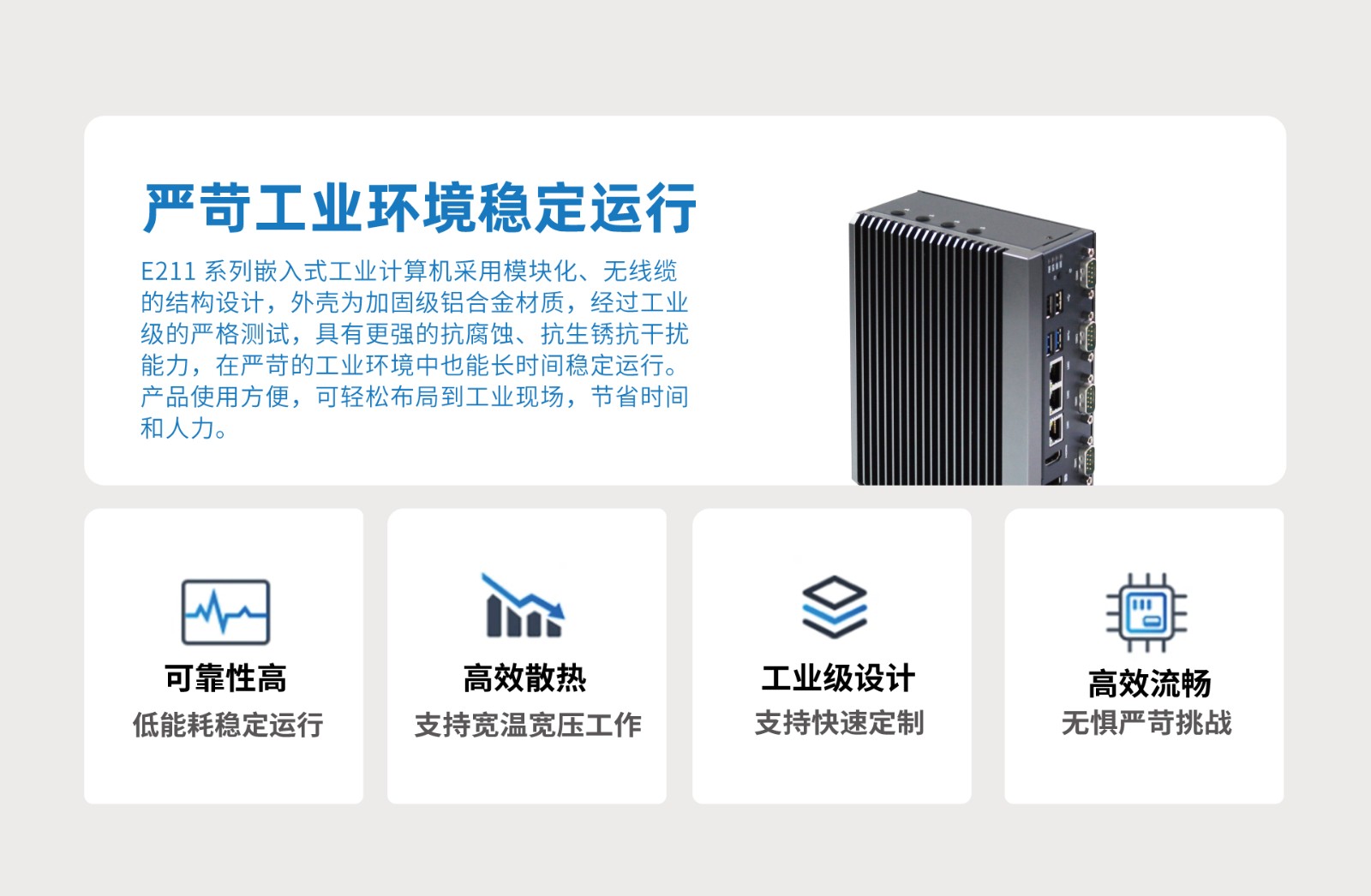

E211系列
• Intel® Elkhart Lake J6412/N6210/X6425E
• 1 DP, 1 HDMI

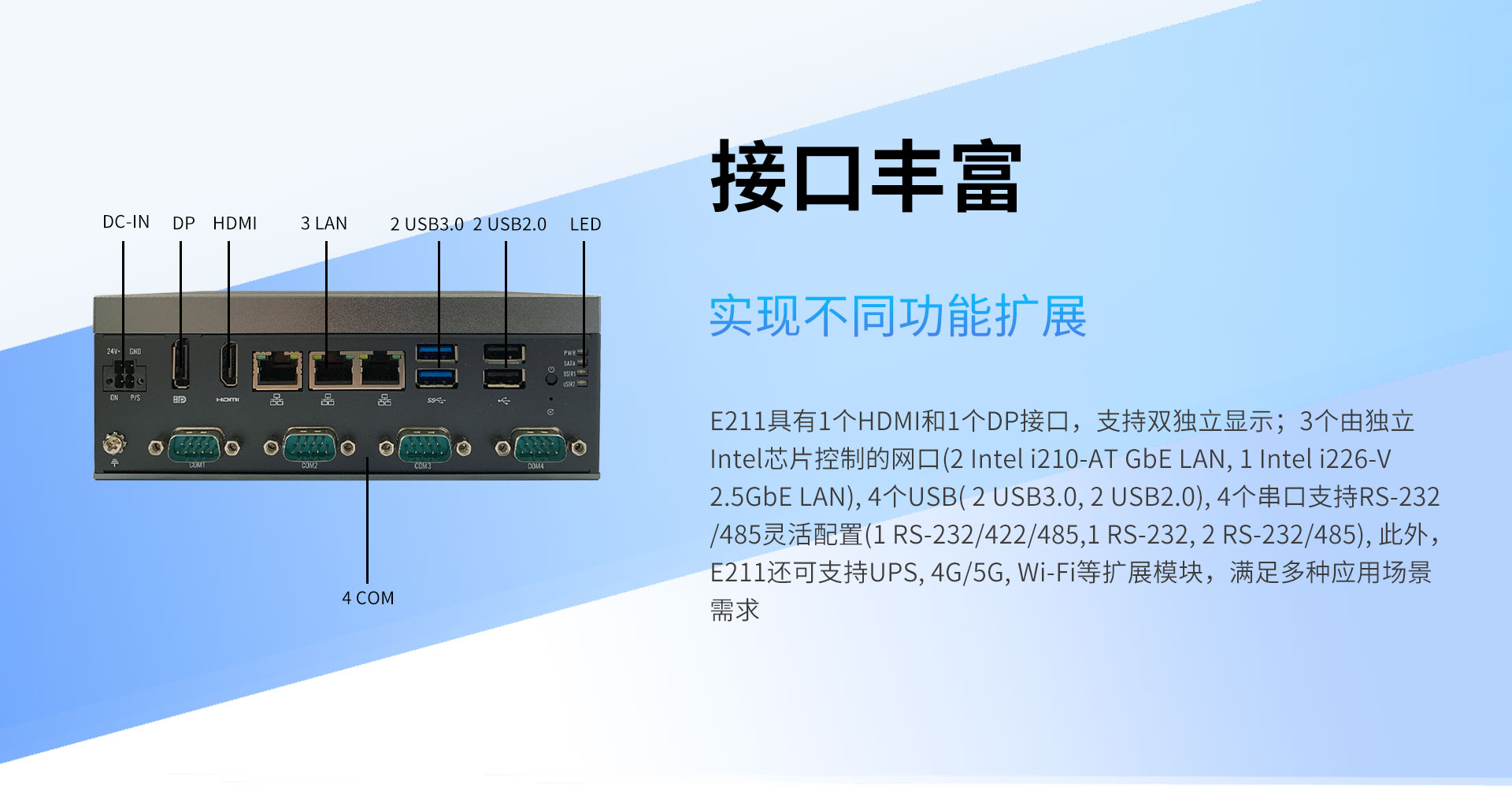

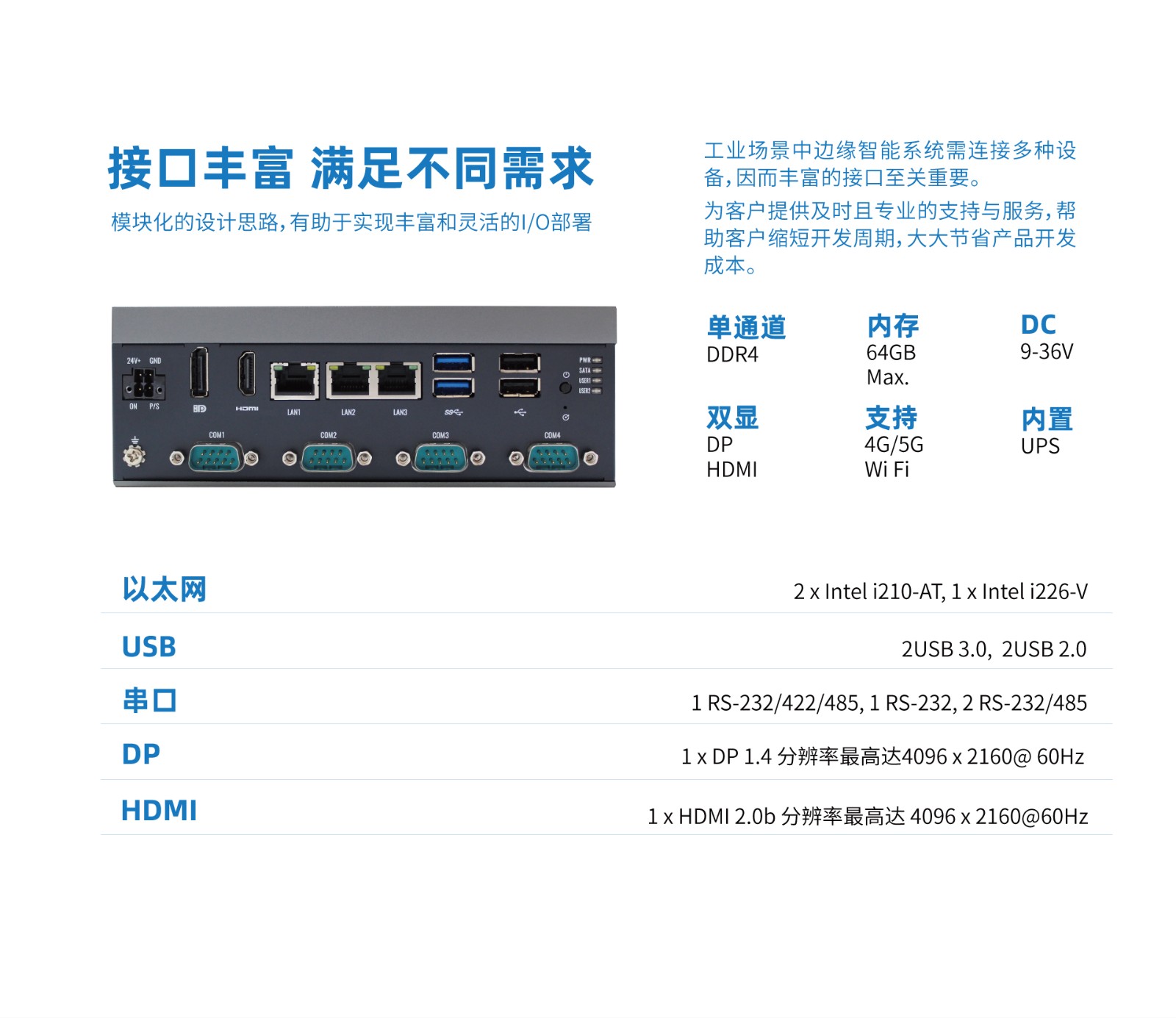

• 3 LAN (2 x Intel i210,1 x Intel i226)
• 1 RS-232/422/485,1 RS-232,2RS-232/485
• 2 USB 3.0, 2 USB 2.0
• 支持 4G/5G, Wi-Fi扩展
• Win 10/11 和 Linux多版本系统

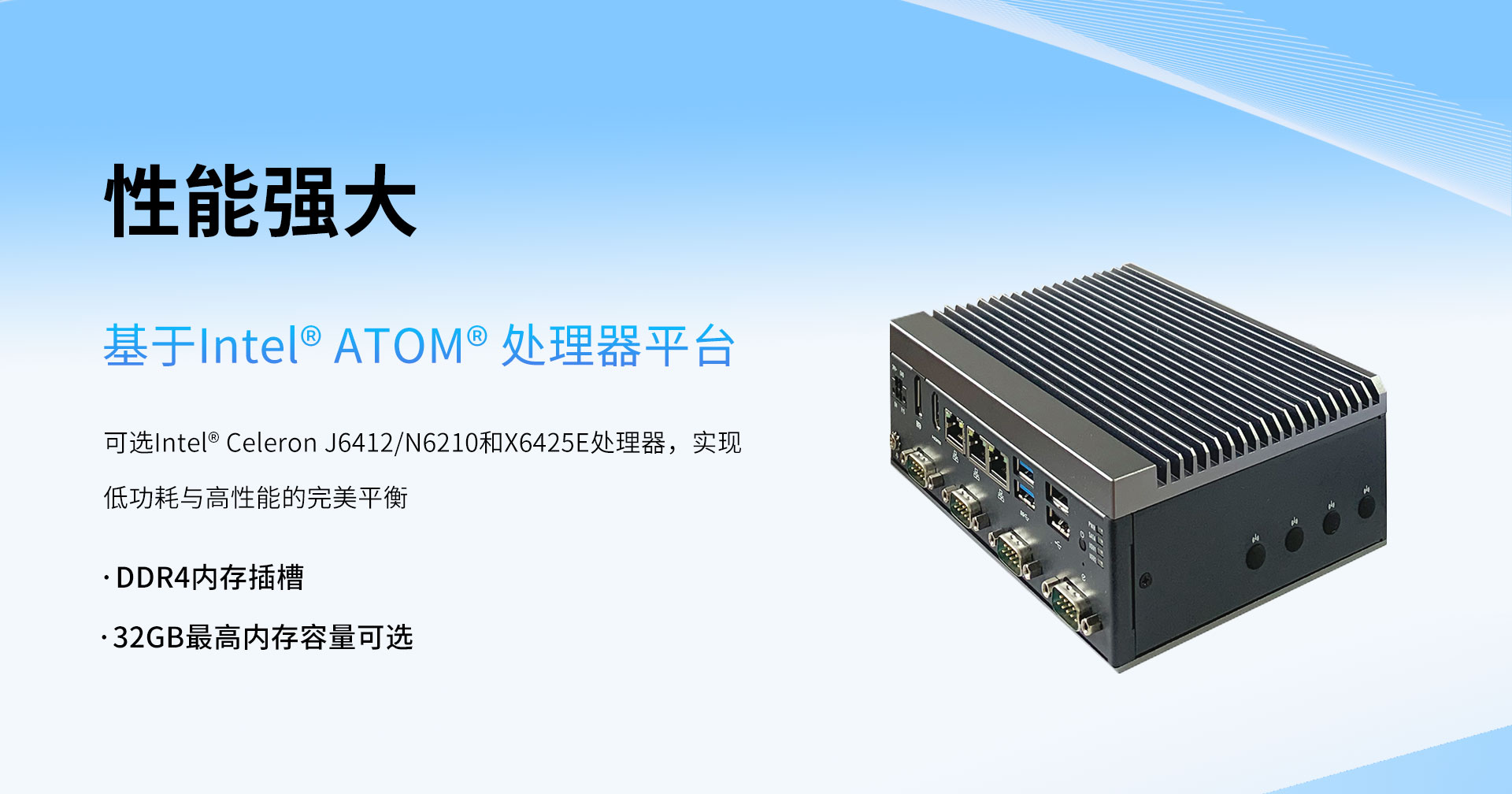

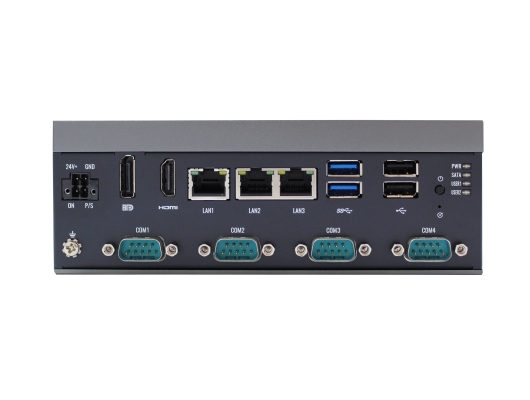

  • Intel Elkhart Lake J6412, N6210, X6425E
  • 2 x DDR4-3200 up to 32GB
  • 1 x HDMI, 1 x DP
  • 3 (2 x Intel i210,1 x Intel i226)
  • 2 x USB 3.0, 2 x USB 2.0 ,6 x COM
  • Windows 10/11, centos 8, ubuntu 20.04/22.04
  • 产品详情
  • 规格
  • 应用
  • 下载















规格 Specifications


Specs

Item

E211 Series

Processor System

CPU

Intel® Elkhart Lake platform J6412/N6210/X6425E CPU

TDP12W Max
BIOS

AMI 128Mbit SPI Flash

Memory

Technology

2 x DDR4 3200MT/s SO-DIMM

Max. Capacity

32 GB

Graphics

Controller

Intel Gen11 Graphics Engines (SoC integrated)

Features

DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC)

External IO

DP1 x DP1.4up to 4096 x 2160@60Hz
HDMI1 x HDMI 2.0b, up to 4096 x 2160@60Hz
Ethernet2 x Intel i210-AT GbE LAN, 1 x Intel i226-V 2.5GbE LAN
COM

COM1: RS-232/422/485, COM2: RS-232, COM3~4: RS-232/485

USB

2x USB2.0, 2 x USB3.0

Power DC Jack

Phoenix 4pin

Expansion
M.2 E-Key1 x M.2 2230 Support Wi-Fi
M.2 B-Key1 x M.2 3052 Support 4G/5G
M.2 M-Key1 x M.2 2280 Sata3.0
SATA1x SATA3.0
Internal USB2.03 x Internal USB2.0 (Pinout), 1 x Internal USB Type-A
SIM1 x Nano SIM
LEDLED LightsPower status, HDD R/W,USER1,USER2
Power

Supply Voltage

DC 9-36V  ±10%

Max. Consumption30W
Power ManagementAT/ATX

Others

Watch Dog

Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

TPM

TPM 2.0(optional)

Environment

Operating Temperature

0 ~ 60 °C(32~140°F)

Storage Temperature

-40°C ~ 85°C(-40~185°F)

Relative Humidity (Operating)

95% @ 40 °C (non-condensing)

Relative Humidity(Storage)

95% @ 60 °C (non-condensing)

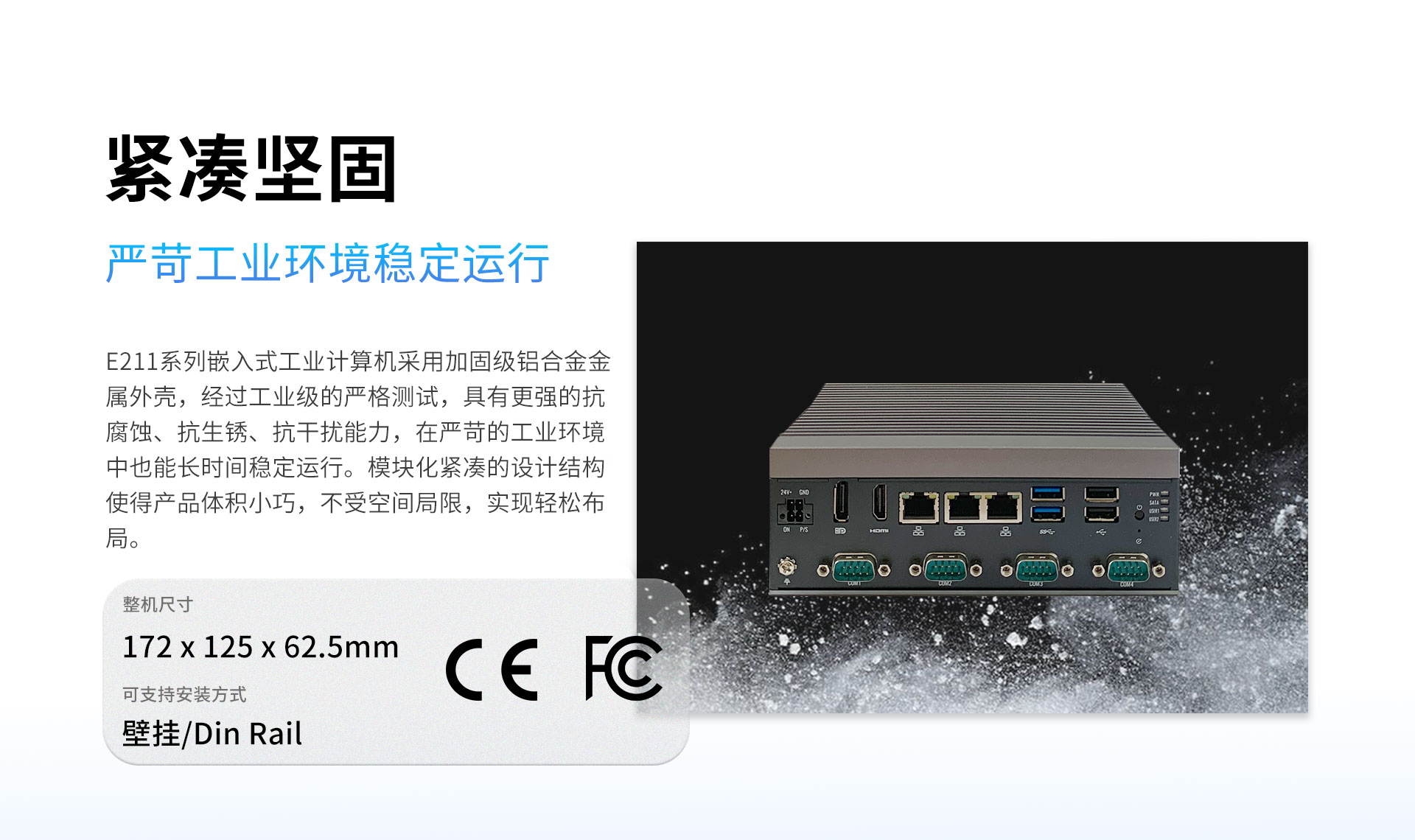

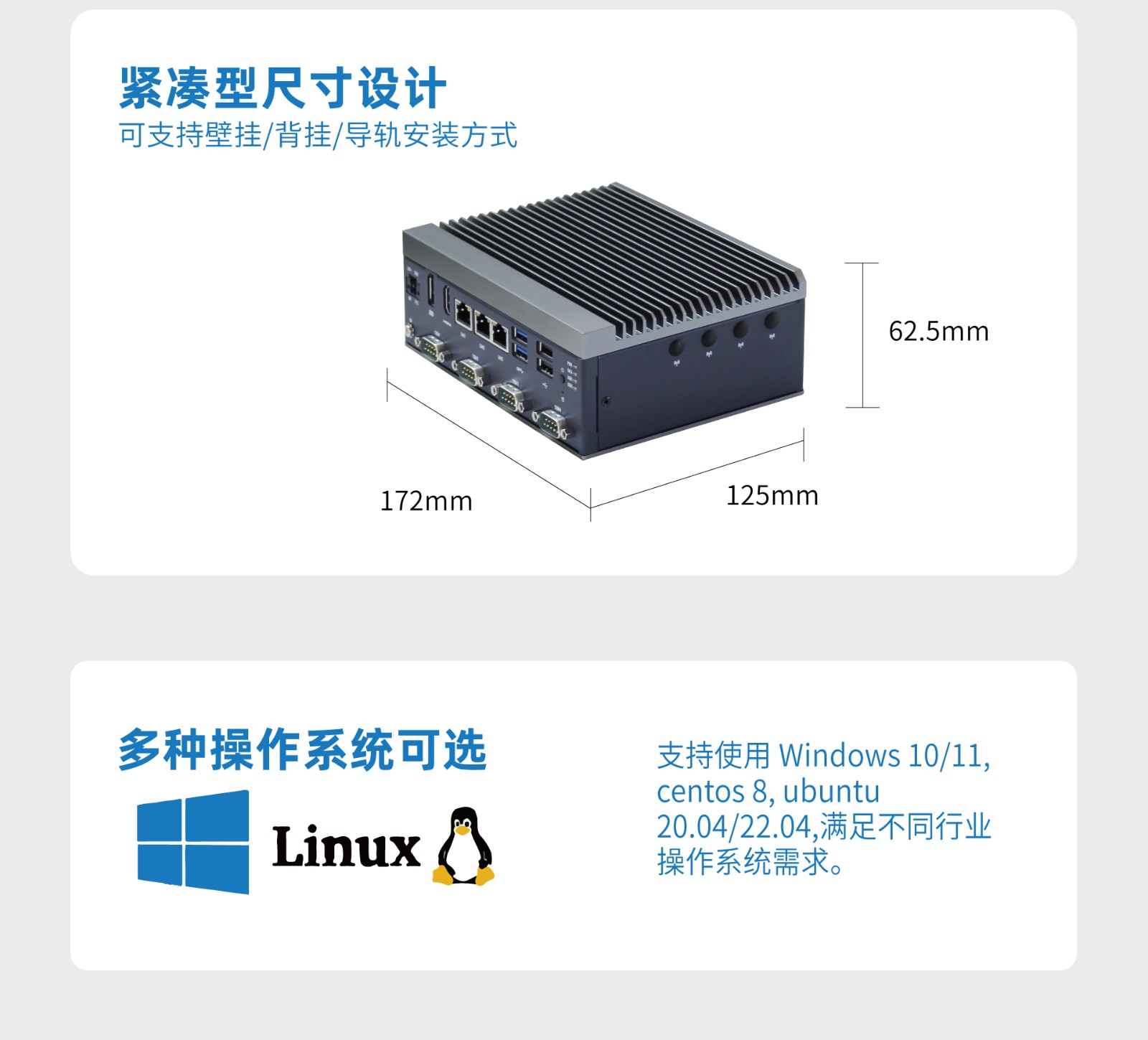

Physical CharacteristicsDimensions172 x 125 x 62.5mm(Lx Wx H)
InstallationWall-mounting/Din Rail
CertificationEMCCE, FCC
OS SupportOS SupportWindows 10/11, centos 8, ubuntu 20.04/22.04

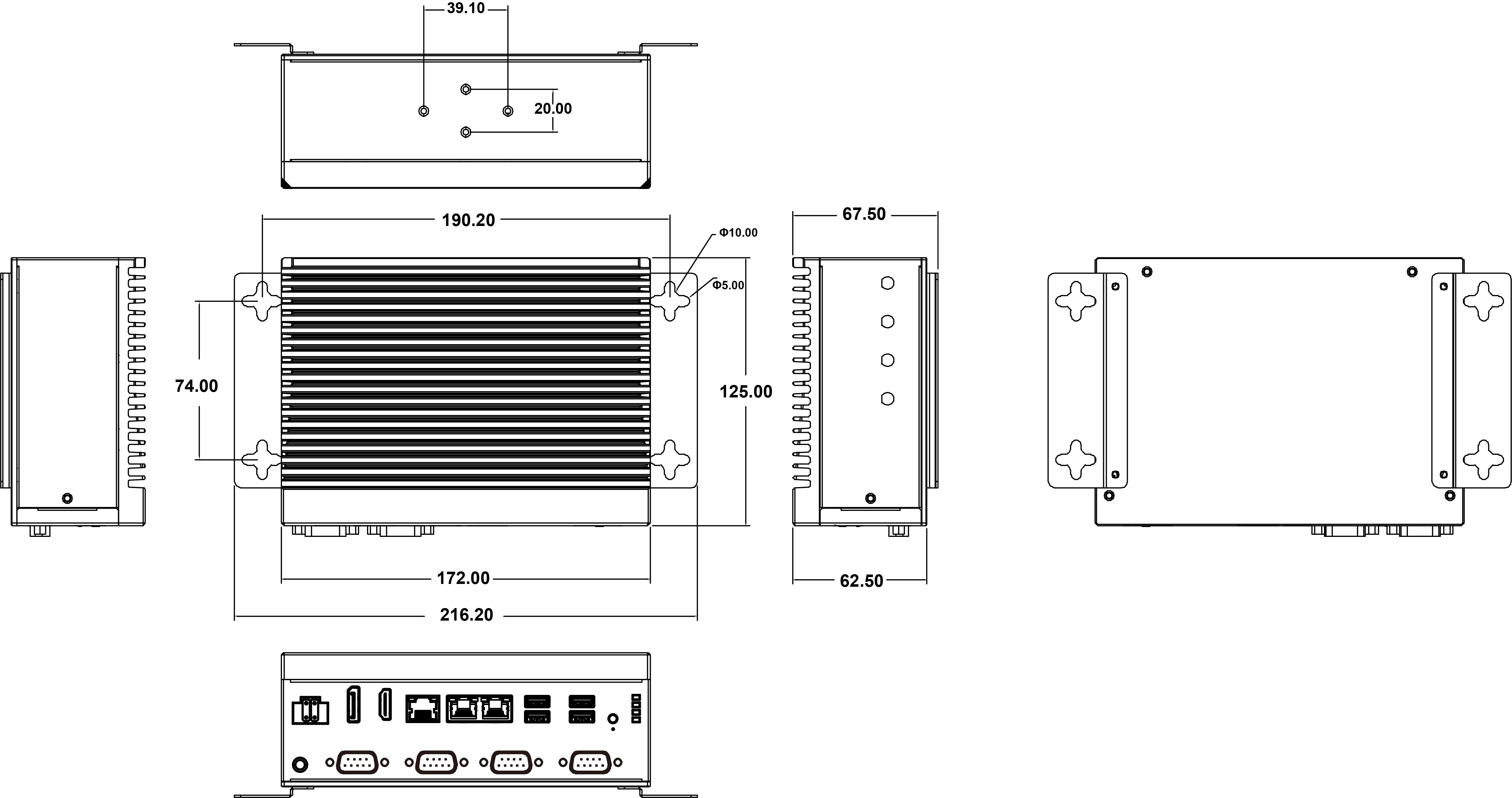

尺寸图 Dimensions

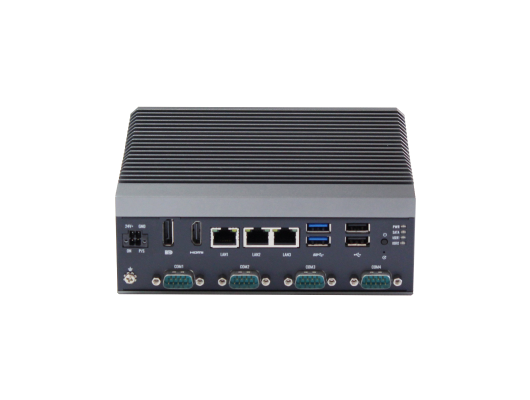

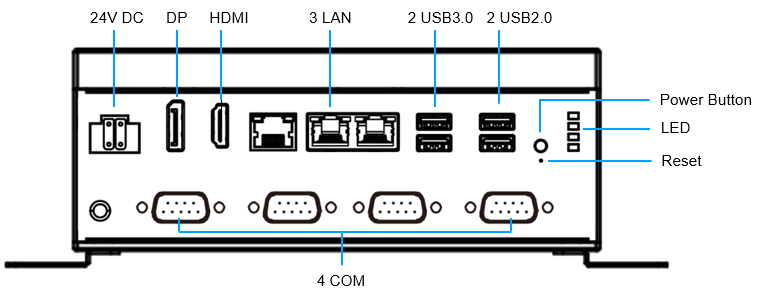

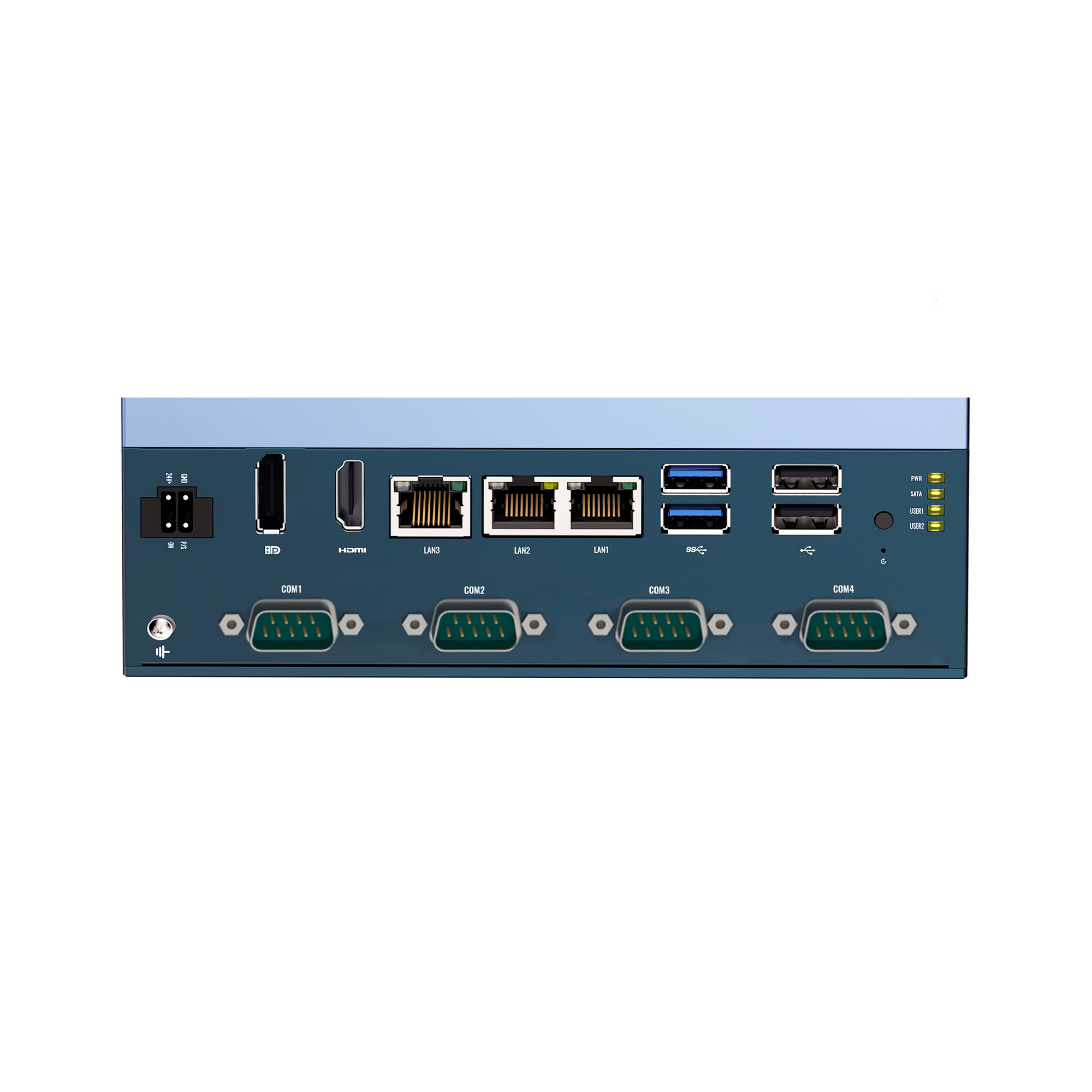

接口图 Interfaces
