Processor System

CPU

Intel® 6th/7th/8th/9th Gen Processors with LGA1151

Chipset

H110

AMI 8MB UEFI

Memory

Sockets

Dual channel 260-PIN DDR4  SO-DIMM

Capacity

Max. 32GB

Display

DP

2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz

VGA

1 x VGA, Max. 1920 x 1080@60Hz

Dual Display

Yes, DP + DP or DP + VGA

Audio

Controller

Realtek ALC662, High Definition Audio. Mic-in, Line-out

Ethernet

LAN

2 x Intel® i211-AT GbE, 1 x Intel® i219-LM GbE

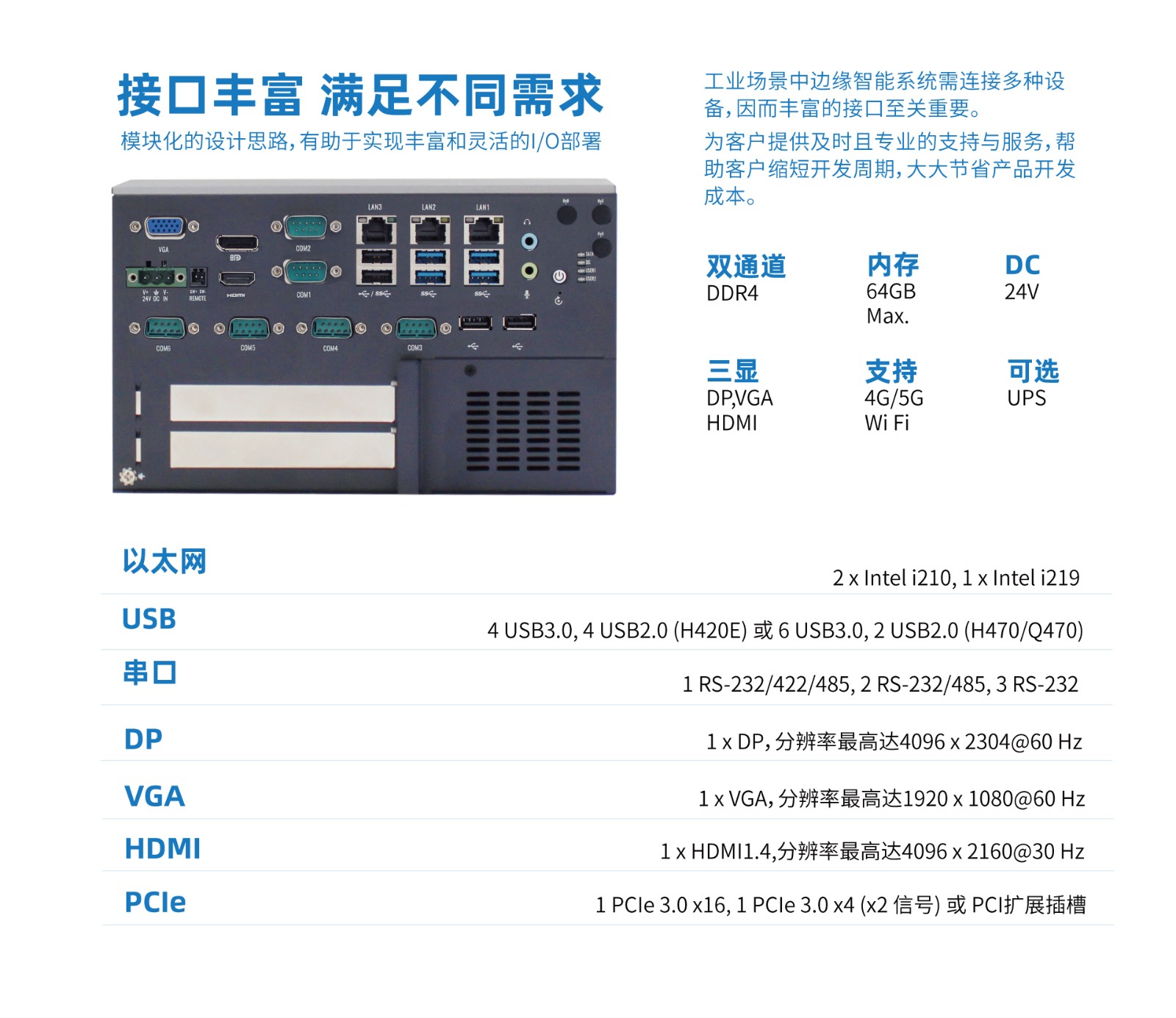

Peripheral Interface

USB

4 x USB 2.0,  4 x USB 3.0

COM

3 x RS-232/RS-485, 3 x RS232

LED

4 x LED(SATA/待机/内存/Watchdog）

Reset

1 x Reset Button

Storage

SATA3.0

1 x SATA 3.0 for 2.5 inches storages

m.2

1 x m.2

Expansion

Mini-PCIe

1 x full-size mini-PCIe, Support WLAN/WWAN module

USIM

1 x USIM, Support 3G/4G LTE

Internal USB

1 x USB 2.0 internal

PCIe/PCI

1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2/PCI

Watchdog

Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec

Power Supply

DC Input

24V DC

OS

Microsoft Windows

Windows 7(Intel® 6th Gen CPU Only)，Windows 10 64Bit

Linux

Yes

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Desktop/Wall Mounting

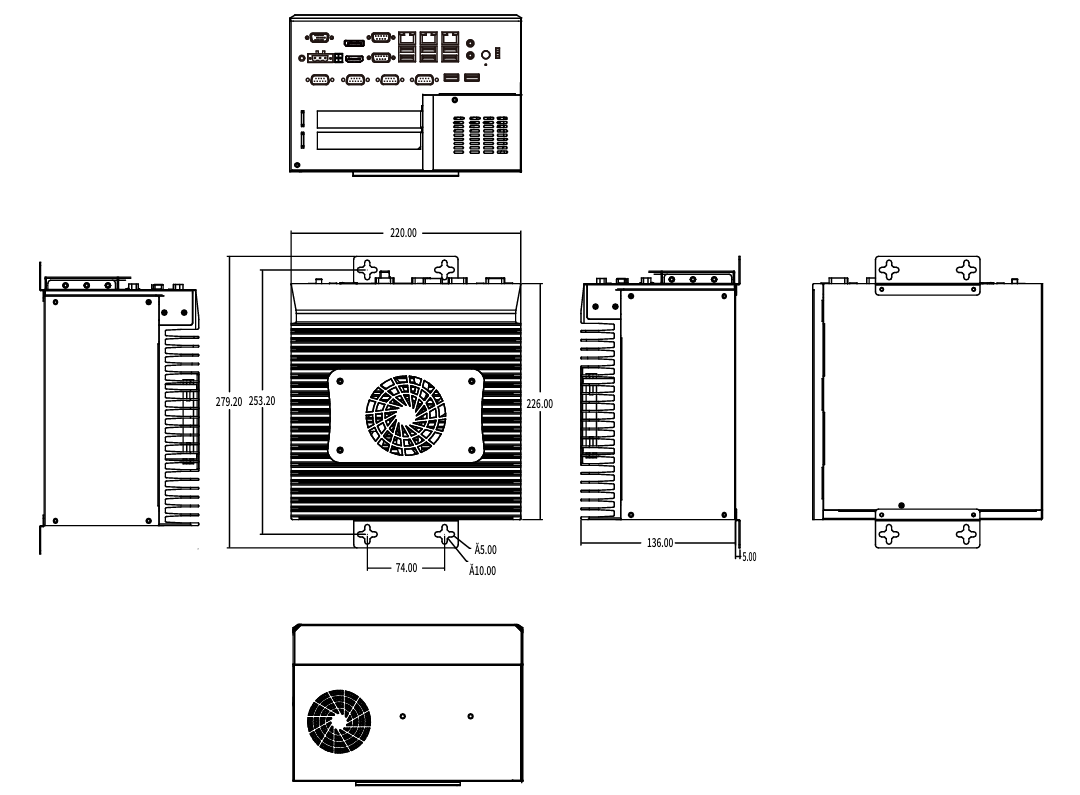

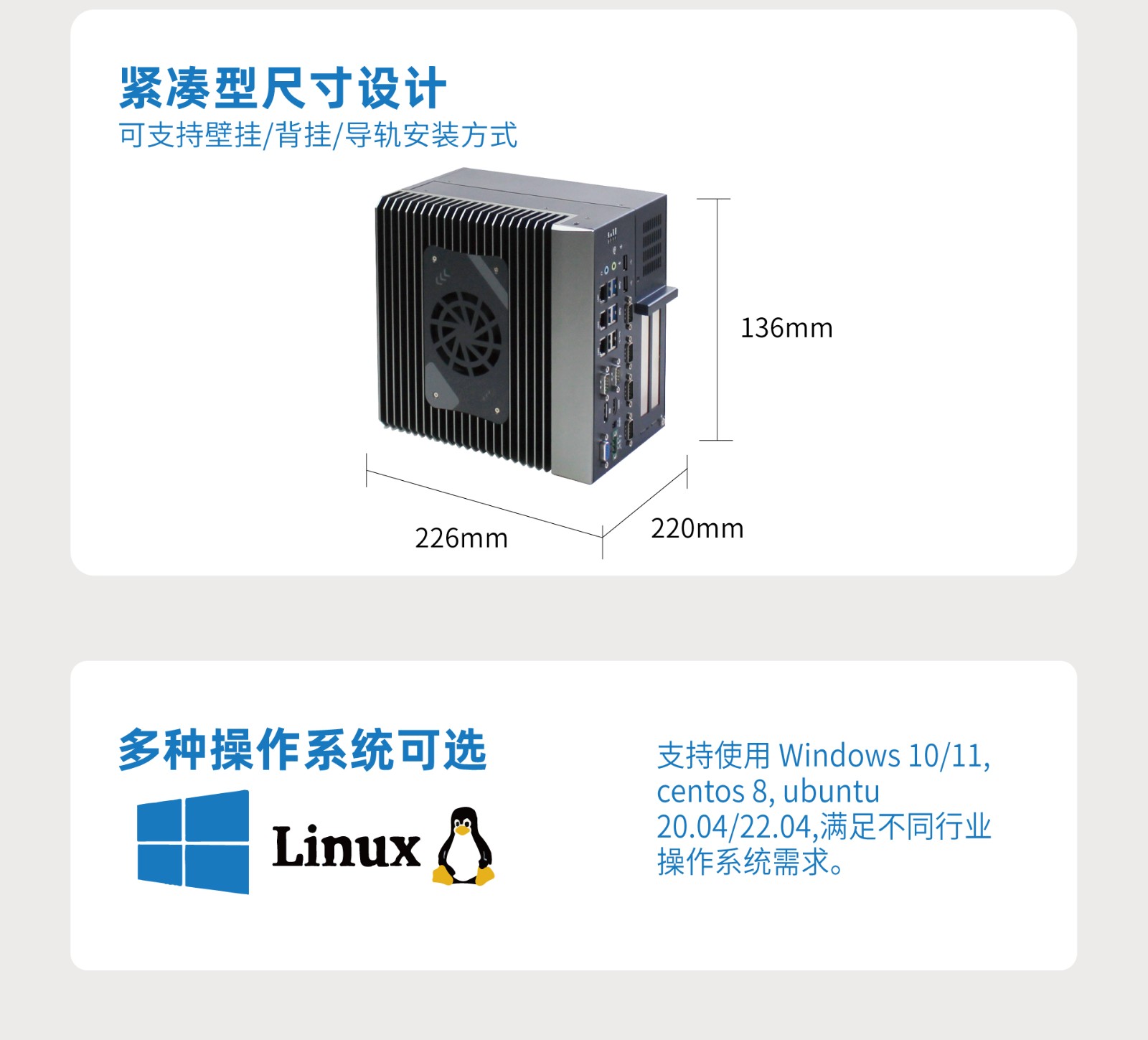

Dimensions

220 x 226 x 136mm (LxWxH)

Weight

4.0 Kg

Environment

Operating Temperature

0°C~50°C, airflow 0.7m / s

Storage Temperature

-40°C~80°C

Relative Humidity

10~95% @ 40°C ( Non-Condensing )

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration,  5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCC Class B
