规格 Specifications
Item | Sub-Item | Description |

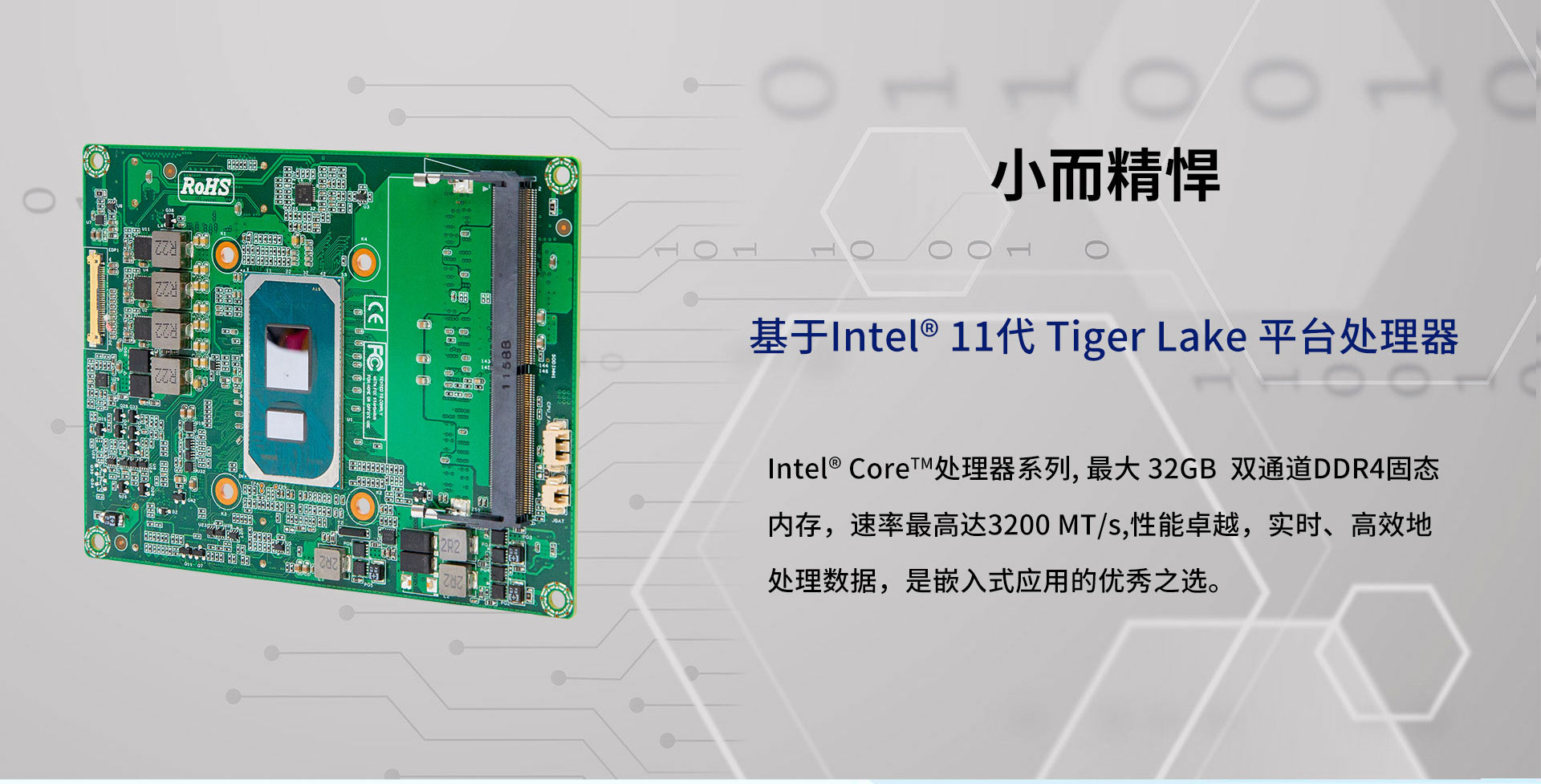

Processor System | CPU | 11th Gen. Intel® Core™ Processor U-Series |
TDP | 15W | |
Memory | Technology | DDR4 SO-DIMM, up to 3200 MT/s |
Capacity | 32 GB | |
Graphics | Controller | Intel® Iris® Xe Graphics/Intel® UHD Graphics |
| 2D&3D/HW Acceleration | HW Encode: Supports AVC, MPEG-2, HEVC, and VP9. HW Decode: Supports Direct3D* 9 Video API (DXVA2),Direct3D12 Video API | |
Display | DP | 1 (Resolution up to 4096 x 2304 @ 60 Hz) |
| Multiple Display | Dual displays with each display combination | |

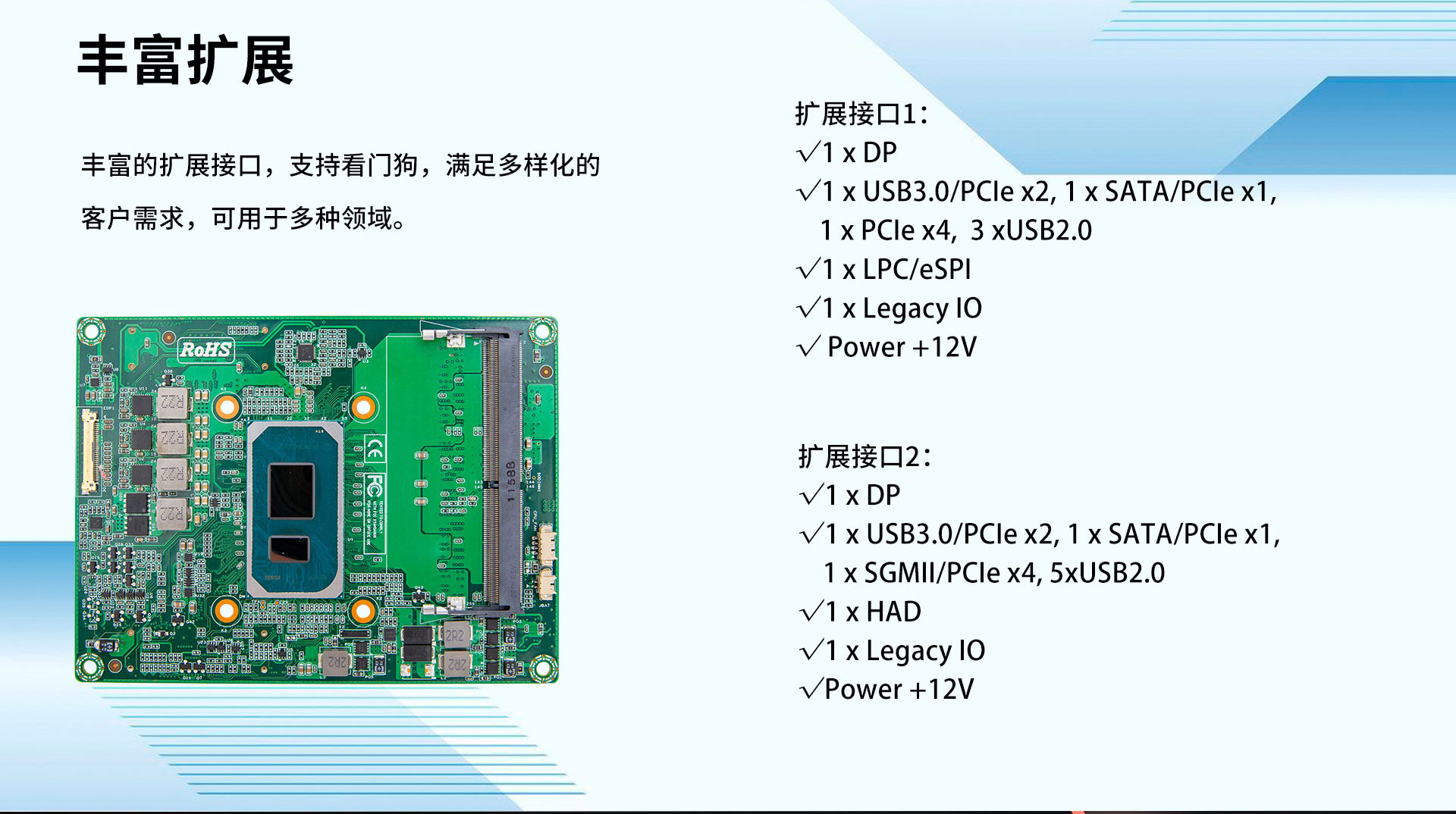

| Expansion CONN1 | Management | 1 |
| DP++ | 1 | |
| USB3.0/PCIe x2 | 1 | |
| SATA/PCIe x1 | 1 | |
| PCIe x4 | 1 | |
| USB2.0 | 3 | |
| LPC/eSPI | 1 | |
| Legacy IO | 1 | |
| Power +12V | 1 | |
Expansion CONN2 | DP++ | 1 |
USB3.0/PCIe x2 | 1 | |
SATA/PCIe x1 | 1 | |
SGMII/PCIe x4 | 1 | |
| USB2.0 | 5 | |
| HAD | 1 | |
| Legacy IO | 1 | |
| Power +12V | 1 | |
OS | OS | Windows 10 /Linux |

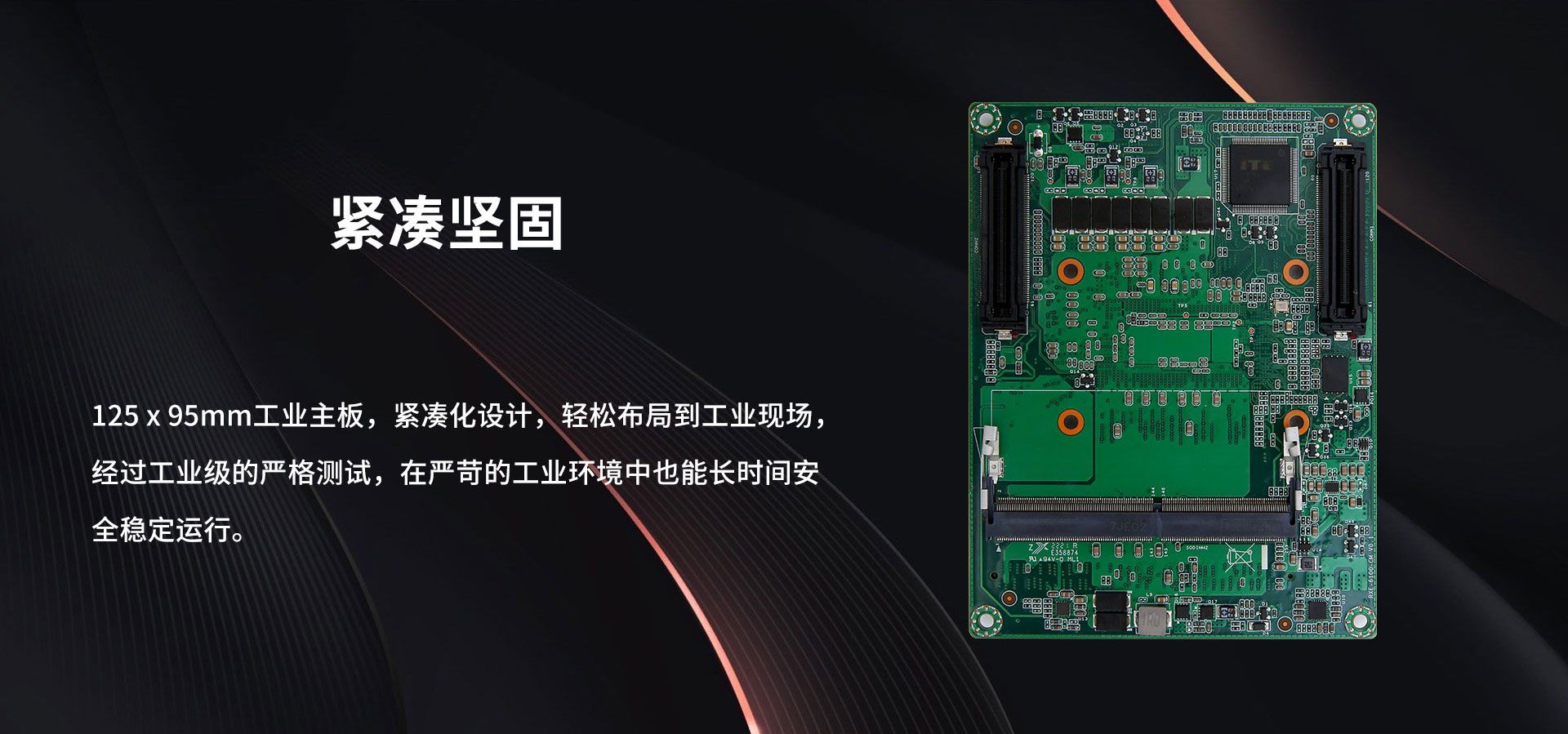

| Size | L x W | 125 x 95mm |
Environment | Temperature | Operating 0 ~ 60 °C (32 ~ 140 °F) Non-Operating -40 ~ 85 °C (-40 ~ 185 °F) |
Humidity | Operating 40 °C @ 95% RH Non-condensing Non-Operating 60 °C @ 95% RH Non-condensing |
