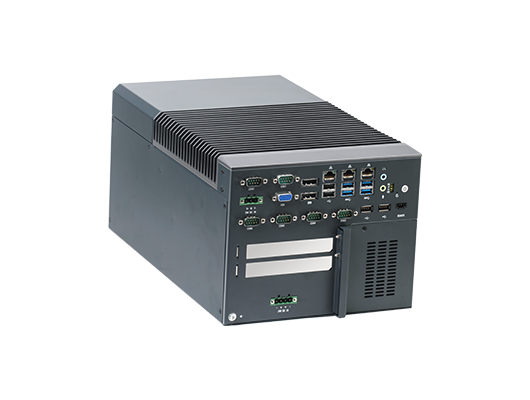

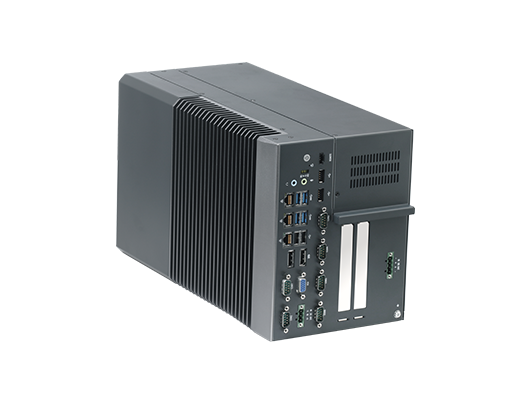

E531系列
• Intel®第六至九代平台Core 处理器
• 2 DP和1 VGA
• 3 GbE LAN (2 x Intel i210, 2 x Intel i219)
• 1 RS-232/422/485, 2 RS-232, 3 RS-232/485
• 4 USB 3.0, 4 USB 2.0
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x4 (x2 信号)
• 支持最高 RTX 4080 显卡
• Win 7 (仅6代), Win 10, Linux多版本系统

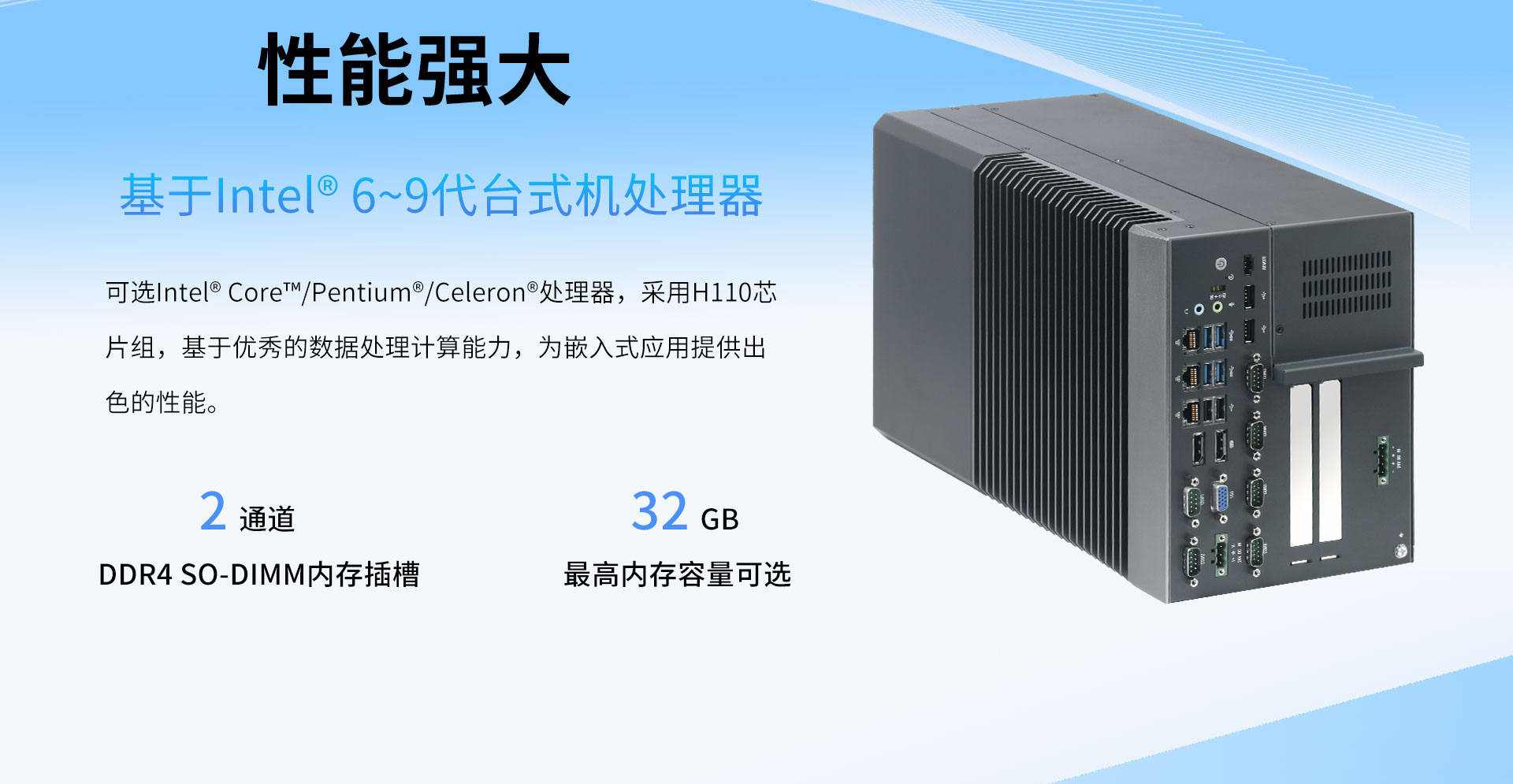

  • Intel 第六至九代台式机处理器(LGA1151)
  • 2x DDR4 SO-DIMM(Max.32GB)
  • 2 DP 、1 VGA, 支持DP+DP/DP+VGA 双独立显示
  • 3 (2 x Intel i210,1 x Intel i219)
  • 4 USB 3.0, 4 USB 2.0, 1 RS-232/422/485, 2 RS-232, 3 RS-232/485
  • Windows 7(仅第六代支持),Windows 10, centos 7/8, ubuntu 18.04~24.04
  • 产品详情
  • 规格
  • 应用
  • 下载






规格 Specifications




Specs

Item

E531

Processor System

CPU

Intel® 6th/7th/8th/9th Gen Processors with LGA1151

Chipset

H110

BIOS

AMI 8MB UEFI

Memory

Sockets

Dual channel 260-pin DDR4  SO-DIMM

Capacity

Max. 32GB

Display

DP

2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz

VGA

1 x VGA, Max. 1920 x 1080@60Hz

Dual Display

Yes, DP + DP or DP + VGA

Audio

Controller

1 x Mic-in&Line-out

Ethernet

LAN

2 x Intel® i211-AT GbE, 1 x Intel® i219-LM GbE

Peripheral Interface

USB

4 x USB2.0, 4 x USB3.0

COM

3 x RS-232/RS-485, 3 x RS232

Remote

1

Storage

SATA3.0

1 x SATA 3.0 for 2.5 inches storages

m.2

1 x m.2 2280

Expansion

Mini-PCIe

1 x full-size mini-PCIe, Support WLAN/WWAN module

USIM

1 x USIM, Support 3G/4G LTE

Internal USB

1 x USB 2.0 internal

PCIe

1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2

Watchdog

Output/Interval

Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec

Power Supply

DC Input

24V DC

OS

Microsoft Windows

Windows 7(Intel® 6th Gen CPU Only),Windows 10 64Bit

Linux

Yes

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Desktop/Wall Mounting

Dimensions

220 x 360 x 176mm (LxWxH)

Weight

5 Kg

Environment

Operating Temperature

0°C~50°C, airflow 0.7m / s

Storage Temperature

-40°C~80°C

Relative Humidity

10~95% @ 40°C ( Non-Condensing )

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCC Class B




尺寸图 Demensions

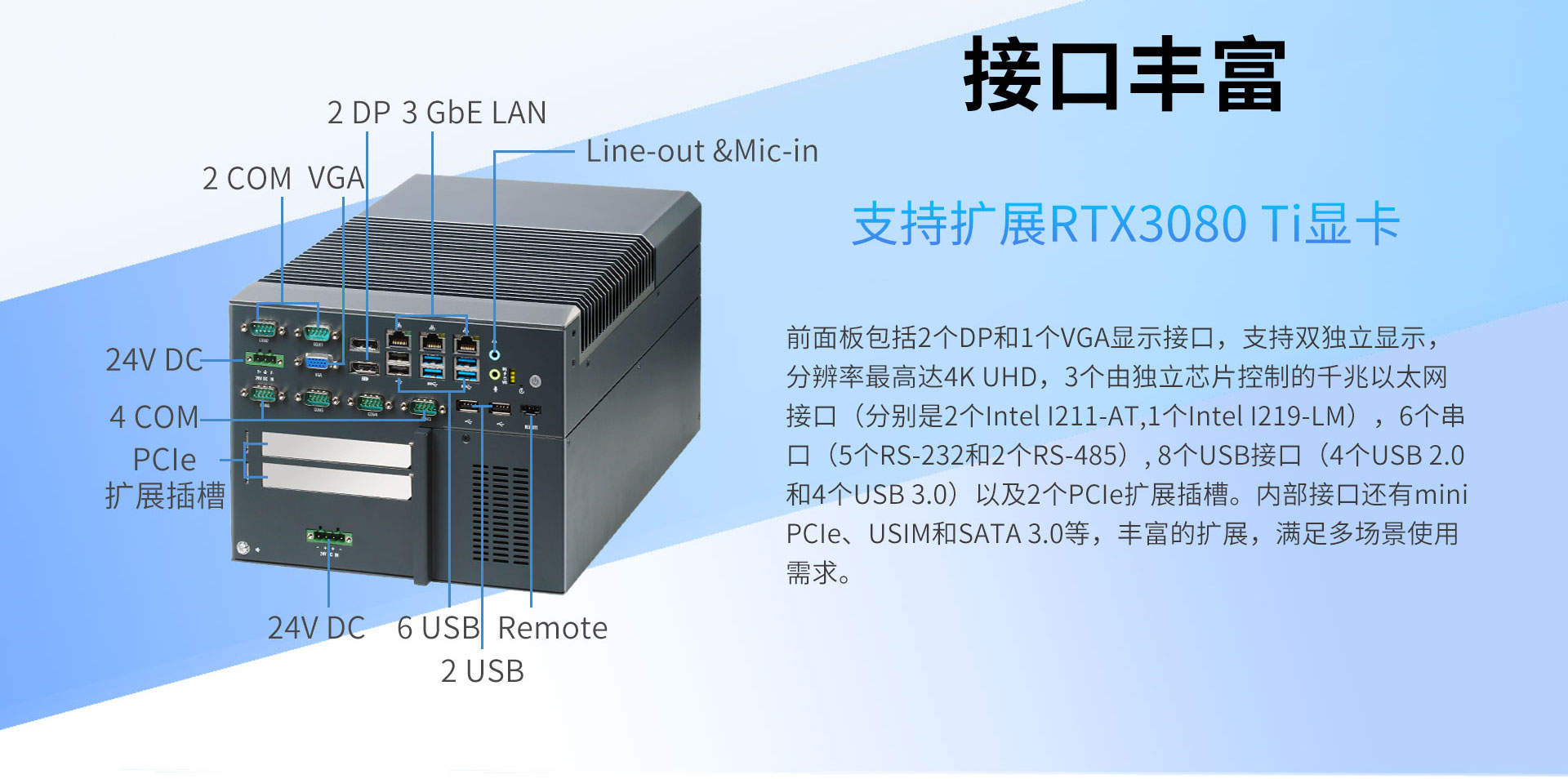

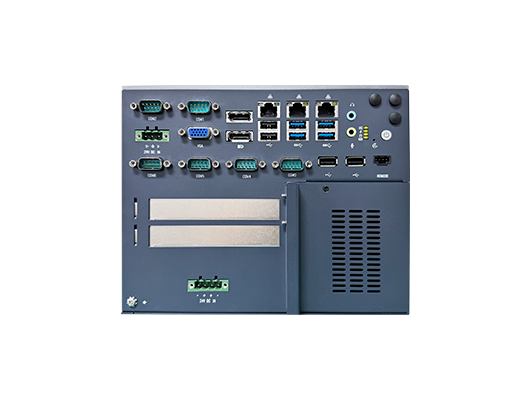

接口图 Interfaces
