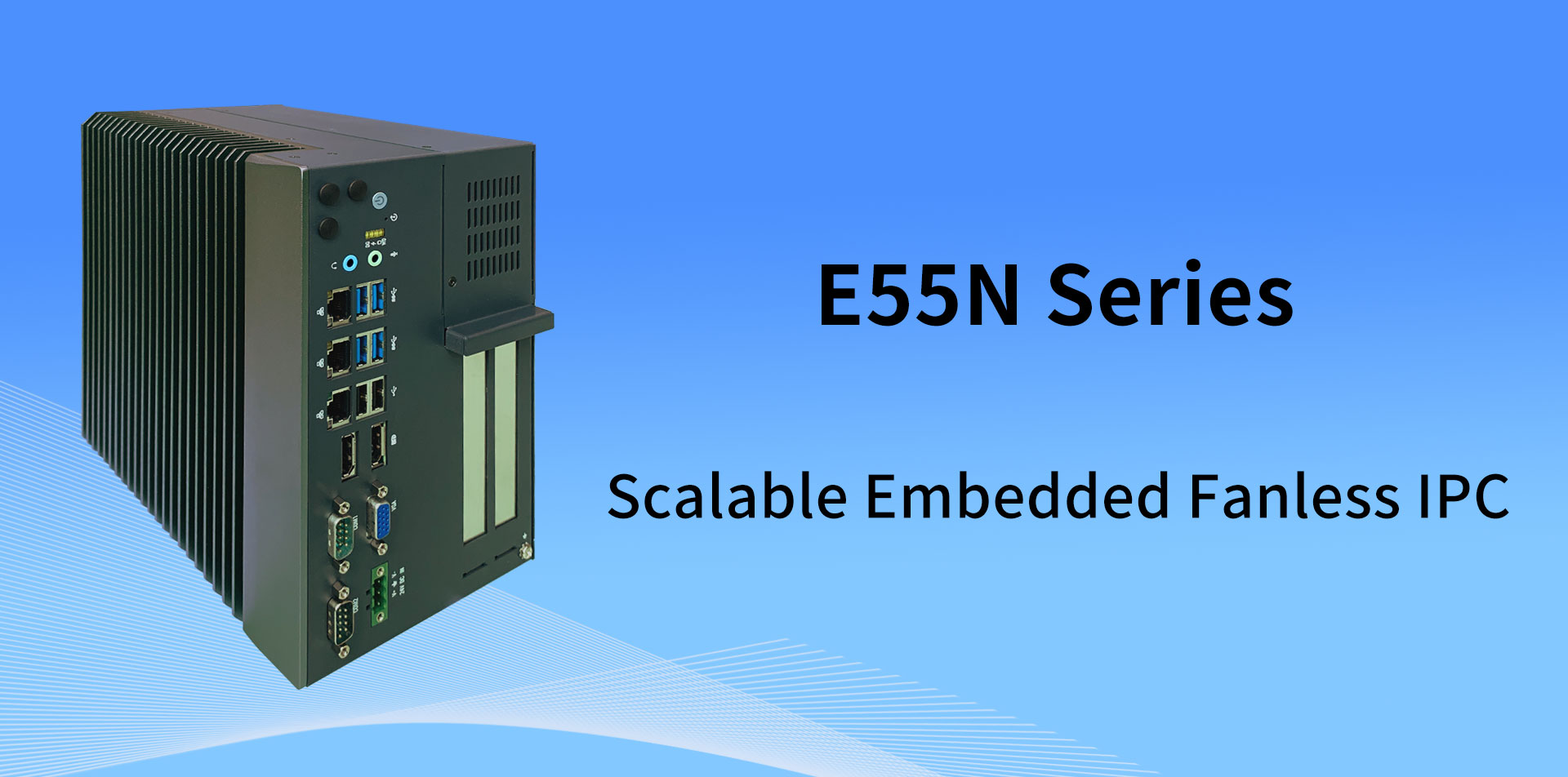

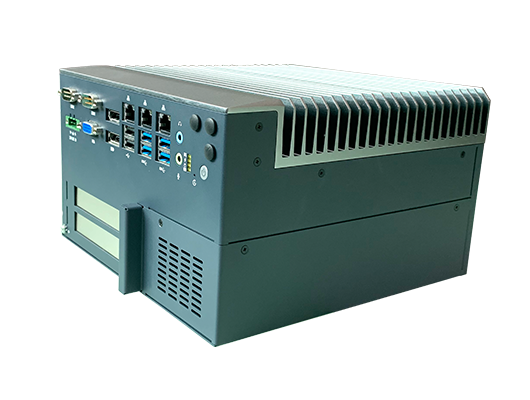

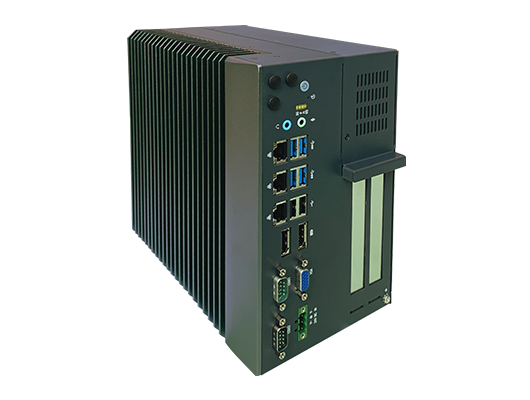

E55N Series
• Intel®Gen 6th to 9th processor
• 2 DP and 1 VGA
• 3 GbE LANs(2 x Intel i211-AT,1 x Intel i219-LM)
• 2 x Serial port,6 x USB
• 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2/PCI
• Rugged and Compact

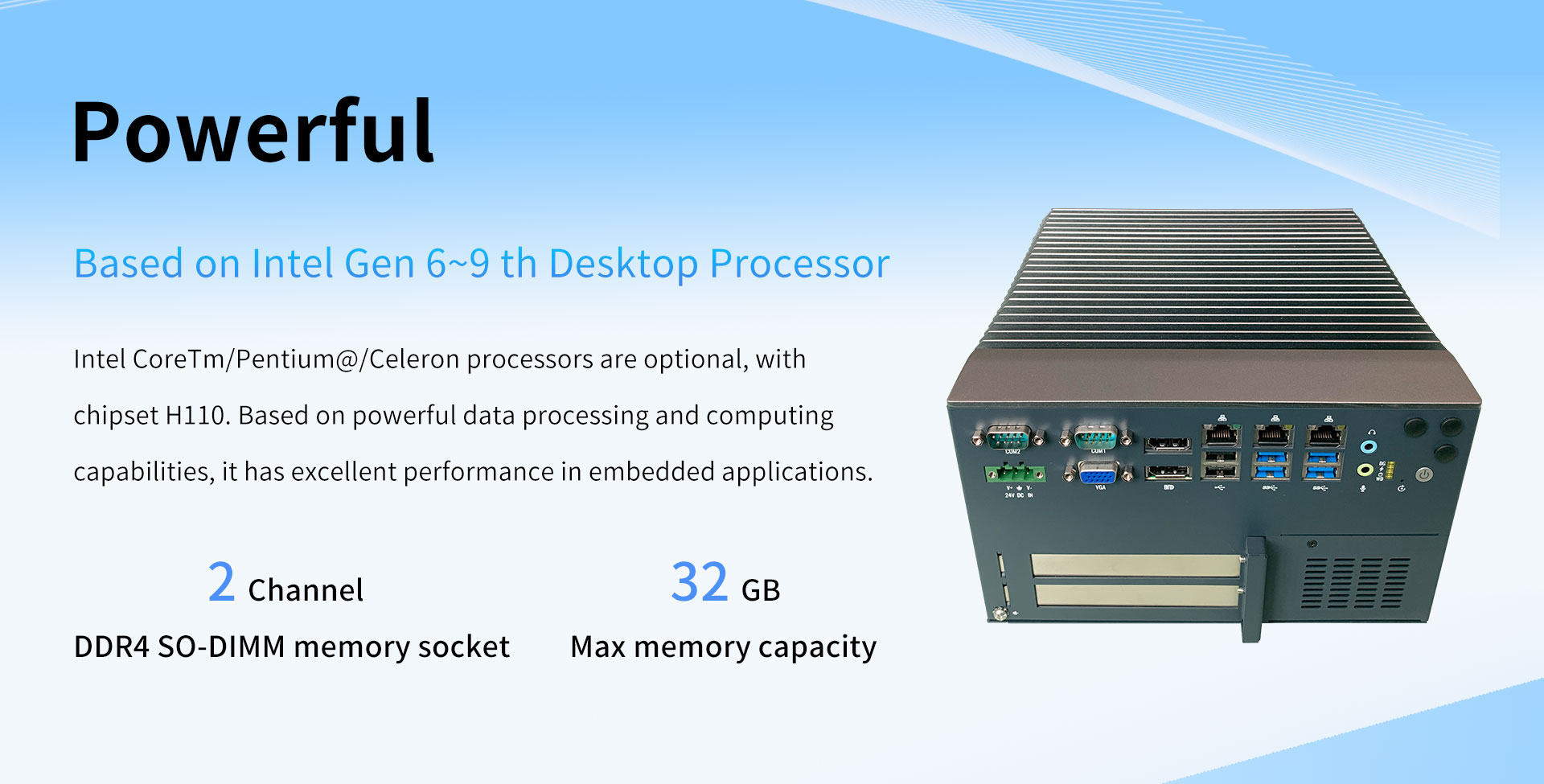

  • Intel Gen 6th to 9th Processor(LGA1151)
  • 2x DDR4 SO-DIMM (Max.32GB)

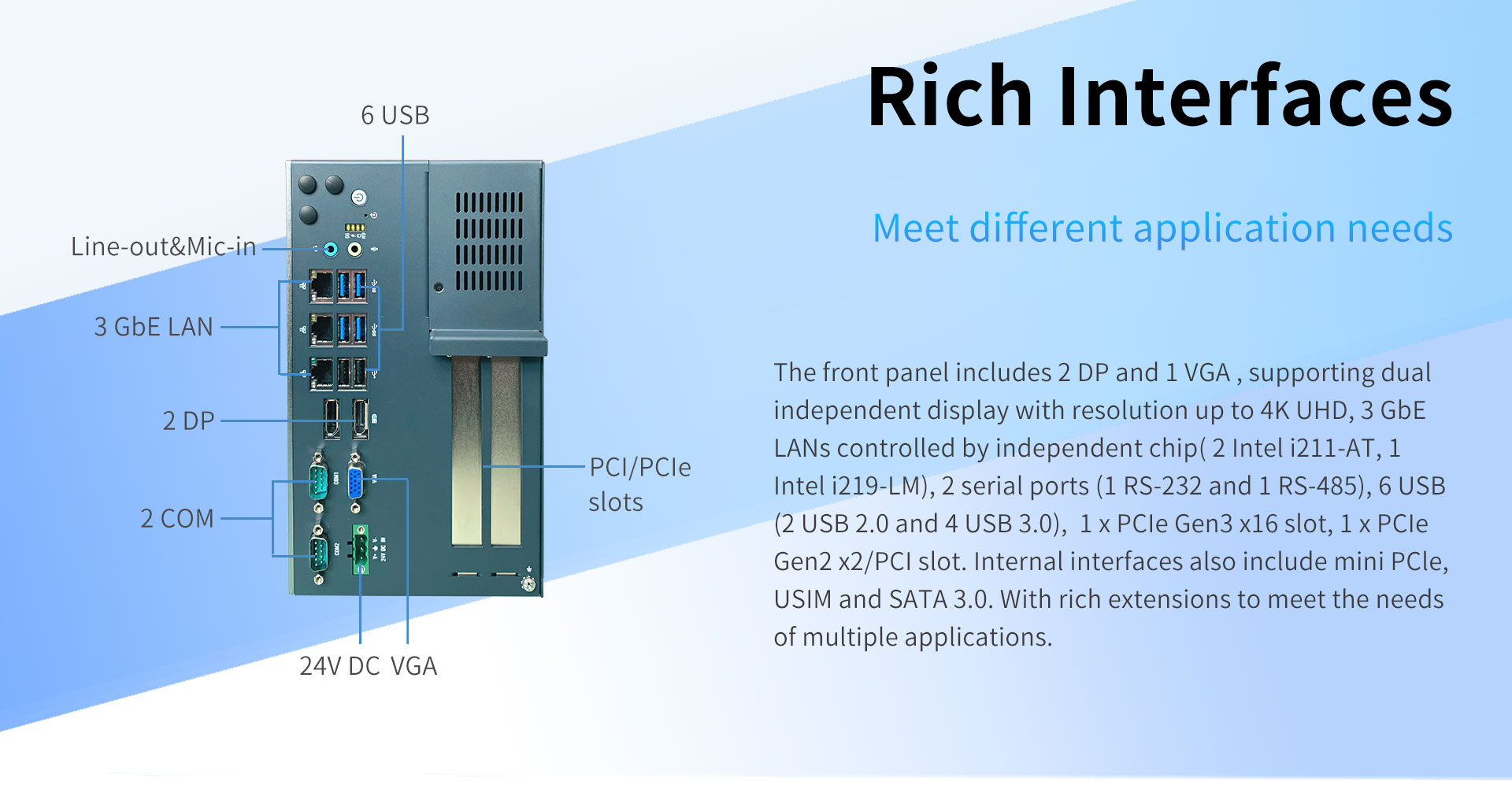

  • 2 x DP(4K2K resolution)、1 x VGA. Support DP+DP/DP+VGA dual independent display
  • 3(1 x Intel i211-AT,2 x Intel i219-LM)
  • 4 x USB 3.0,2 x USB 2.0,1 x RS-232,1 x RS-232/485
  • Windows 7(Only Gen 6th),Windows 10 64 Bit, Linux
  • Product Details
  • Specification
  • Application
  • Download














规格 Specifications



Specs

Item

  E55N Series

Processor System

CPU

Intel® 6th/7th/8th/9th Gen Processors with LGA1151

Chipset

H110

BIOS

AMI 8MB UEFI

Memory

Sockets

Dual channel 260-PIN DDR4  SO-DIMM

Capacity

Max. 32GB

Display

DP

2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz

VGA

1 x VGA, Max. 1920 x 1080@60Hz

Dual Display

Yes, DP + DP or DP + VGA

Audio

Controller

Realtek ALC662, High Definition Audio. Mic-in, Line-out

Ethernet

LAN

2 x Intel® i211-AT GbE, 1 x Intel® i219-LM GbE

Peripheral Interface

USB

2 x USB 2.0,  4 x USB 3.0

COM

1 x RS-232/RS-485, 1 x RS232

LED

4 x LED(SATA/待机/内存/Watchdog)

Reset

1 x Reset Button

Power Button1

Storage

SATA3.0

1 x SATA 3.0 for 2.5 inches storages

m.2

1 x m.2

Expansion

Mini-PCIe

1 x full-size mini-PCIe, Support WLAN/WWAN module

USIM

1 x USIM, Support 3G/4G LTE

Internal USB

1 x USB 2.0 internal

PCIe/PCI

1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2/PCI

Watchdog

Output/Interval

Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec

Power Supply

DC Input

24V DC

OS

Microsoft Windows

Windows 7(Intel® 6th Gen CPU Only),Windows 10 64Bit

Linux

Yes

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Desktop/Wall Mounting

Dimensions

220 x 226 x 136mm (LxWxH)

Weight

4 Kg

Environment

Operating Temperature

0°C~50°C, airflow 0.7m / s

Storage Temperature

-40°C~80°C

Relative Humidity

10~95% @ 40°C ( Non-Condensing )

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration,  5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCC Class B


CPU List

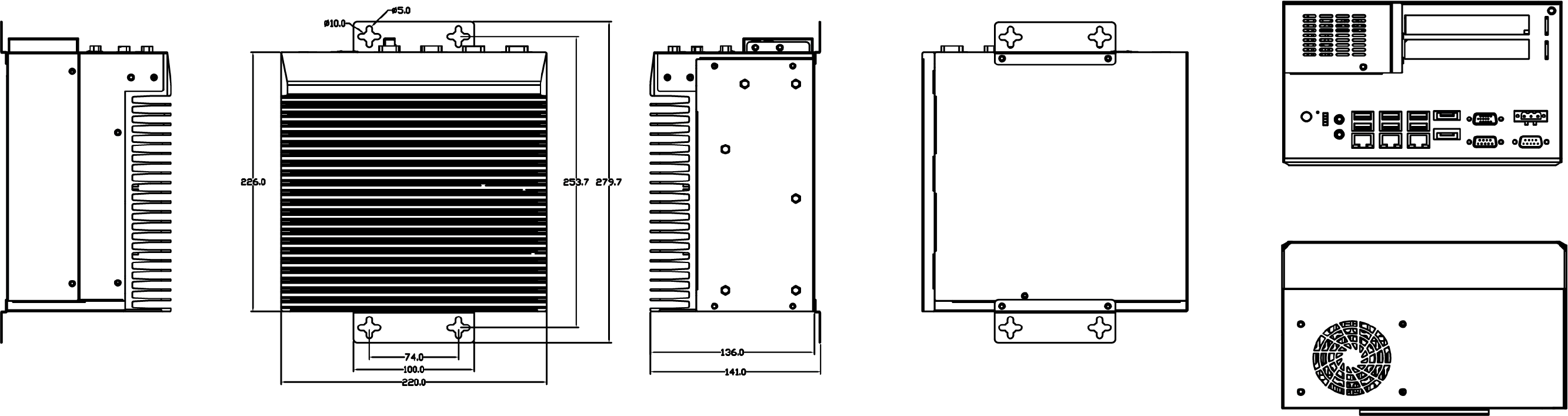

尺寸图 Dimensions

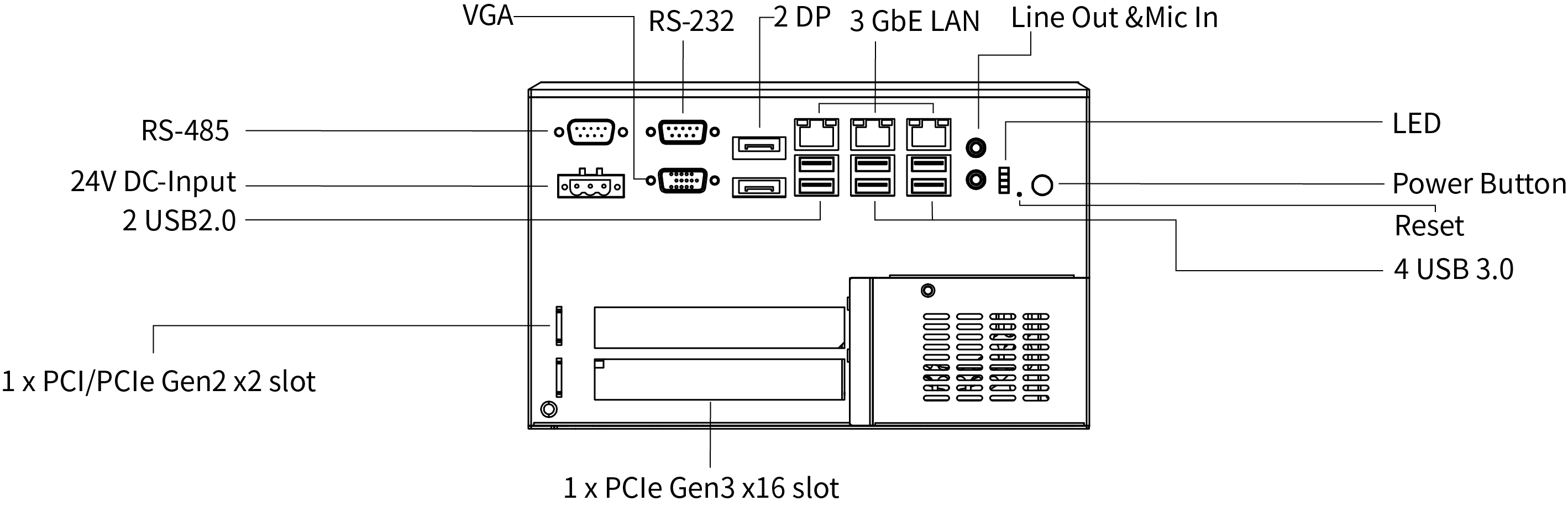

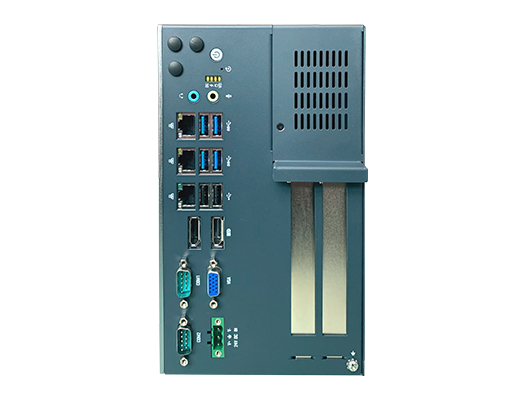

接口图 Interfaces








  • E55N Series Embedded Industrial Computer Datasheet
    Size:670KB
    Download
