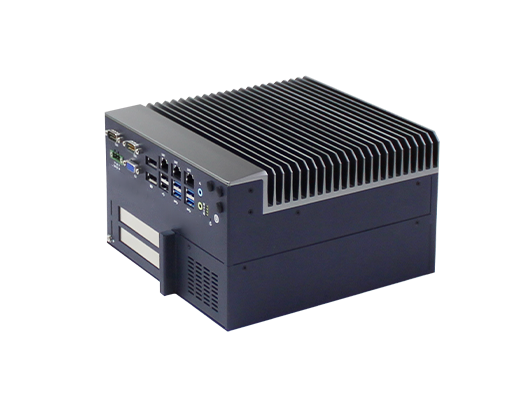

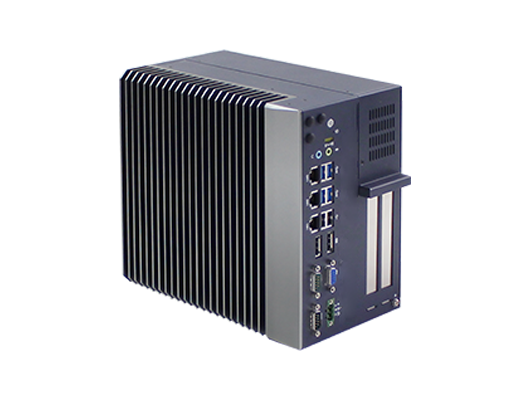

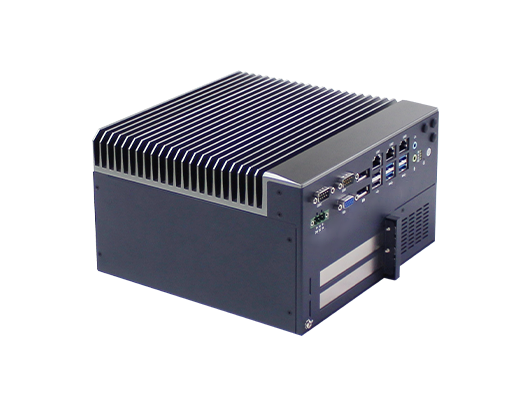

E55N系列
• Intel 第六至九代平台Core处理器
• 2 DP, 1 VGA
• 3 GbE LAN (2 x Intel i210, 1 x Intel i219)
• 1 RS-232/422/485, 1 RS-232
• 4 USB 3.0, 2 USB 2.0
• 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4 (X2信号)/ PCI
• Win 7 (仅6代), Win 10, centos 7/8, ubuntu 18.04/20.04/22.04
  • Intel 第六至九代台式机处理器(LGA1151)

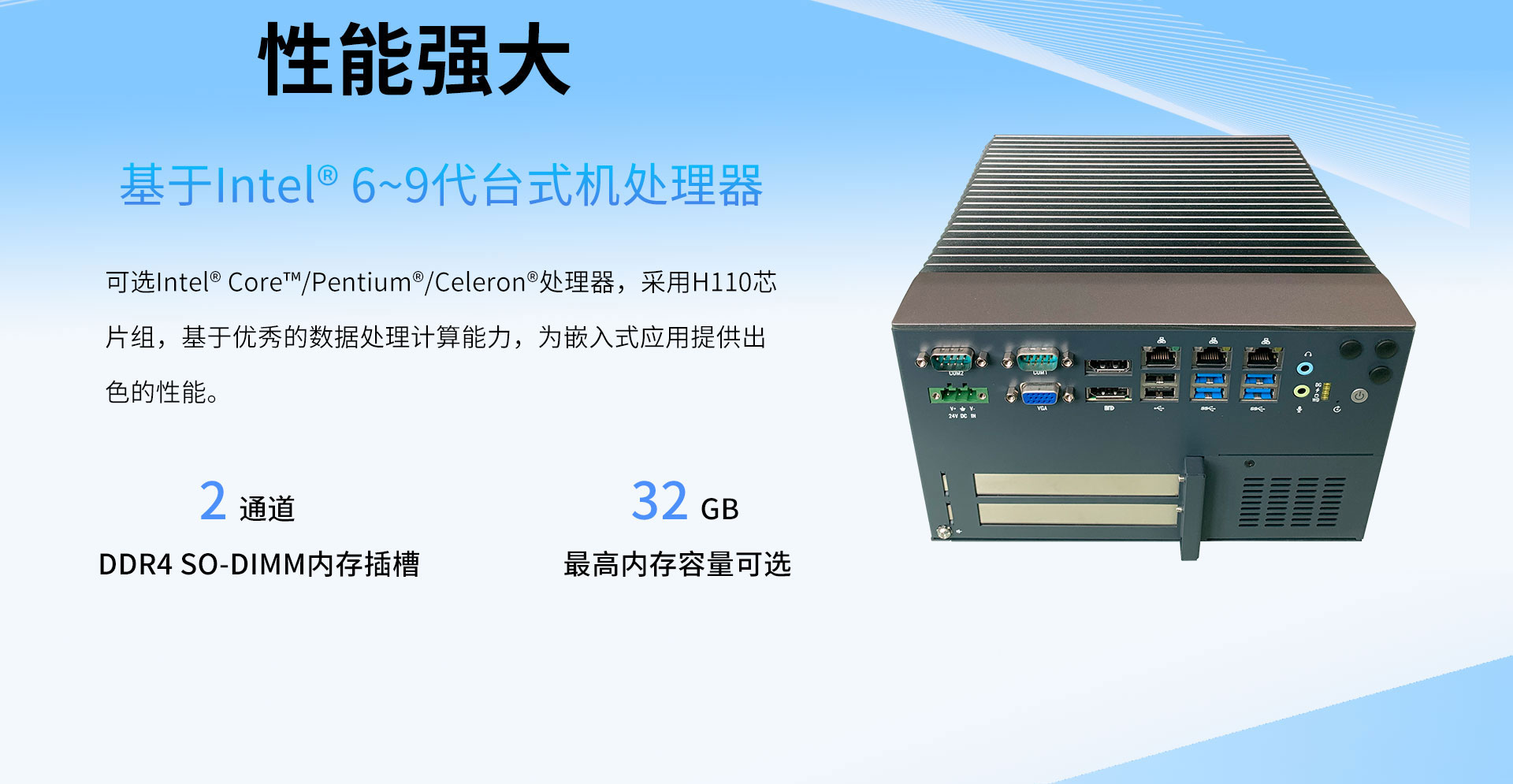

  • 2 x DDR4 SO-DIMM (Max.32GB)
  • 2 DP、1 VGA, 支持双独立显示
  • 3(1 x Intel i210, 2 x Intel i219)
  • 4 USB 3.0, 2 USB 2.0, 1 RS-232, 1 RS-232/485
  • Windows 7(仅第六代支持),Windows 10, centos 7/8, ubuntu 18.04/20.04/22.04
  • 产品详情
  • 规格
  • 应用
  • 下载






规格 Specifications



Specs

Item

  E55N Series

Processor System

CPU

Intel® 6th/7th/8th/9th Gen Processors with LGA1151

Chipset

H110

BIOS

AMI 8MB UEFI

Memory

Sockets

Dual channel 260-PIN DDR4  SO-DIMM

Capacity

Max. 32GB

Display

DP

2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz

VGA

1 x VGA, Max. 1920 x 1080@60Hz

Dual Display

Yes, DP + DP or DP + VGA

Audio

Controller

Realtek ALC662, High Definition Audio. Mic-in, Line-out

Ethernet

LAN

2 x Intel® i210 GbE, 1 x Intel® i219 GbE

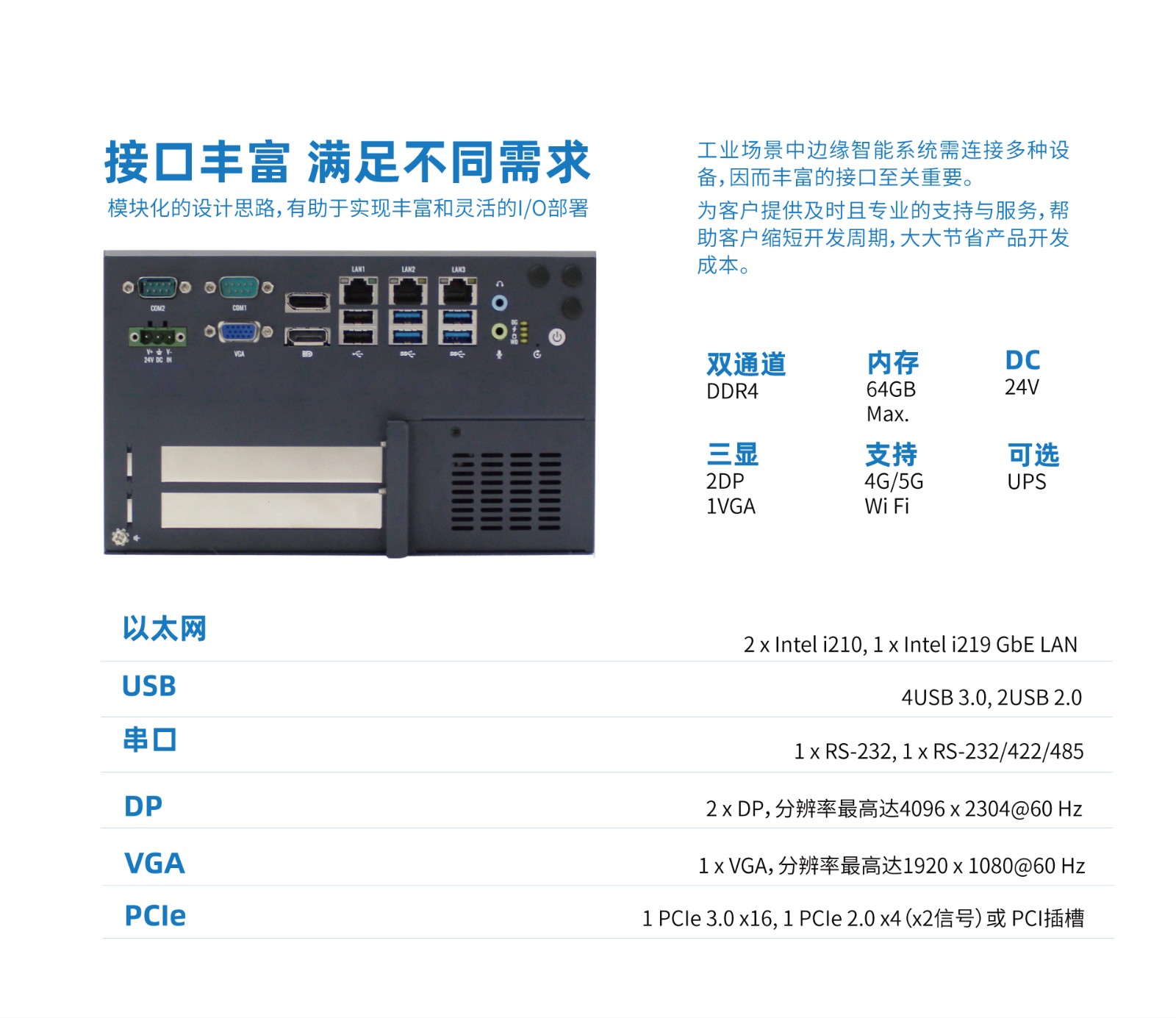

Peripheral Interface

USB

2 x USB 2.0,  4 x USB 3.0

COM

1 x RS-232/422/485, 1 x RS232

LED

4 x LED(SATA/待机/内存/Watchdog)

重启按键

1 x 重启按键

电源开关按键1 x 电源开关按键

Storage

SATA3.0

3 x SATA 3.0

M.2

1 x M.2

Expansion

Mini-PCIe

1 x full-size mini-PCIe, Support WLAN/WWAN module

USIM

1 x USIM, Support 3G/4G LTE

Internal USB

1 x USB 2.0 internal

PCIe/PCI

1 x PCIe 3.0 x16, 1 x PCIe 2.0 x2/PCI

Watchdog

Output/Interval

Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec

Power Supply

DC Input

24V DC

OS

Microsoft Windows

Windows 7(Intel® 6th Gen CPU Only),Windows 10 64Bit

Linux

Yes

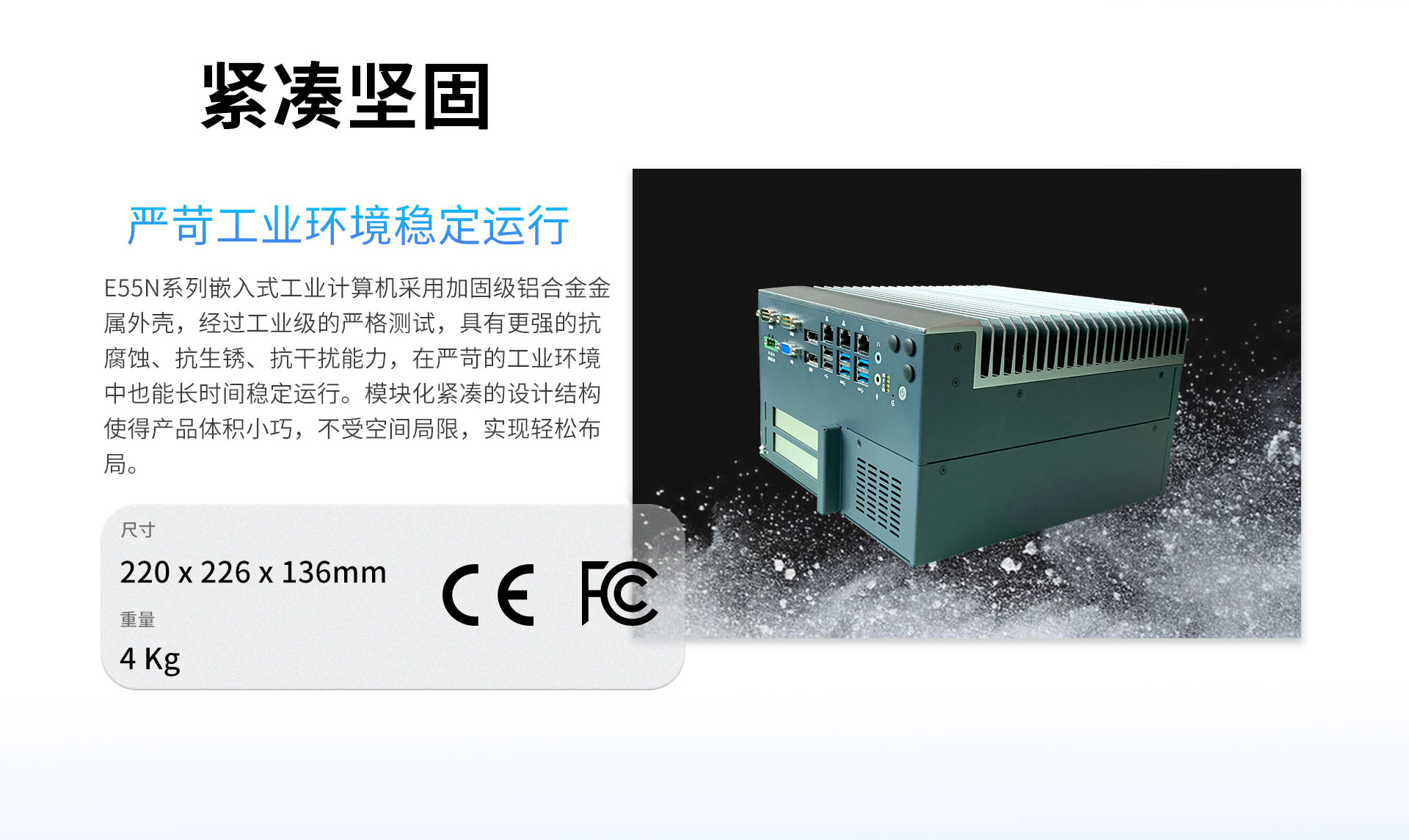

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Desktop/Wall Mounting

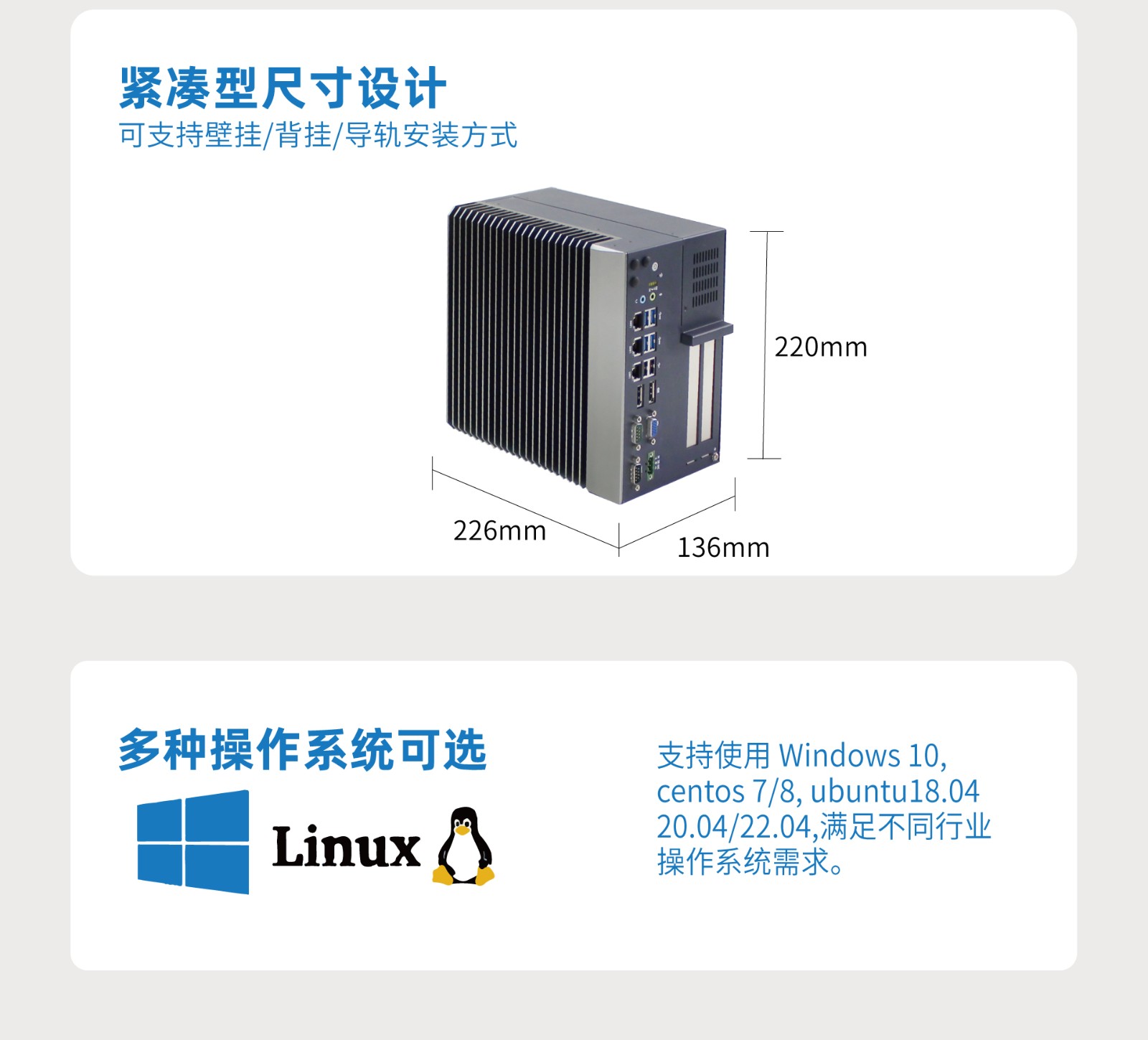

Dimensions

220 x 226 x 136mm (LxWxH)

Weight

4 Kg

Environment

Operating Temperature

0°C~50°C, airflow 0.7m / s

Storage Temperature

-40°C~80°C

Relative Humidity

10~95% @ 40°C ( Non-Condensing )

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration,  5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

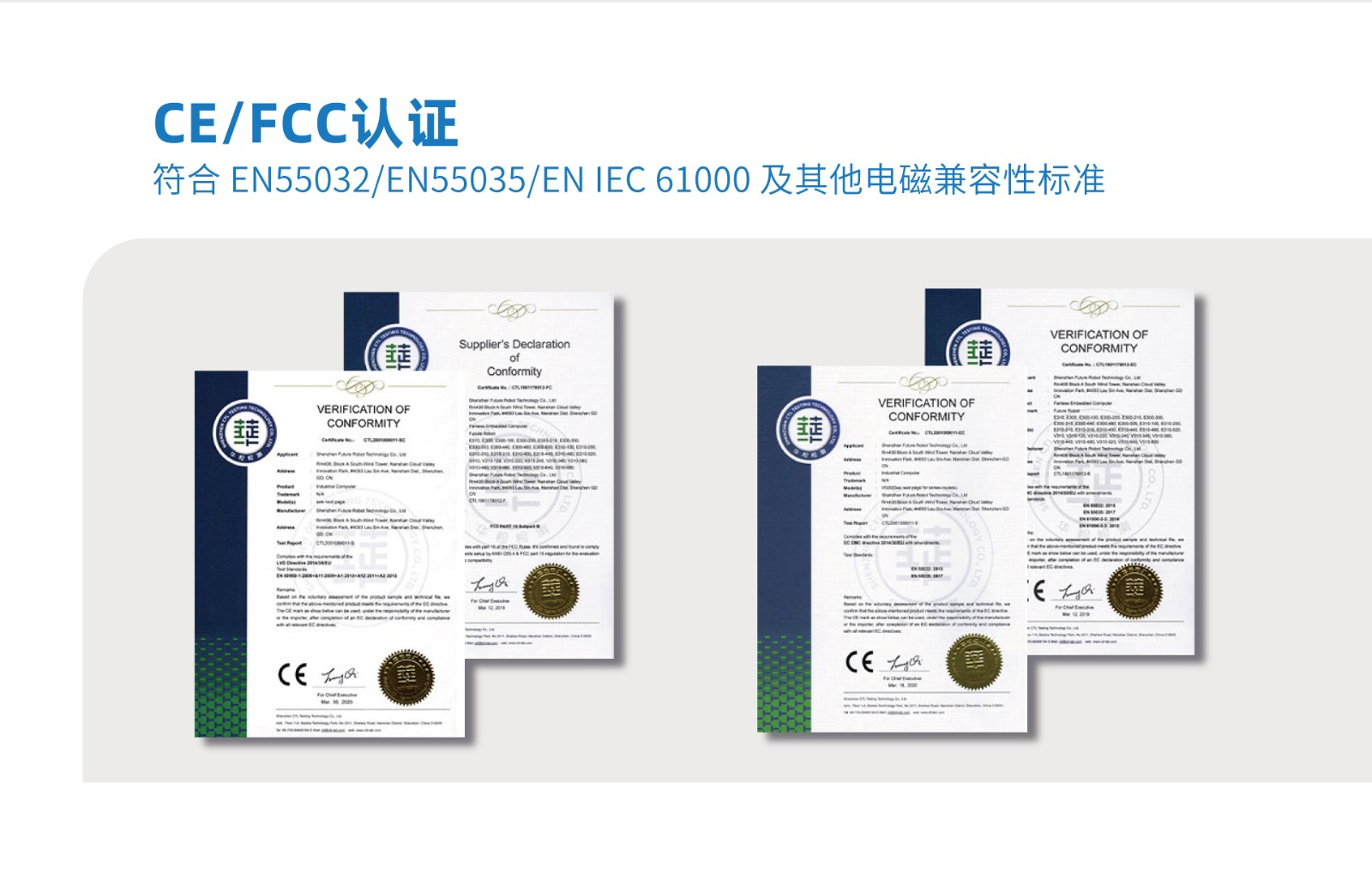

EMC

CE/FCC Class B



尺寸图 Demensions





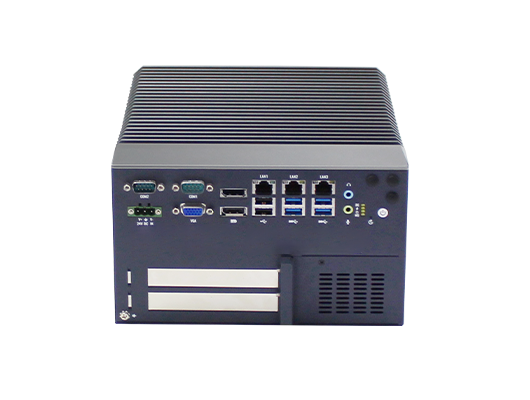

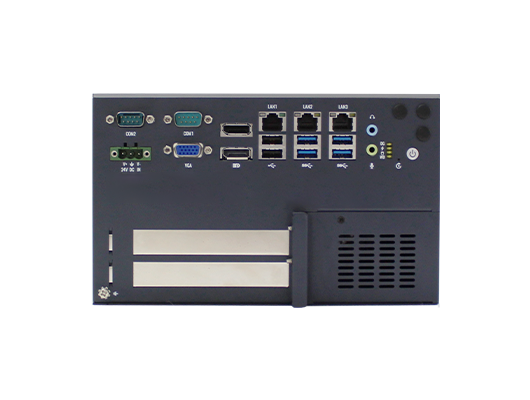

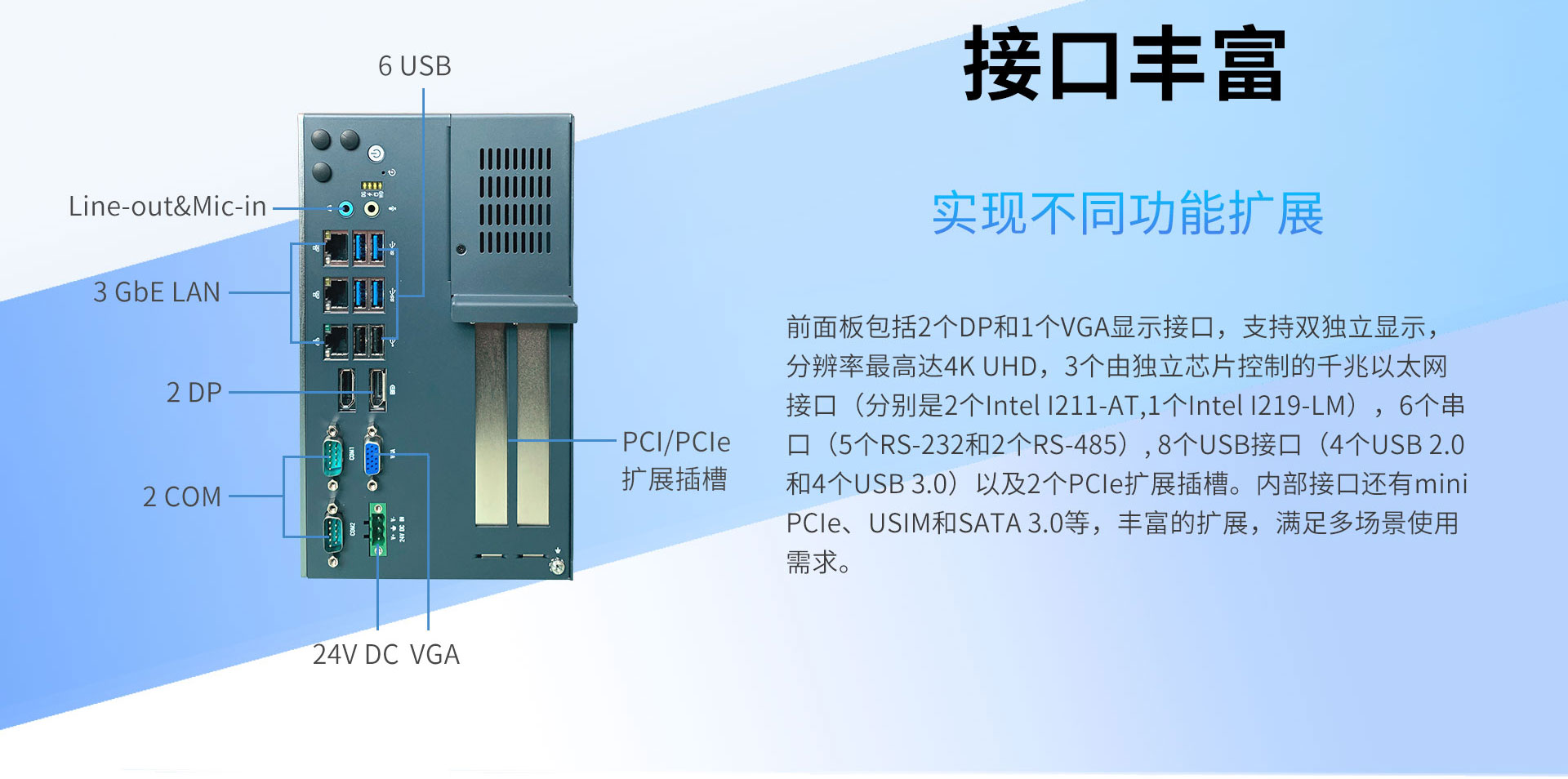

接口图 Interfaces
